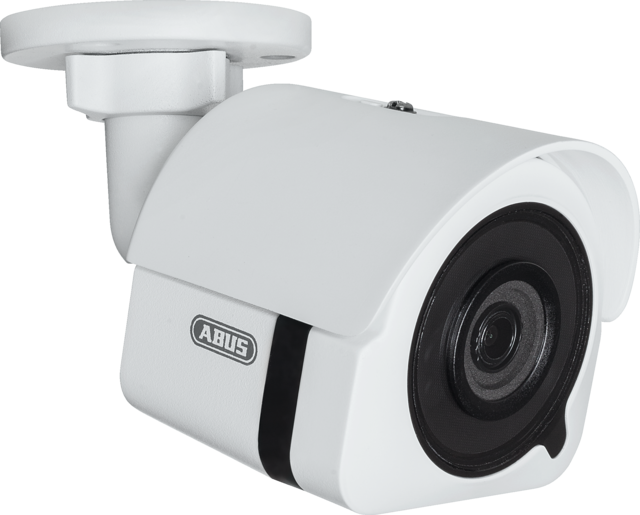

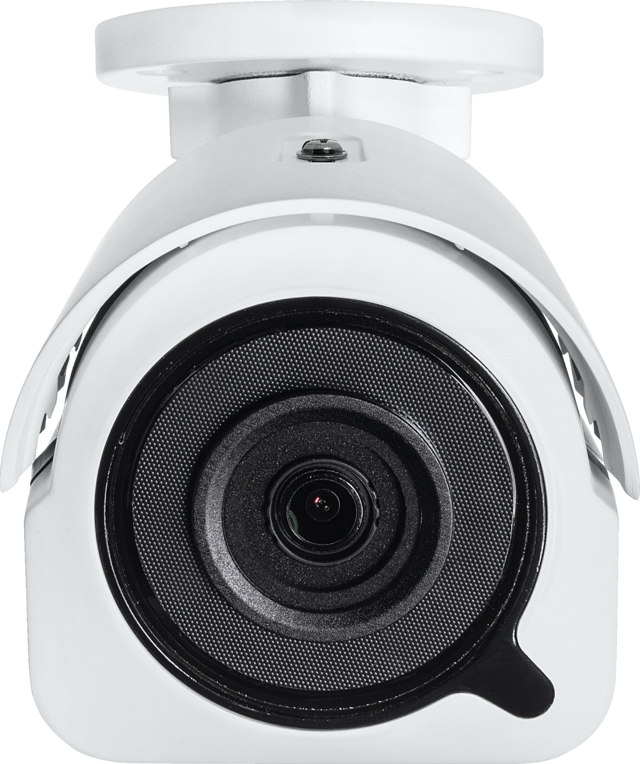

IP Mini Tube 2 MPx (1080p, 4 mm)
IP Mini Tube 2 MPx (1080p, 4 mm)

4043158150902

Product advantages

  • 2 MPx (Full HD 1080p) resolution: 1920 x 1.080 @ 30 fps
  • 4 mm fixed lens
  • Ultra low-light performance for excellent results in low-light environments
  • 120 dB WDR function to compensate for image contrasts
  • Weather protected housing (IP67)
  • IR LEDs (range up to 10m)
  • Supports H.264, H.265, MJPEG (incl. dynamic GOP)
  • microSD card slot for internal data storage
  • 12 V DC & PoE (802.3af)

Downloads

General downloads:

Additional information:

Software:
Installation software:

Firmware:

Specifications
Alarming: E-Mail, NAS, FTP
Aperture at minimum illumination (colour): F1.6
Backlight compensation: WDR, BLC, HLC
Camera type: Mini-Tube
Colour: RAL9003
Compatible with: NVR, Hybrid DVR, IPCam Plus
Compatible with ABUS Link Station: Yes
Compatible with Secvest: Yes
Compatible with wAppLoxx: Yes
Compatible with wAppLoxx Pro: Yes
Connections: 1 x RJ45, 1 x DC
DC voltage supply: 12 (+/-10 %) V
Day/night switching: ICR/Color/B/W
Design: Tube
Dimensions: (LxWxH) 155x74x74 mm
Dynamic range (WDR): 120 dB
Electronic shutter: 1/3 - 1/100000 s
Encryption: HTTPS
Focal length: 4 mm
Frame rate: 1/16, 1/8, 1/4, 1/2, 1, 2, 4, 6, 8, 10, 12, 15, 16, 18, 20, 22, 25, 30 fps
Functions: Scene Change Detection
Height: 74 mm
Horizontal viewing angle: 87 °
ICR day/night function: Yes
IP protection class: 67
IR LEDs: Yes
IR range (up to): 10 m
Image enhancement: WDR, BLC, HLC, 3D DNR, Vertical Display
Image sensor: 1/2.8" Progressive Scan CMOS
LAN network access: RJ45 10M/100M self-adaptive
Language of instructions: DE, UK, FR, NL, DK
Length: 155 mm
Lens: Fix
Lens mount: M12
Max. humidity: 95 %
Max. operating temperature: 60 °C
Max. resolution @ frame rate: 1920 x 1080 @ 30 fps
Microphone: No
Min. operating temperature: -30 °C
Minimum illumination (IR): 0 lx
Minimum illumination (colour): 0,009 lx
Motion detection: 8 zones
Net weight: 0,5 kg
Network access: RJ45
Network camera protocols: IPv4/v6, HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DynDNS, NTP, RTSP, TCP, UDP, DHCP, ONVIF Profile S, ONVIF Profile G, ABUS Server, Secvest Link
Noise reduction: 3D DNR
Number of IR LEDs: 10
Number of users: 32
ONVIF: Profile G, S, T
OSD language: DE, UK, FR, NL, DK
Other functions: Auto Backup Recording, Secvest Connectivity
Pixels (effective): 1920(H) x 1080(V) pixel
PoE standard: IEEE 802.3af
Power consumption: 550 mA
Private zones: 4
Resolution: 2 MP
Resolution modes: Stream 1: 1.920 x 1.080 @ 25 fps, Stream 2: 640 x 480 @ 25 fps, Stream 3: 1.920 x 1.080 @ 25 fps
Simultaneous network access: 6
Storage medium: microSD card, 256 GB (opt.)
Supported browsers: IE10, IE11, Mozilla Firefox 30.0+, Chrome 31.0+
Technology: IP
Vertical viewing angle: 45 °
Video Content Analysis (VCA): Tripwire Detection, Intrusion Detection
Video compression: Stream 1: H.264, H.265, Dynamic GOP, Stream 2: H.264, H.265, MJPEG, Stream 3: H.264, H.265, MJPEG
Video network bandwidth: 32 kBit/s - 16 MBit/s
Video system: IP
White balance: AWB, Manual
Width: 74 mm
