Secvest Touch Wireless Alarm System

Name: Secvest Touch Wireless Alarm System
Brand: ABUS August Bremicker Söhne KG

Description

FUAA50500

Design meets security
The Secvest Touch wireless alarm system's control panel features an elegant touchscreen interface that meets even the highest design standards. Its capacitive user interface can be backlit constantly or only when touched. An integrated light sensor ensures that the backlighting adjusts dynamically according to the lighting conditions. This ensures optimal readability of the display at all times, regardless of the lighting conditions. The alarm also features a cleaning mode, which allows the cover to be cleaned without accidentally triggering or setting off other functions.

Proven all-round protection
In addition to classic alarm functions for protection against intrusion, fires, flooding and emergencies, it provides a variety of modern security functions: Electronic access control systems are integrated directly into the alarm system. This allows users to completely monitor all movements in the building at any given time. Live video verification is also possible with the Secvest Touch wireless alarm system. Users can integrate up to six IP cameras into the system and can easily pull up live streams at any time using or the app. The Secvest Touch wireless alarm system's mechatronic detectors provide the kind of unique, dual protection against intruders that you can only get from ABUS.

A large portfolio of detectors and a wide variety of control options
48 wireless and four wired detectors provide not only the highest security for up to 50 users, but also give you the option of automating operations and simulating your presence when you're away (on holiday, for example). A defining feature is the ability to control the system worldwide using the Android/iOS app. A variety of additional options such as code entry, proximity chip key or remote control also cover a wide range of different operating preferences.

For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

Awards & Partners

Product advantages

Proven all-round security in a new, elegant design
Modern touchscreen interface with capacitive buttons
Integrated light sensor that dynamically adjusts the backlighting
Easy to operate using the app (Android/iOS), the integrated web browser, the alarm control panel or one of the many user-defined control options available, such as remote control, chip key or code entry
Integration of electronic access control systems
Video verification via the app with up to 6 ABUS IP cameras
Active intrusion protection due to the combination with additional mechatronic wireless window/door locks
Up to 48 individually identifiable wireless detectors, 4 wired detectors, 8 control panels, 50 remote controls
Possible to switch to monitoring stations via monitoring station protocols, integrated dialler
VdS Home certified and EN 50131-1 Level 2

Downloads

General downloads:

Declarations of conformity:

Declaration of conformity

Certificates:

Additional information:

Software:
Installation software:

ABUS IP Installer V9.5.3

Firmware:

FUAA50XXX - Secvest Software V3.01.31

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging

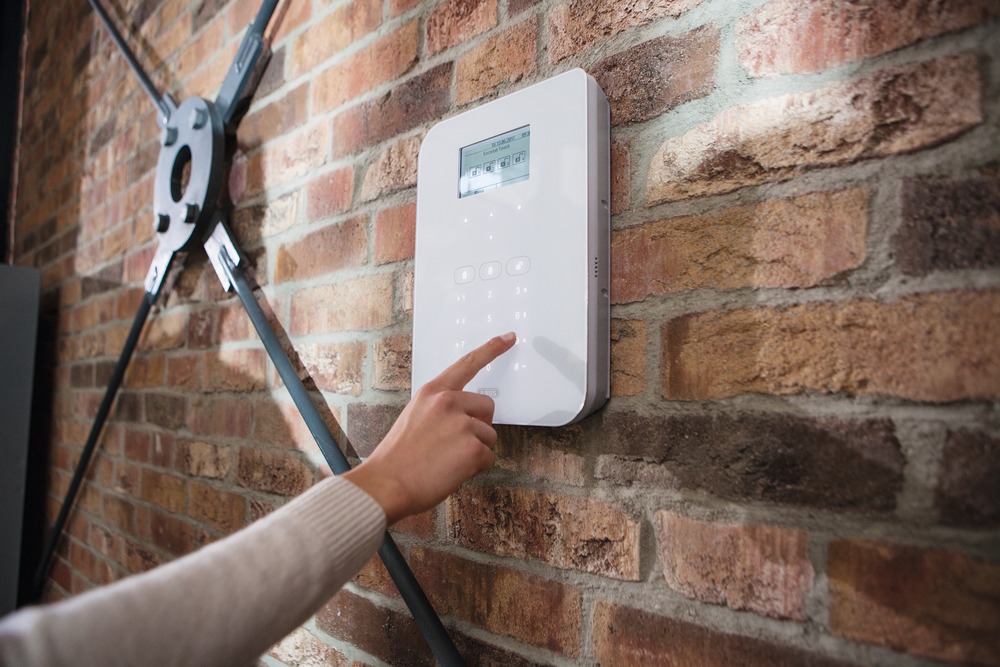

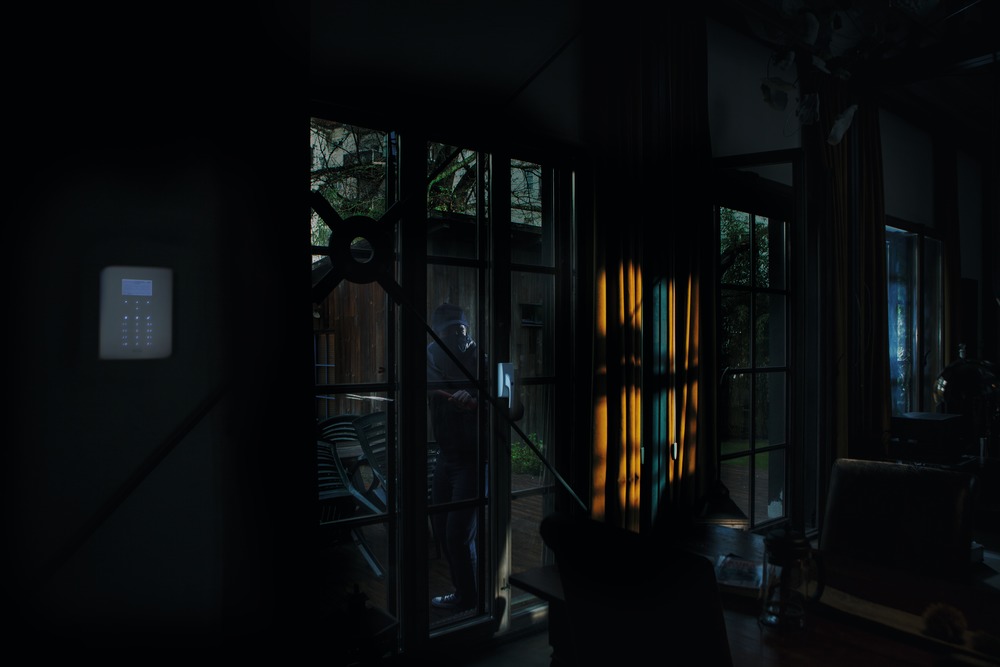

Secvest Wireless Alarm System Example of application

Specifications

AC voltage supply:	230 V
Access protection:	Yes
Active intrusion protection:	With mechatronic components (permanent monitoring)
Backup power supply:	Yes
Battery - type:	7,4V 2500mAh 18,5Wh (FUBT50000)
Certifications:	VdS Home, EN 50131 Grad 2
Communication/alarm:	Monitoring station, voice, SMS, email, push notification
Connections:	230 V AC / 13,8 V DC screw terminal, a/b screw terminal, siren connection, 2-4 wired zones, 2 outputs
DC voltage supply:	13,8 V
Depth:	46 mm
Dimensions:	(WxHxD) 205x285x46 mm
Display:	Display
Duplex antenna technology:	Yes
Environmental class:	II
Event memory:	Yes
Height:	285 mm
Housing material:	ABS
Installation location:	Ambient conditions adapted to optimal transmission power
Integrated siren:	Yes
Language of instructions:	DE, EN, FR, NL, DK, IT
Length:	46 mm
Max. backup power supply duration:	24 h
Max. number of control units:	8
Max. operating temperature:	40 °C
Max. receiving range (building):	30 m
Max. receiving range (free field):	100 m
Max. transmission range (building):	30 m
Max. transmission range (free field):	100 m
Menu guidance:	Voice-activated
Min. operating temperature:	-10 °C
Modulation:	FM
Net weight:	1,24 kg

Network access:	Ethernet
Network protocols:	HTTPS
Number of control units:	8
Number of events:	600
Number of remote controls:	50
Number of users:	50
Number of virtual IP zones:	6
Number of wired zones:	2 x CC or 4 x FSL
Number of wireless zones:	48
OSD language:	DE, EN, FR, NL, DK, IT, ES, SE, PL, RU
Operation:	Panel: via Secvest key, wireless remote control, extra wireless door lock, proximity chip key, wireless key switch and wireless control panel / Wireless: via web server, mobile application, telephone
Outputs:	32 wireless, 4 wired
PSTI conformity given:	No
PSTI conformity required:	Yes
PSU:	Integrated or external
Programming:	Directly at the alarm control panel or via web server
Protocols:	NSL: Fast format, contact ID, SIA (analogue and IP); maintenance: Scancom, Scanfast, Tunstall
Radio alarm bandwidth:	Narrow band
Radio frequency:	868,6625 MHz
Radio power:	10 mW
Remote configuration:	Yes
Sabotage monitoring:	Yes
Security level:	2
Software version:	3.01.31
Standard:	EN50131-1 Grad 2
Sub-areas/monitoring areas:	4
Switching outputs:	4
Video verification:	Yes, in connection with e.g. TVIP41550, IPCB42500, IPCB42501, IPCB62500, IPCB72500, IPCB72501
Voltage monitoring:	Yes
Width:	205 mm
