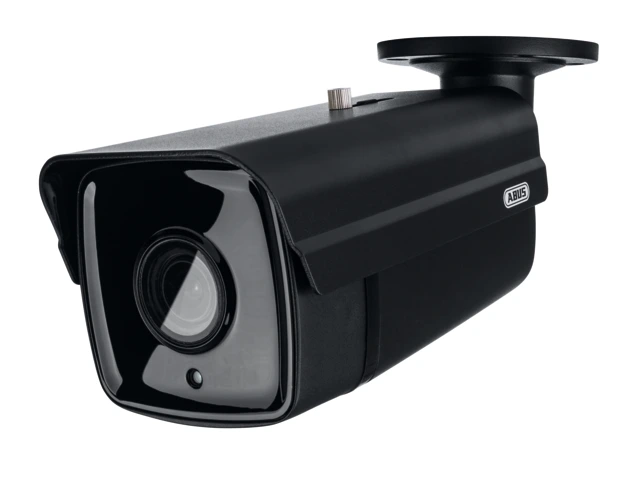

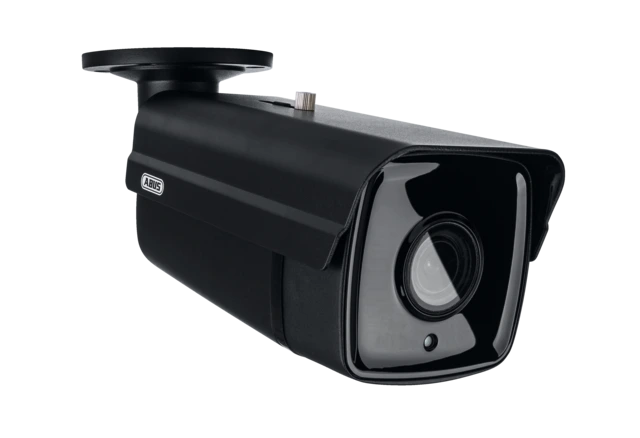

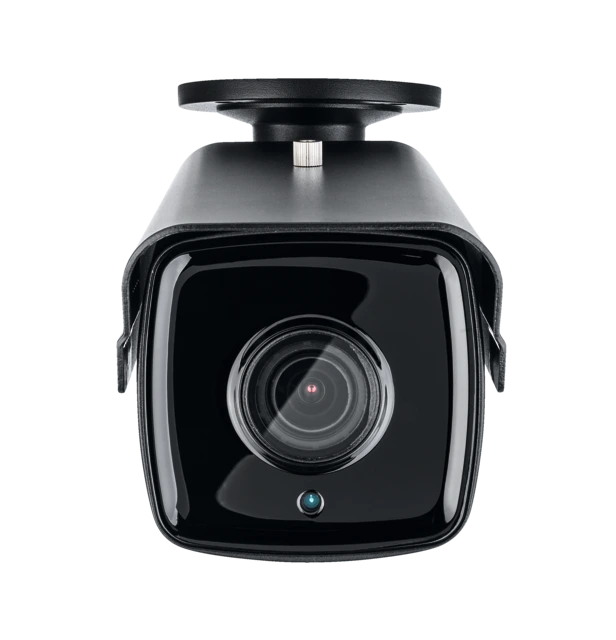

IP Tube 8 MPx Black (4K, 2.8 - 12 mm)

Description

4K 24/7 outdoor surveillance
The IP Tube provides video streams in 8 MPx resolution with up to 20 fps. The dust- and water-resistant IP67 housing is well suited for outdoor use. Due to integrated IR LEDs with a range of up to 50m, the camera can be used day and night. Access to the camera is possible at any time via app.

Best overview
The motor zoom lens with a focal length of 2.8 - 12 mm provides a horizontal viewing angle of 35°-115 °. Focal length and focusing can be adjusted conveniently and precisely remote via the web interface.

Recording and compatibility
The recording can be done either on an ABUS recorder, 3rd party video management software or locally on a microSD card. Furthermore, the camera is compatible with the ABUS Secvest alarm center and the ABUS access control system wAppLoxx.

Comfortable installation

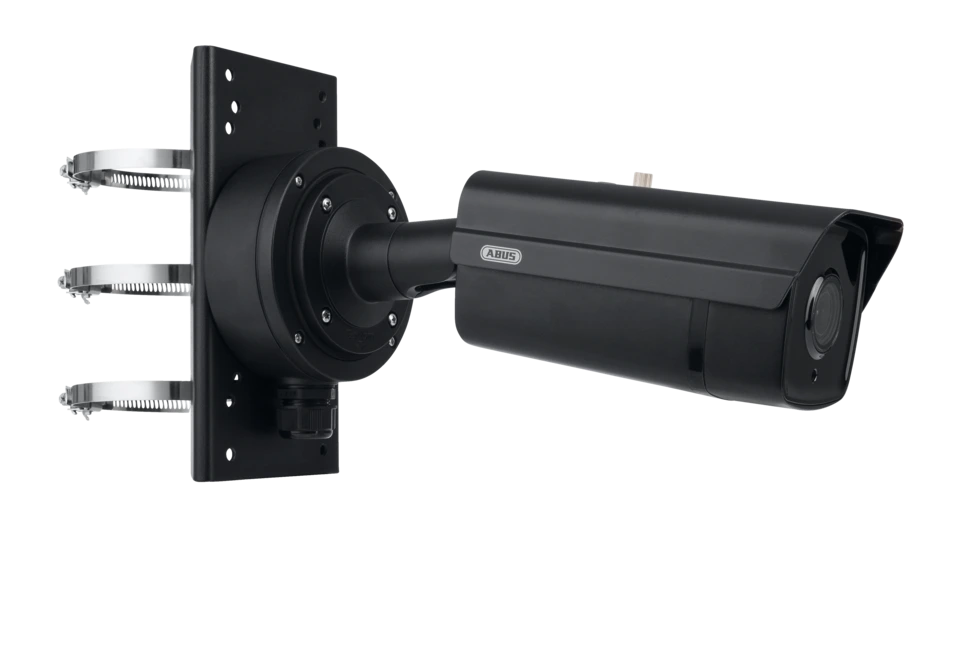

The IP Tube is mounted on the ceiling or optionally on the wall. We recommend the ABUS installation box (TVAC31350X), which allows a protected cabling to wall or ceilings. The free “ABUS IP Installer” software is available for simple setup in the network. The software finds the camera quickly and easily within the network and supports during the installation process.

Note: The camera does not come with a power supply, as it can be powered via PoE.

For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

Product advantages

  • 8 MPx (4K) Resolution: 3.840 x 2.160 @ 20 fps
  • 2.8 - 12 mm motor zoom lens
  • Ultra low-light performance for excellent results in low-light environments
  • 120 dB WDR function to compensate for image contrasts
  • Vandalism and weather protected housing (IK10 & IP67)
  • IR LEDs (range up to 50m)
  • Supports H.264, H.265, MJPEG (incl. dynamic GOP)
  • microSD card slot for internal data storage
  • 12 V DC & PoE (802.3at)
  • colour black

Downloads

General downloads:

Additional information:

Software:
Firmware:

Installation software:

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging

Network Tube Camera
Network Tube Camera
Specifications
Alarm generation: E-Mail, NAS,FTP
Alarm input (NO/NC): 1
Alarm output: 1
Aperture at minimum illumination (color): F1.4
Application purpose: General surveillance
Article program: Professional
Audio: 2-Way Audio
Backlight compensation: WDR, BLC, HLC
Camera type: Tube
Colour: RAL9011
Compatible with ABUS Link Station: Yes
Compatible with Secvest: Yes
Compatible with wAppLoxx: Yes
Compatible with wAppLoxx Pro: Yes
Connections: 1 x RJ45, 1 x DC, 1 x video output, 1 x audio output, 1 x audio input, 1 x alarm input, 1 x alarm output
Construction type of device: Tube
Current consumption: 1,500 mA
DC power supply: 12 (+/-10 %) V V
Dimensions: 390x160x160 mm
Dynamic range (WDR): 120 dB dB
Electronic shutter: 1/3 - 1/100000 s
Encryption: HTTPS
Focal length: 2,8 – 12,0 mm
Frame rate: 1/16, 1/8, 1/4, 1/2, 1, 2, 4, 6, 8, 10, 12, 15, 16, 18, 20, 22, 25, 30 fps
Height: 160 mm
Horizontal viewing angle: 35-115 °
ICR day/night function: Yes
IR LEDs: Yes
IR range (up to): 50 m
Image optimization: WDR, BLC, HLC, 3D DNR
Image sensor: 1/2.5" Progessive Scan CMOS
Language Manual: DE, UK, FR, NL, DK
Language OSD: DE, UK, FR, NL, DK
Language Packaging: DE, UK, FR, NL, DK, IT
Length: 390 mm
Lens: Motor-Zoom
Max. Air humidity: 95 %
Max. Operating temperature: 60 °C
Max. Resolution @ frame rate: 3840 x 2160 @ 20 fps
Microphone: No
Min. operating temperature: -30 °C
Minimum illumination (IR): 0.1 lx
Minimum illumination (color): 0.01 lx
Motion detection: 8 zones
Net weight: 1.71 kg
Network bandwidth Video: 32 kBit/s - 16 MBit/s
Network camera protocols: IPv4/v6, HTTP, HTTPS, FTP,SMTP, UPnP, DNS, DynDNS,NTP, RTSP, TCP, UDP, DHCP,ONVIF Profile S, ONVIF Profile G, ABUS Server,Secvest Link
Network connection: RJ45
Network connection LAN: RJ45 10M/100M self-adaptive
Number of IR LEDs: 4
Number of streams: 3
Number of users: 32
Optical zoom: 4,2 x
Other functions: Auto Backup Recording,Secvest Connectivity
PSTI conformity needed: No
Pixels (effective): 3840(H) x 2160(V) Pixel
PoE Standard: IEEE 802.3at
Power consumption: 18 W
Privacy zones: 4
Product group: Camera
Protection class IK: 10
Protection class IP: 67
Radio functions: Scene Change Detection
Resolution: 8 MP
Resolution modes: Stream 1: 3.840 x 2.160 @ 20 fps, Stream 2: 640 x 480 @ 25 fps, Stream 3: 1.280 x 720 @ 25 fps
Simultaneous network access: 6
Supported browsers: IE10, IE11, Mozilla Firefox,30.0+, Chrome 31.0+
Vertical angle of view: 19 – 60 °
Video Content Analysis (VCA): Tripwire Detection,, Intrusion Detection
Video compression: Stream 1: H.264, H.265, Dynamic GOP, Stream 2: H.264, H.265, MJPEG, Stream 3: H.264, H.265, MJPEG
Video system: IP
WEEE group: 09
White balance: AWB, Manuell
width: 160 mm
