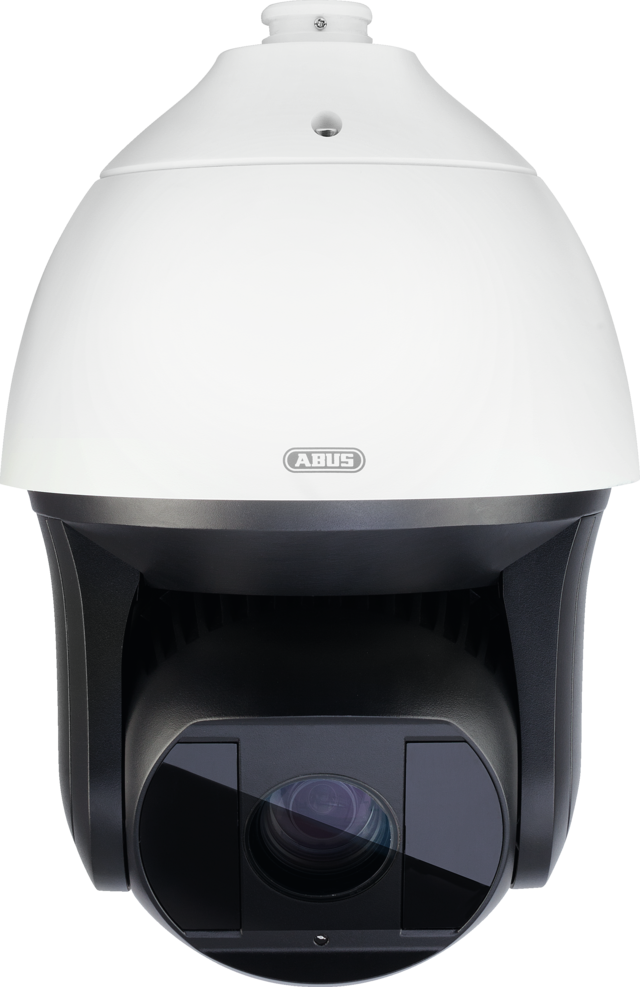

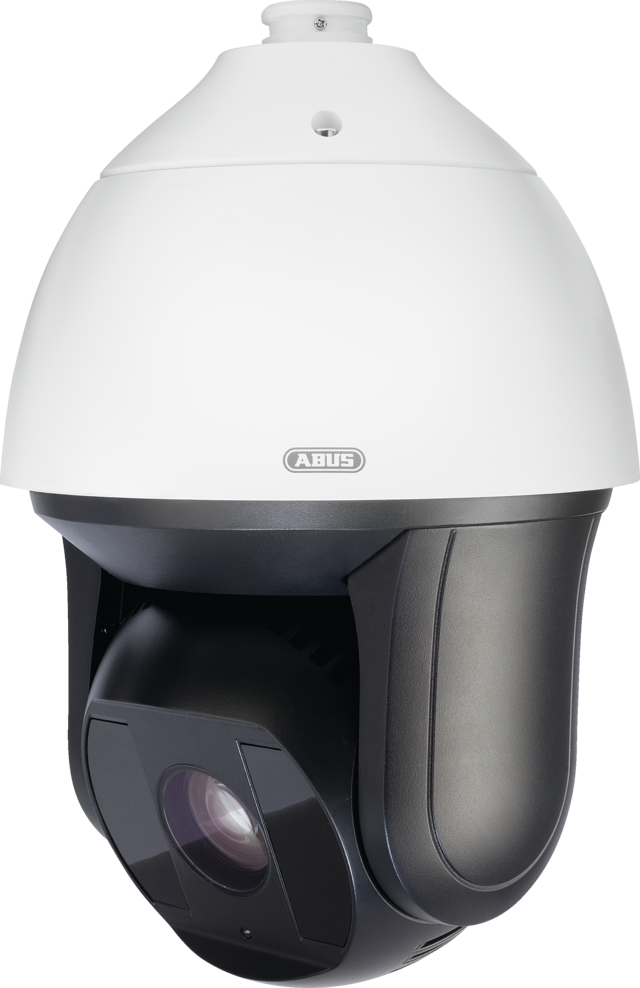

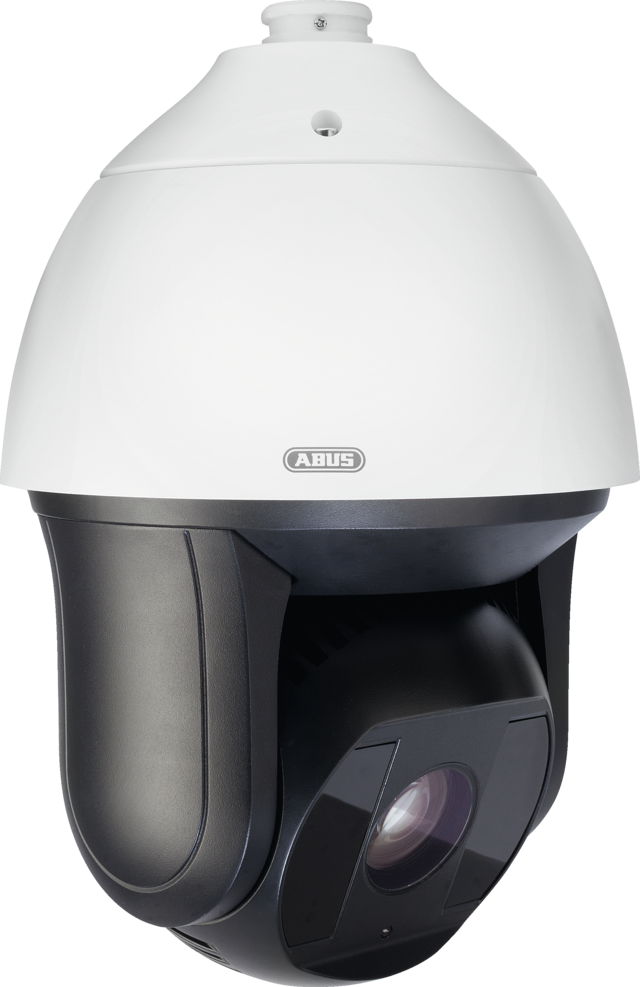

IP PTZ 4 MPx (32x)


PTZ function: pan, tilt, zoom
The precise control mechanism allows fast and accurate 360° control of the camera. The 32x optical autofocus motor zoom provides sharp detail even over long distances - people and objects are reliably detected. The ultra low-light technology and the high-performance WDR function capture such important details in dark but also in bright areas.

Automated guard tour
Predefined preset positions allow fast startup of individual tours. This allows the camera to independently carry out guard tours.

Comfortable installation
The IP PTZ Dome is mounted on the ceiling or on the wall. We recommend the installation box TVAC31241 for wall mounting and the PoE Injector TVAC25005 for powering via High-PoE (60W). The free “ABUS IP Installer” software is available for simple setup in the network. The software finds the camera quickly and easily within the network and supports during the installation process.

Note: The camera does not come with a power supply, as it can be powered via PoE.

The effective IR range will depend on the installation location. If there are surfaces that absorb light or no objects that reflect IR light in the field of view, the IR range will be reduced and/or the video image will be too dark. Reflective objects in the immediate vicinity of the camera (e.g. roof gutter or wall) may also result in the reflection of IR light, which can disturb the image.

For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

Awards & Partners
This product is compatible with the ABUS Link Station App.
This product is compatible with the ABUS Link Station App.
Awards & Partners

Product advantages

  • 4 MPx Resolution: 2.560 x 1.440 @ 25 fps
  • 32x motor zoom lens (4.8-153 mm)
  • Ultra low-light performance for excellent low-light environments
  • 120 dB WDR function to compensate for image contrasts
  • Electronic Image Stabilizer (EIS)
  • Weather protected housing (IP66)
  • IR LEDs (range up to 150m)
  • Supports H.264, H.265, MJPEG (including dynamic GOP)
  • microSD card slot for internal data storage
  • 24V AC & PoE (802.3bt)


We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging
AC voltage supply: 24 (+/-10 %) V
Alarm input (NO/NC): 2
Alarm output: 1
Alarming: E-Mail, NAS, FTP, Relay
Aperture at minimum illumination (colour): F1.2 – F4.4
Audio: 2-Way Audio
Backlight compensation: WDR
Camera type: PTZ
Colour: RAL9003
Compatible with ABUS Link Station: Yes
Compatible with Secoris: Yes
Compatible with Secvest: Yes
Compatible with wAppLoxx: Yes
Compatible with wAppLoxx Pro: Yes
Day/night switching: Electromechanically removable IR cut filter (ICR), colour/B&W
Depth: 185 mm
Design: PTZ
Digital zoom: 16 x
Dynamic range (WDR): 120 dB
Electronic shutter: 1 - 1/30000
Encryption: HTTPS
Focal length: 4,8 – 153 mm
Functions: Smart Tracking
Gross weight: 4,8 kg
Height: 330 mm
Horizontal viewing angle: 2,0 – 54,3 °
Housing material: Metal
ICR day/night function: Yes
IP protection class: 66
IR LEDs: Yes
IR range (up to): 150 m
Image integration: 2 x - 8 x
Image sensor: 1/2.8" Progressive Scan CMOS
LAN network access: RJ45
Lens: Motor-Zoom, Autofocus
Max. humidity: 90 %
Max. operating temperature: 60 °C
Max. resolution @ frame rate: 2560 x 1440 @ 25 fps
Max. speed: 120°/s (pan), 80°/s (tilt)
Microphone: No
Min. operating temperature: -30 °C
Minimum illumination (B/W): 0,001 lx
Minimum illumination (IR): 0 lx
Minimum illumination (colour): 0,005 lx
Motion detection: Yes
Net weight: 3,6 kg
Network access: RJ45
Network camera protocols: TCP/IP, UDP, IPv4/v6, HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DynDNS, ABUS Server, NTP, RTSP, DHCP, SNMP, QoS, 802.1X
Noise reduction: 3D-DNR
Number of patrols: 8
Number of presets: 300
Number of streams: 3
Number of users: 32
Optical zoom: 32 x
Other functions: Smart Tracking
Pan/tilt range: 360°/-15°~90°
PoE standard: IEEE 802.3bt
Power consumption: 30 W
Private zones: 24
Resolution: 4 MP
Resolution modes: Stream 1: 2.560 x 1.440 @ 25 fps / 1.920 x 1.080 @ 50 fps, Stream 2: 704 x 576 @ 25 fps, Stream 3: 1.920 x 1.080 @ 25 fps
Storage medium: microSD card, 256 GB (option)
Technology: IP
Video Content Analysis (VCA): Tripwire, Intrusion Detection, Region Enter, Region Exit
Video compression: Stream 1: H.264, H.265, Dynamic GOP, Stream 2: H.264, H.265, MJPEG, Stream 3: H.264, H.265, MJPEG
Video network bandwidth: 32 kBit/s – 16 MBit/s
Video system: IP
White balance: ATW, manual
Width: 185 mm
