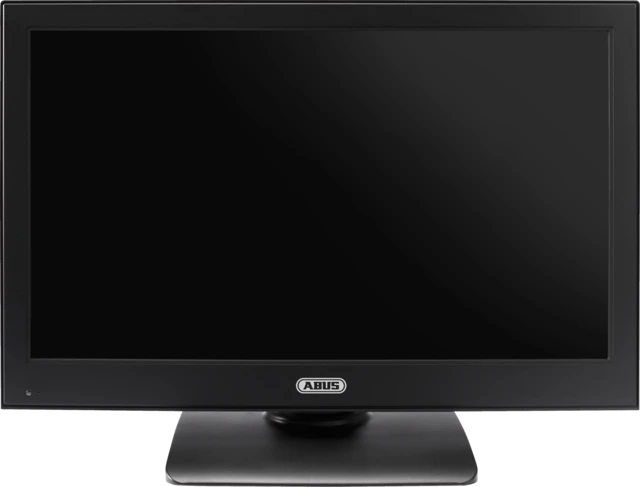

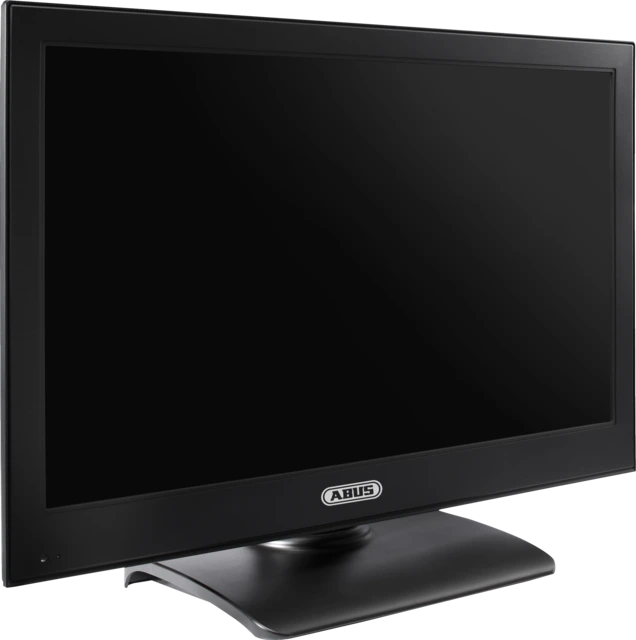

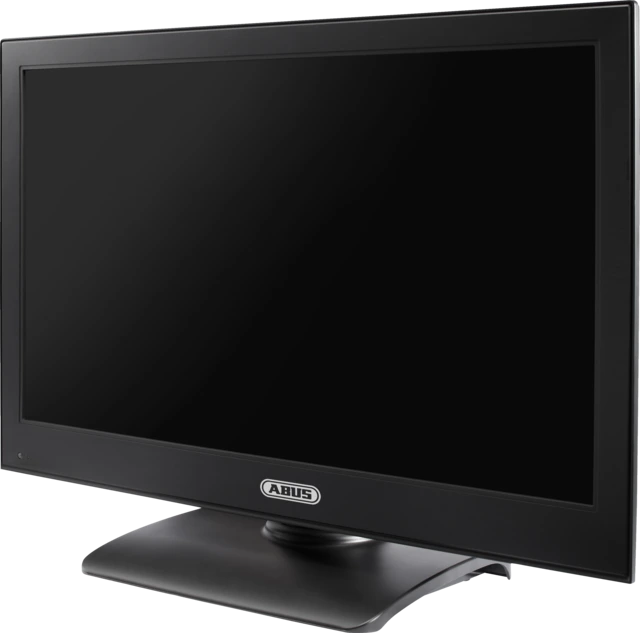

23.6" LED Monitor

Description



Detailed surveillance pictures in Full HD
With its high resolution in HD1080p, outstanding picture fidelity and fast reaction time, the monitor produces accurate surveillance pictures. The LED backlighting ensures optimum contrast and an extremely realistic color display. The monitor is also equipped with two audio inputs, as well as automatic signal detection and a 3D comb filter for a softer and clearer image without the annoying dot-crawl effect.

Versatile connections

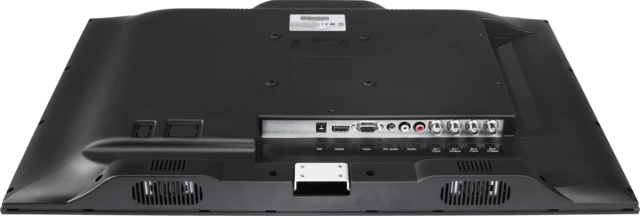

Four connections ensure great flexibility when connecting the monitor to recorders, cameras, etc. The HDMI connection makes the monitor perfect for displaying Full HD pictures. Another VGA connection as well as two BNC inputs provide additional options - which makes the monitor a suitable component for versatile surveillance systems.

Professional HD surveillance
Thanks to Full HD resolution (1920 x 1080 pixel), the monitor produces high resolution images for professional surveillance. Furthermore, high-quality industry components ensure the monitor operates reliably for 24/7 use. The efficient LED display ensures very low power consumption.

Easy installation
VESA standard mounts can be used to fix it to a wall or ceiling. This makes installation fast and easy.

For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

Product advantages

  • Full HD resolution: 1920 × 1080 pixels
  • Fast response time (5 ms)
  • LED background illumination: Superior colour display and contrast
  • Graphical on-screen display (OSD)
  • Connections: HDMI, VGA, 2 × BNC, 2 × cinch (audio), PC audio
  • Integrated loudspeaker
  • Low power consumption
  • For wall and ceiling installation (with VESA mount)

Downloads

General downloads:

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging

Specifications
Brightness: 300
Color levels: 16.7
Comb filter: 3D
Connections: 1 x HDMI, 1x VGA, 2 x BNC, 1 x audio (3.5 mm jack), 2 x chinch audio, 2 x BNC-Out
Contrast ratio: 10.000:1
Current consumption: 3,000 mA
DC power supply: 12 V
Dimensions: 580 x 407 x 75 mm
Display surface: matte
Frequency range: 30 − 80KHz (H) / 50 − 75Hz (V) GHz
Gross weight: 6.2 kg
Height: 425 mm
Housing material: Plastic
Image format: 16:10
Input: 1 x HDMI, 1 x VGA, 2 x BNC, 1 x audio (3.5mm jack), 2 x chinch audio
Loudspeaker: 2 x 1,5 W
Max. Air humidity: 85 %
Max. Operating temperature: 40 °C
Min. operating temperature: 0 °C
Monitor type: LED
Net weight: 6 kg
Power consumption: 25 W
Product group: Accessories
Response time: 5 ms
Screen diagonal: 23.6 in
Signal detection: Automatic
Video output: 2 x BNC
Video system: PAL / NTSC
Viewing angle horizontal/vertical: 160° x 160°
WEEE group: 09
width: 580 mm
