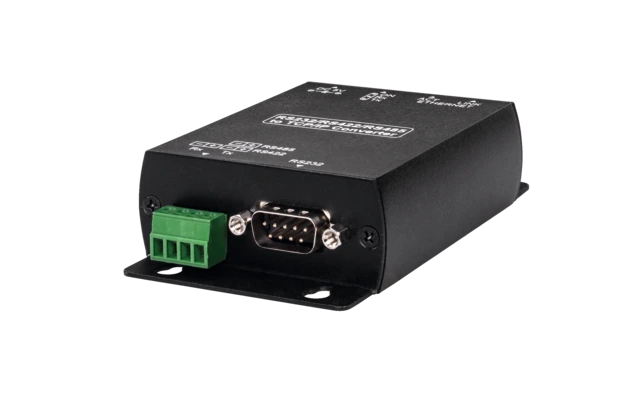

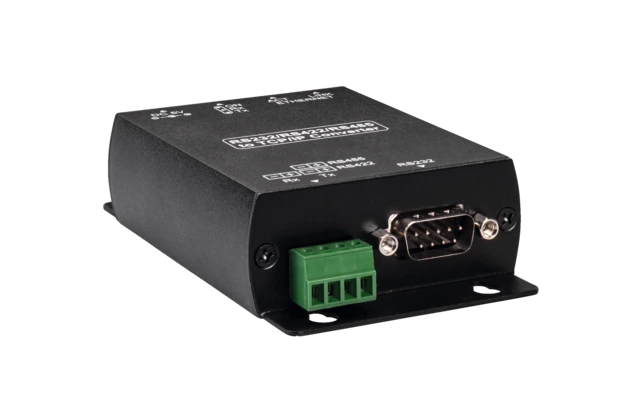

Interface converter (RS232/RS485/RS422 -> TCP/IP)

Description

This interface converter is a serial IP converter, also called Terminal Server or Device Server. This product enables remote access, control and management of any serial devices over an IP network or the Internet. It is used to convert serial asynchronous data from an RS232, RS422 or RS485 port to TCP / IP or UDP packets, allowing for authentic serial communication over the Ethernet.

For safe and proper operation, this equipment must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure continuous smooth operation with the latest security updates and new functions.

Product advantages

  • Universal data converter makes your serial terminal network-ready
  • Supports the most common serial interfaces RS232, RS422 and RS485
  • Supports data baud rade 1200 to 115200 bps
  • Supports auto MDI / MDIX
  • Supports three operation modes TCP Server, TCP Client and UDP Mode

Downloads

General downloads:

Specifications
Baud rate: 1200 - 115200 bps

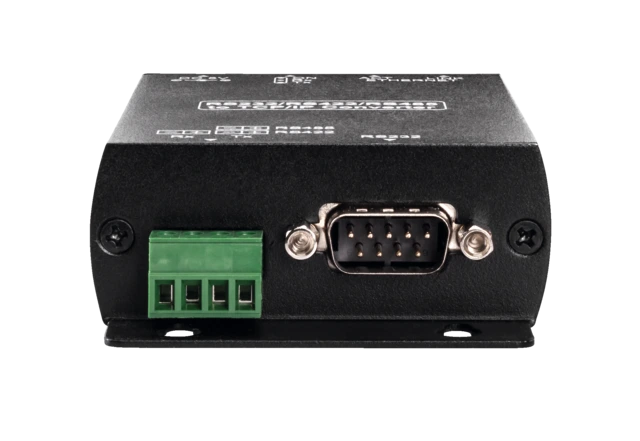

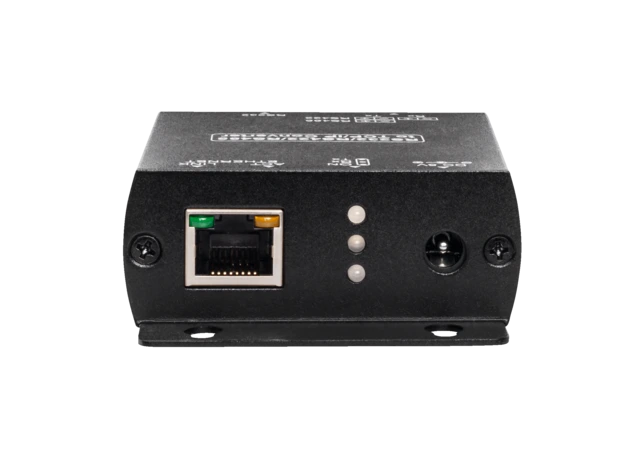

Connections: 1 x RJ45, 1 x RS232 (DB9 male), 1 x RS485 / RS422 (4-pin)
Current consumption: 600 mA
DC power supply: 5 V
Dimensions: (W x H x D) 67 x 110 x 27 mm
Height: 110 mm
Housing material: Aluminum
Language Manual: DE, GB
Language Packaging: DE, GB, FR, NL, DK, IT
Length: 27 mm
Max. Air humidity: 95 %
Max. Operating temperature: 70 °C
Min. operating temperature: 0 °C
Net weight: 0.173 kg
Network connection LAN: 10/100 Mbps
PSTI conformity needed: No
Product group: Accessories
Radio functions: TCP Server, TCP Client, UDP Mode
WEEE group: 09
width: 67 mm
