AZAA10000

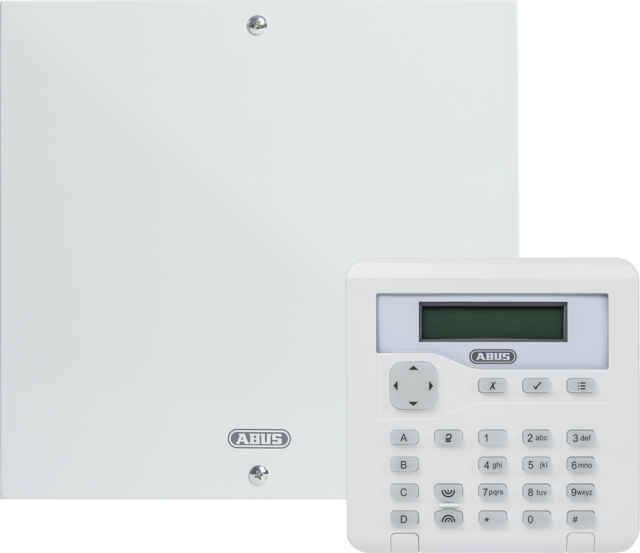

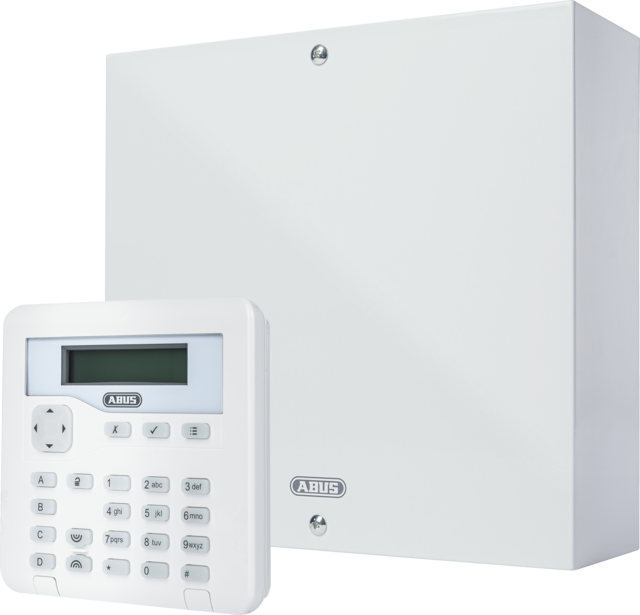

The Terxon SX alarm control panel is the intruder alarm control panel for smaller properties from the ABUS Security Center. Ten zones ensure seamless protection. The Terxon SX is the ideal entry-level model in the world of wired alarm technology. From condominiums to smaller commercial properties: This system gets to the heart of your security. Ten freely programmable zones for wired detectors are available to you during installation. The type of wiring - 2-wire CC, 4-wire CC or FSL in series or each as a separate zone - is up to you. A separate tamper zone is reserved for the signalling device on the main circuit board. Three transistor switching outputs with max. 500 mA switching capacity can be assigned to a specific event (alarm, fire, hold-up) and are also located on the main circuit board. If required, the Terxon SX can be extended with a relay board (eight relays with 3 A switching capacity). An elegant white LCD control panel is already included in the scope of delivery, which can be used to programme, activate or deactivate the system quickly and conveniently. You can connect four additional control panels. The connection is made via 4-wire bus wiring. 10 users with their own code can operate the system.
