ABUS Motion Detector PIR - detector with PIR sensor. Monitors entire rooms. Pet-immune for homes with pets. With EN grade 2 certification (AZBW10110)

Motion detector PIR (PET)

The pet-immune wire motion detector monitors rooms using passive infrared (PIR) sensor. It is also suitable for households with pets. Extra safe thanks to anti-creep protection.

Description

SAFE LIFE: WATCHES OVER YOUR INTERIORS
PIR detector: Unobtrusive, effective, power-saving
The "EN Grade 2" certified wire motion detector is equipped with a passive infrared sensor (PIR). It detects human-induced heat movements in its detection field and reports any event to the alarm control panel.

Optional PET Immunity: For your beloved pet
Optional "pet-immune” function, individually adjustable to 3 levels, differentiates between humans and animals. Moving persons are reliably detected while pets weighing up to 15 kg are ignored. In rare individual cases, however, a lighter animal can also trigger the detector, e.g. if it moves close to the detector, jumps or flies.

Technology and installation

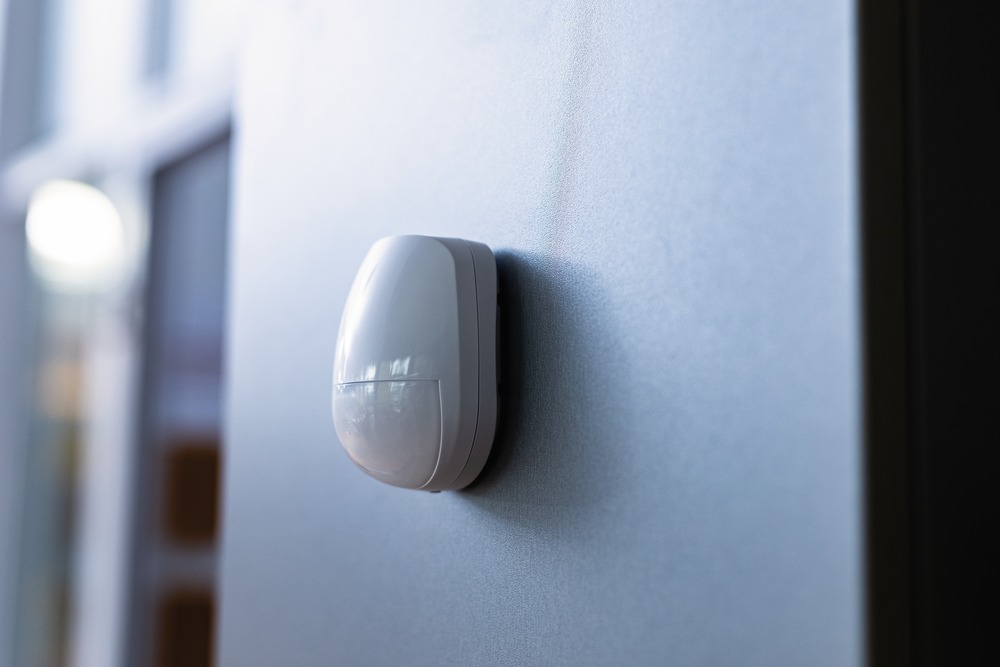

Optimal mounting location is in a corner, about 1.80 to 2.40 meters above the floor. The expected direction of travel of an intruder should be across the detector. The viewing angle is approximately 90 degrees, and the detection range (depending on the mounting height) is up to 16 x 16 meters. Thanks to the new spherical lens design, the detector detects even more reliably and offers significantly more uniform coverage. Thanks to integrated anti-creep protection, the detector has no blind spot and also detects people directly underneath.

Awards & Partners
The VSÖ certificate is granted by the Austrian Association of Security Corporations. This neutral, committee-based association`s certificate confirms the high security standard of alarm and video products.
The VSÖ certificate is granted by the Austrian Association of Security Corporations. This neutral, committee-based association`s certificate confirms the high security standard of alarm and video products.
https://c1.abus.com/asc-pim-assets-01/derivates/11/262/230223-EN50131-Grad-2_logos.jpg
https://c1.abus.com/asc-pim-assets-01/derivates/11/262/230223-EN50131-Grad-2_logos.jpg
Awards & Partners

Product advantages

  • Passive infrared motion detector (PIR) for indoor use
  • Detects heat movements of people
  • Pet-immune optional: Ignores animals up to approx. 15 kg
  • Monitors entire rooms (detection area approx. 16 x 16 m)
  • High security: No blind spots thanks to anti-creep protection
  • EN Grade 2 Certification

Downloads

General downloads:

Certificates:

Declarations of conformity:

Motion detector PIR (PET)
Motion detector PIR (PET)
Specifications
Anti-creep protection: Yes
Area of application: Interior
Certifications: EN 50131 Grade 2, VSÖ GS-N
Compatible with: Secoris, Secvest, Terxon
DC voltage supply: 9-16 V
Detector coverage area (m): 16 m
Dimensions: (WxHxD) 65,4x86,8x45,5 mm
Display: Yes
EN: Level 2
Height: 86,8 mm
Housing material: Plastic
Installation location: Wall
Installation type: Surface Mounting
Length: 45,5 mm
Max. humidity: 90 %
Max. operating temperature: 40 °C
Min. humidity: 10 %
Min. operating temperature: -10 °C
Net weight: 0,068 kg
PIR viewing angle: 85,9 °
PSTI conformity required: No
Pet-proof: Yes, < 15 kg
Power consumption: 11 mA
Sabotage monitoring: Yes
Sensor type: PIR
Status display: Yes
Type of detection: Heat detection
VdS class: none
Width: 65,4 mm
