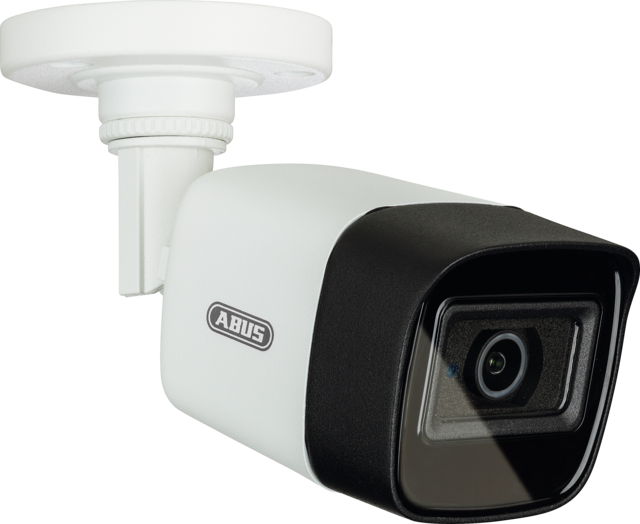

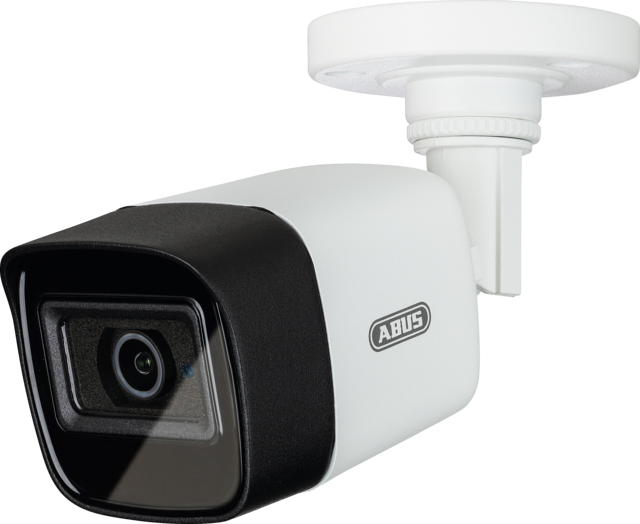

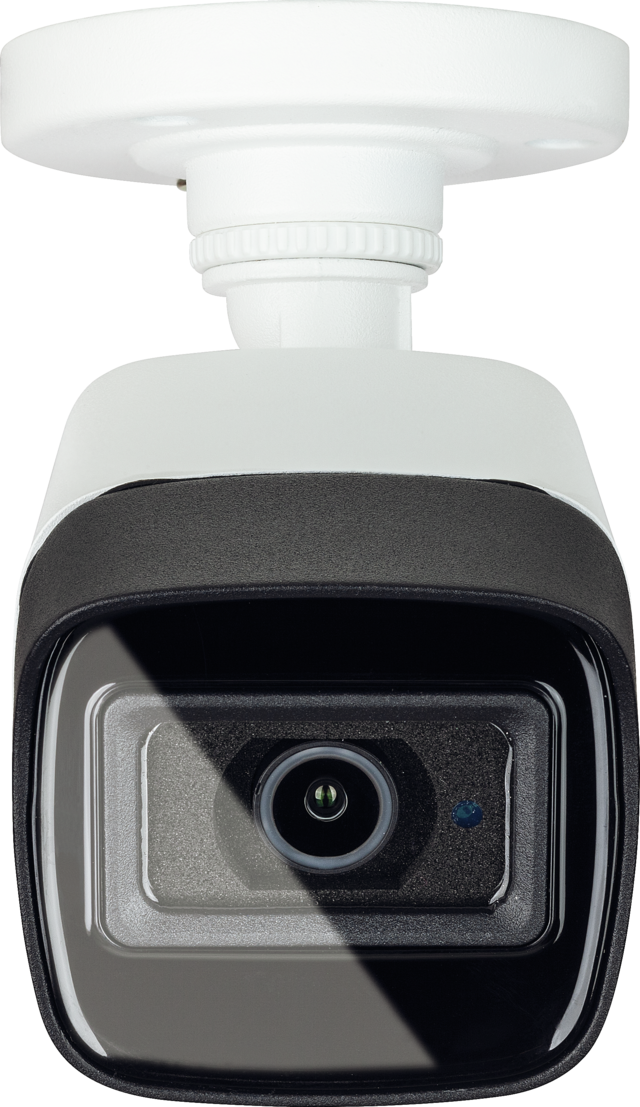

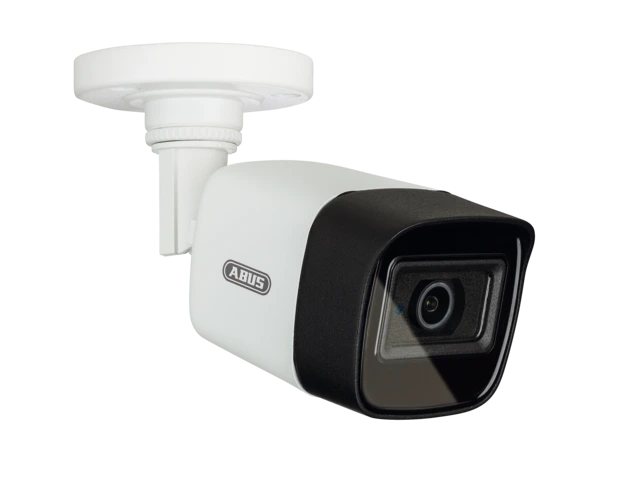

Analog HD Mini Tube 5 MPx (2.8 mm)

Robust, versatile and flexible in use: The camera impresses with its clear image quality and optional colour night vision – perfect for uncomplicated retrofitting.

Description

Analogue Mini Tube 5 MPx – detailed surveillance with existing technology
The Analogue Mini Tube with 5 megapixels is suitable for indoor and outdoor use (IP67) and delivers clear, detailed images – even in difficult lighting conditions. The True WDR function ensures balanced brightness between the foreground and background, while Gecko + IR technology enables colour images even at night. The camera is ideal for users who want to continue using existing coaxial cabling while benefiting from modern image quality.

Targeted detection of people and vehicles
When used with an ABUS Analogue HDCC900X2 recorder, the camera enables AI-supported analysis. It distinguishes between people and vehicles, which improves the detection of relevant movements and reduces the number of irrelevant notifications.

Efficient retrofitting with existing infrastructure
Analogue technology enables the modernisation of existing surveillance systems without replacing the existing coaxial or 2-wire cabling (via converters). Cameras and recorders can be easily replaced, which reduces time and installation effort. For reliable IR performance, the ambient conditions should be taken into account accordingly.

IR range depends on the environment
The performance of the lighting depends heavily on the location. Dark surfaces or a lack of reflections can impair the image – as can close, reflective objects.

For safe and proper operation, this equipment must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure continuous smooth operation with the latest security updates and new functions.

Product advantages

  • 5 MPx resolution: 2592 x 1944 @ 20 fps
  • True WDR effectively compensates for light/dark contrasts
  • Fixed lens with 2.8 mm focal length and 112° horizontal viewing angle
  • Weatherproof (IP67) for outdoor use
  • Integrated IR and white light LEDs with event-controlled switching (optional, controlled by DVR HDCC900X3)
  • Fewer false alarms thanks to AI-supported detection of people/vehicles with HDCC900X3 recorder
  • Perfect for retrofitting: Transmission via conventional and existing CCTV infrastructure with coaxial cable
  • Cable lengths of up to 150 m

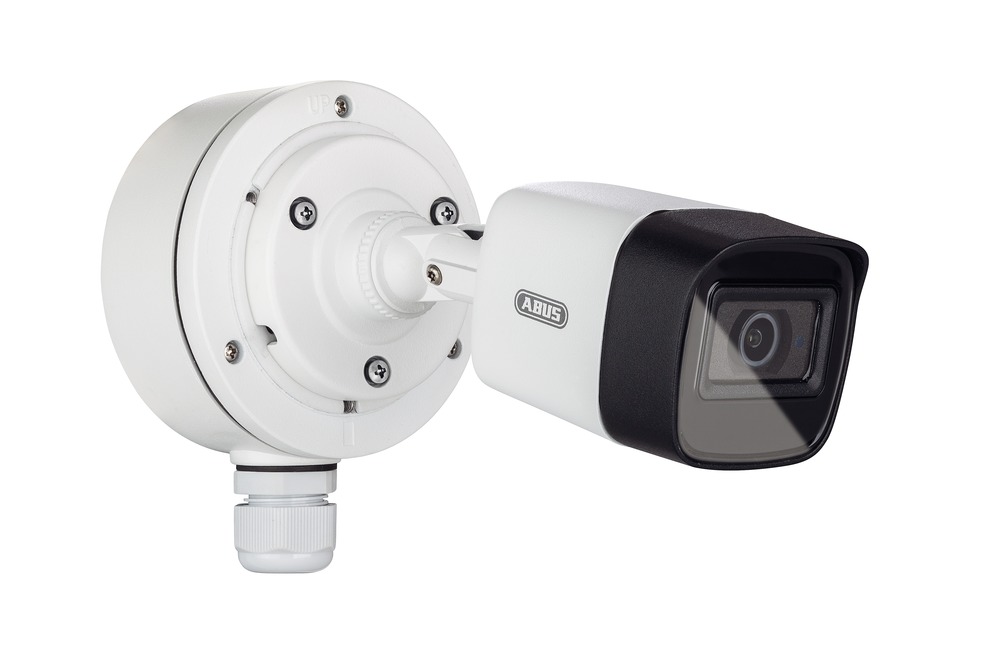

  • Wide variety of holders for straightforward, cost-efficient installation

Downloads

General downloads:

Additional information:

Analogue Mini Tube Camera
Analogue Mini Tube Camera
Specifications
Amplifier control: AGC, 3 level
Aperture at minimum illumination (color): F1.2
Application purpose: General surveillance
Article program: Professional
Backlight compensation: True WDR
Camera outputs: 1 x BNC
Camera type: Mini Tube
Colour: white
Compatible with Secvest: No
Compatible with wAppLoxx: No

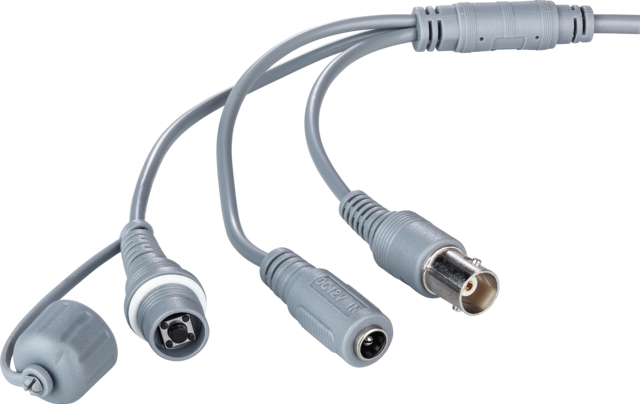

Connections: 1 x BNC (HD-TVI), 1 x DC (5.5/2.1 mm)
Construction type of device: Tube
Current consumption: 480 mA
DC power supply: 12 V +/-15 % V
Day/night switching: Electromechanical IR cut filter
Depth: 154 mm
Dimensions: (LxWxH) 154x59x56 mm
Dynamic range (WDR): 120 dB
Electronic shutter: 1/50 – 1/50000 s
Focal length: 2.8 mm
Height: 56 mm
Horizontal viewing angle: 98.0 °
Housing material: Metal
IR LEDs: Yes
IR range (up to): 20 m
Image optimization: WDR, BLC, ATW, DNR
Image sensor: 1/2.7" Progressive Scan CMOS
Length: 154 mm
Lens: Fix
Lens mount: M12
Max. Air humidity: 90 %
Max. Operating temperature: 60 °C
Max. Resolution @ frame rate: 2592x1944 @ 20 frames/s
Microphone: No
Min. operating temperature: -40 °C
Minimum illumination (IR): 0 lx
Minimum illumination (color): 0.03 lx
Net weight: 0.375 kg
Noise suppression: DNR
PSTI conformity needed: No
Power consumption: 5.8 W
Privacy zones: 4
Product group: Camera
Protection class IP: 67
Protocols: Coax
Radio functions: Motion Detection, Tripwire Detection and Intrusion Detection via DVR
Radio networked: No
Resolution: 5 MP
Resolution modes: 2592 x 1944
Vertical angle of view: 50 °
Video channels HD-TVI: 1
Video motion detector included: No
Video system: HD-TVI, CVI, AHD, FBAS
WEEE group: 09
White balance: ATW, manual
width: 59 mm
