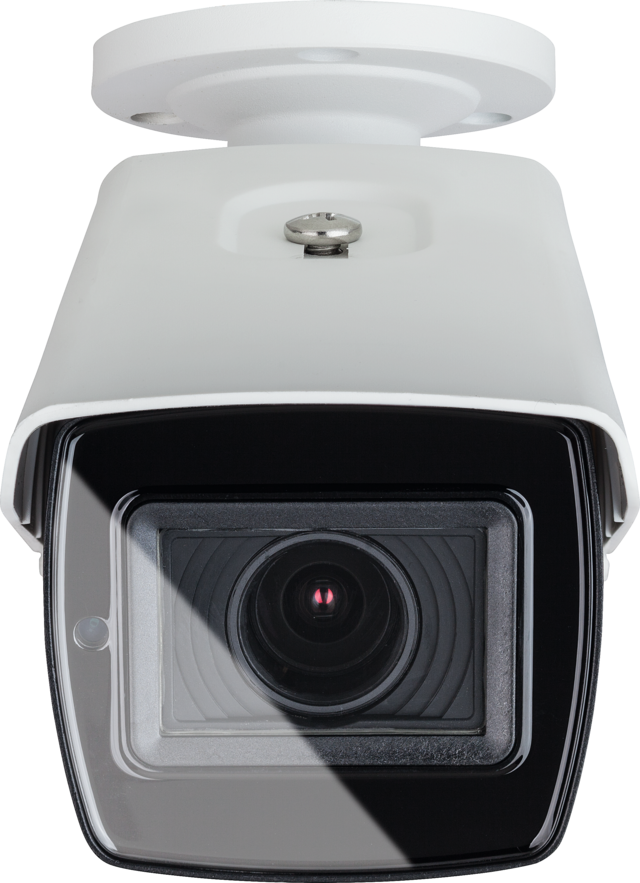

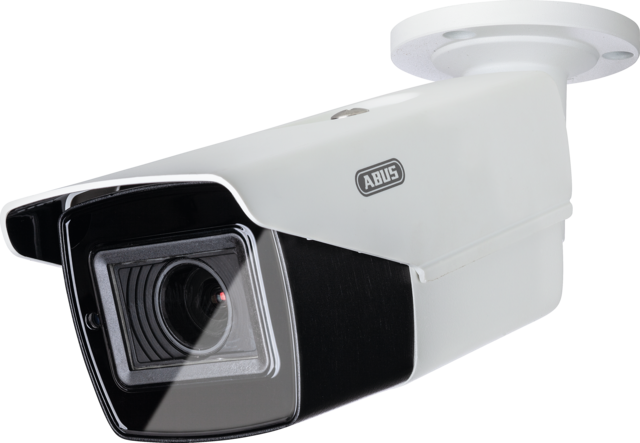

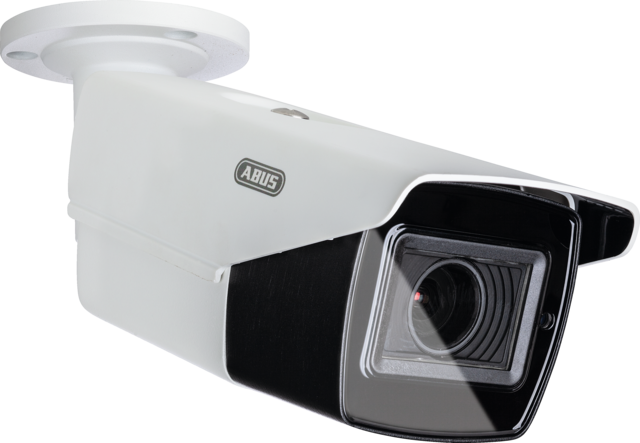

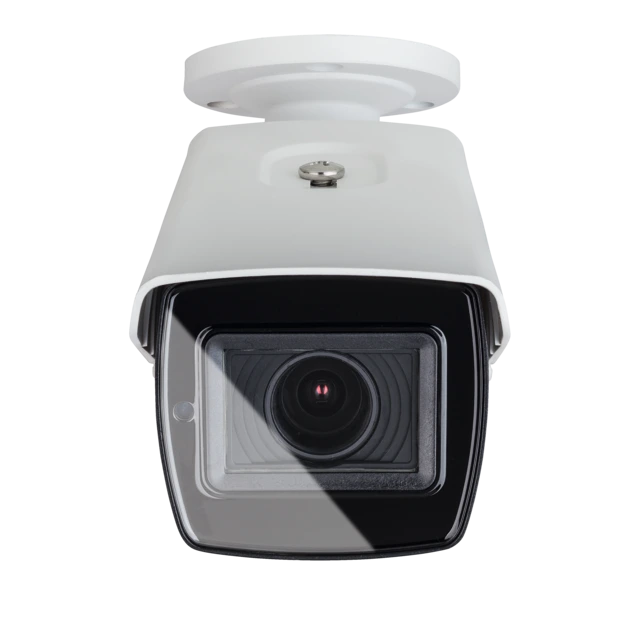

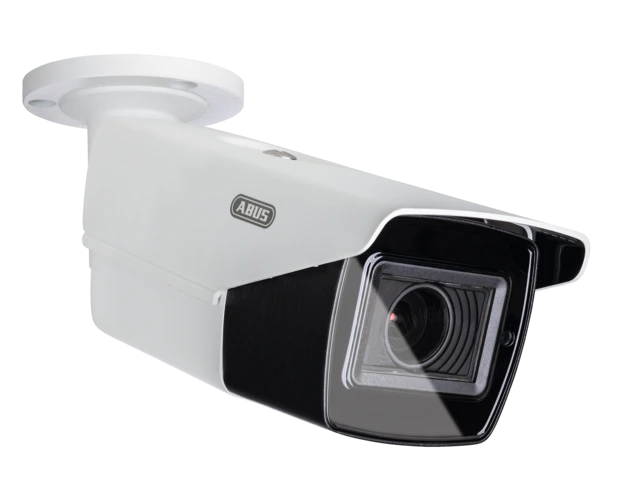

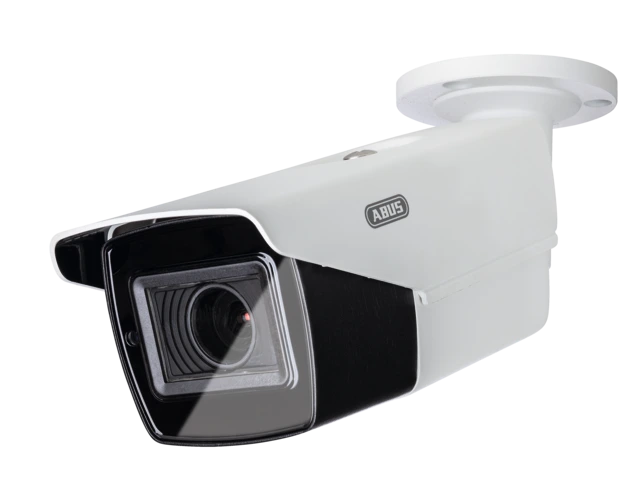

Analog HD Tube 5 MPx (2.7 - 13.5 mm)

High-resolution images via analogue cable. Flexible 24/7 surveillance of commercial properties (True WDR, motorised zoom). Ideal for renewing analogue systems thanks to maximum compatibility (4-in-1 video output).

Description


ABUS Analogue HD: extremely clear images via coaxial cable
The Analogue HD Tube 5 MPx camera is ideal for surveillance (CCTV) of extensive areas indoors and outdoors. Its high-quality image sensor delivers razor-sharp, smooth and detailed images. Its powerful True WDR function ensures uniform illumination of the surveillance area (foreground and background) in high-contrast lighting situations (e.g. backlighting).

24/7 indoor and outdoor surveillance
The automatic day/night switching of the modern IR LED technology ensures good image illumination in changing light conditions. The IP67 protection class makes the Analogue HD Tube robust in the face of wind and weather.

Easy installation: Motorised zoom, wide range of holders
The camera can be focused remotely via recorder and motorised zoom lens by just one person. The large selection of brackets offers flexibility for every installation location.

Analogue HD technology: ideal for inexpensive retrofitting
The use of existing cabling enables quick and easy retrofitting. Simply swap cameras and recorders and the "old" surveillance system becomes state of the art. Coaxial cables or 2-wire lines that have already been laid can continue to be used. Supported video standards: HD-TVI, HD-CVI, AHD and CBVS/FBAS.

Note: The effective IR range depends on where the camera is used or installed.

For safe and proper operation, this equipment must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure continuous smooth operation with the latest security updates and new functions.

Product advantages

  • 5 MPx resolution: 2592 x 1944 @ 20 fps
  • True WDR effectively compensates for light/dark contrasts
  • Easy installation and focusing via remote access with the motorised zoom lens (2.7 – 13.5 mm)
  • Powerful IR LED technology for improved illumination up to 40 m at night
  • Weatherproof (IP67) for outdoor use
  • 4-in-1 video output (switchable TVI / AHD / CVI / CVBS)
  • Perfect for retrofitting: Transmission using conventional and existing CCTV infrastructure, such as coaxial or 2-wire cables
  • Cable length of up to 500 m possible without loss

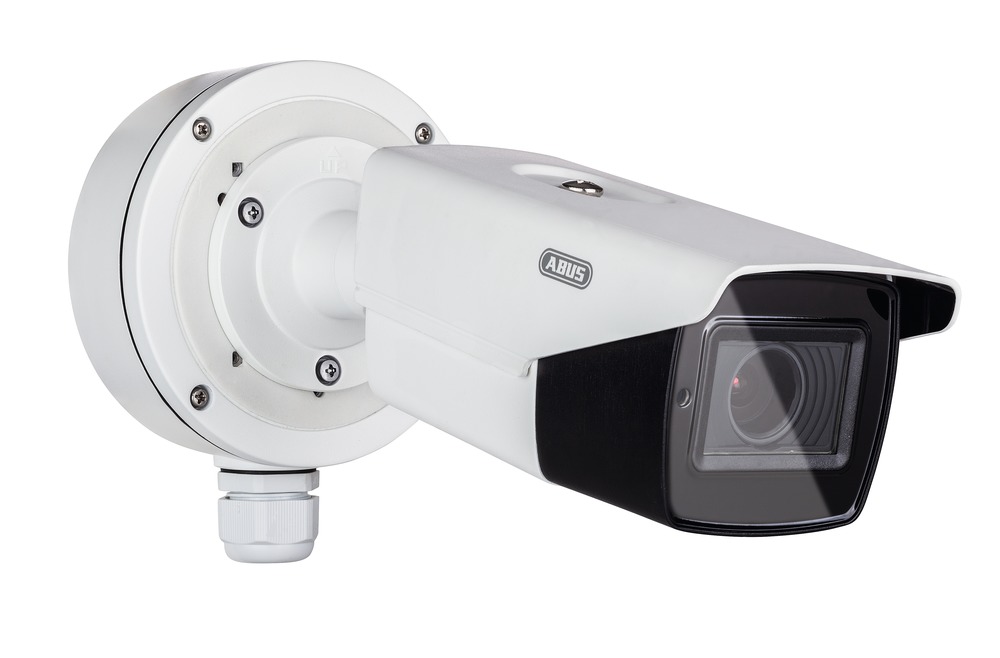

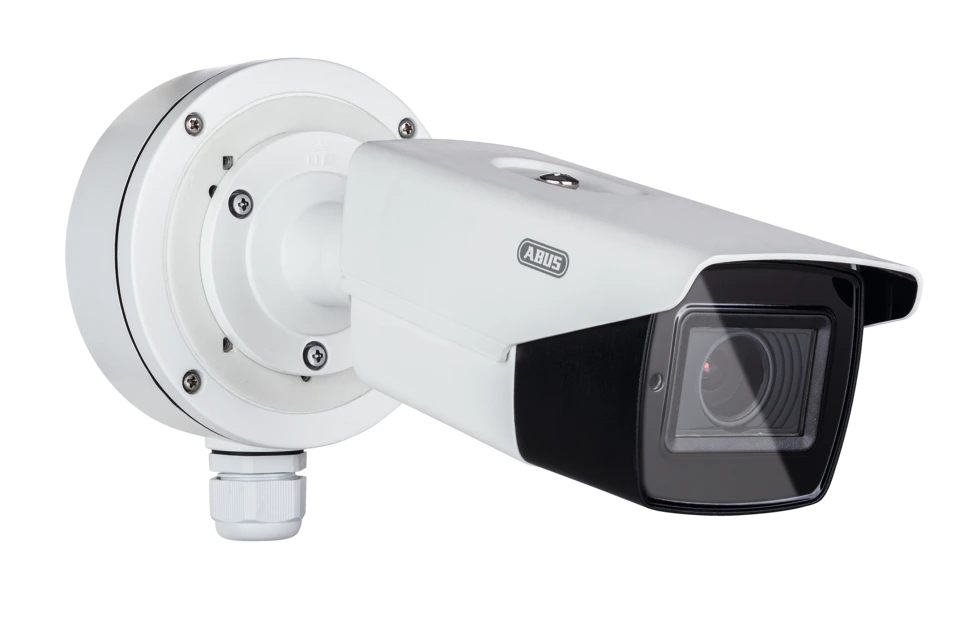

  • Wide variety of holders for straightforward, cost-efficient installation

Downloads

General downloads:

Analogue Tube Camera
Analogue Tube Camera
Specifications
AC power supply: 24 V +/-15 % V
Amplifier control: AGC, 3 level
Aperture at minimum illumination (color): F1.2
Application purpose: General surveillance
Article program: Professional
Backlight compensation: True WDR
Camera outputs: 1 x BNC
Camera type: Tube
Colour: white
Compatible with Secvest: No
Compatible with wAppLoxx: No

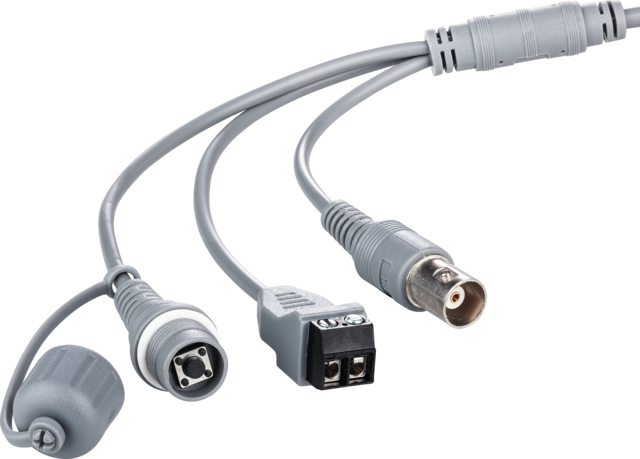

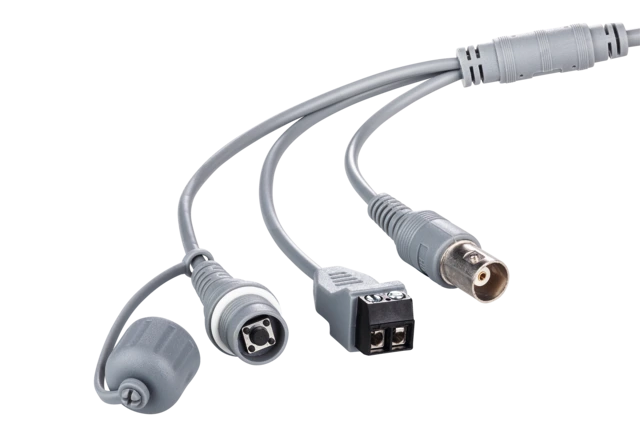

Connections: 1 x BNC (HD-TVI), 1 x DC/AC (2-Pin)
Construction type of device: Tube
Current consumption: 875 mA
DC power supply: 12 V +/-15 % V
Day/night switching: Electromechanical IR cut filter
Depth: 265 mm
Dimensions: (LxWxH) 265x92x85 mm
Dynamic range (WDR): 120 dB
Electronic shutter: 1/50 – 1/50000 s
Focal length: 2.7 – 13.5 mm
Height: 85 mm
Horizontal viewing angle: 29 – 92 °
Housing material: Metal
IR LEDs: Yes
IR range (up to): 40 m
Image optimization: WDR, BLC, ATW, DNR
Image sensor: 1/2.7" Progressive Scan CMOS
Length: 265 mm
Lens: Motorised zoom, autofocus
Lens mount: M12
Max. Air humidity: 90 %
Max. Operating temperature: 60 °C
Max. Resolution @ frame rate: 2592x1944 @ 20 frames/s (50Hz)/1920x1536 @ 20 frames/s (60Hz)
Microphone: No
Min. operating temperature: -40 °C
Minimum illumination (IR): 0 lx
Minimum illumination (color): 0.03 lx
Net weight: 1.015 kg
Noise suppression: DNR
Optical zoom: 5 x
PSTI conformity needed: No
Power consumption: 10.5 W
Privacy zones: 4
Product group: Camera
Protection class IP: 67
Protocols: Coax
Radio functions: Motion Detection, Tripwire Detection and Intrusion Detection via DVR
Radio networked: No
Resolution: 5 MP
Resolution modes: 2592 x 1944
Vertical angle of view: 20 – 57 °
Video channels HD-TVI: 1
Video motion detector included: No
Video system: HD-TVI, CVI, AHD, FBAS
WEEE group: 09
White balance: ATW, manual
width: 92 mm
