8-Port PoE Gigabit Switch

Description

Technology for use in professional security surveillance systems.

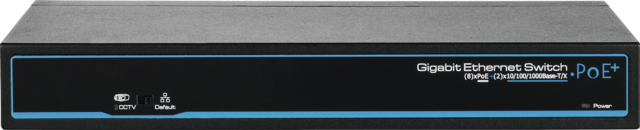

The 8-Port PoE Gigabit Switch was specially developed for use in professional and high-resolution video surveillance systems and provides eight gigabit downlink PoE ports, one gigabit uplink port and one uplink slot for a gigabit SFP module.

Use PoE instead of power supply unit.
Each downlink port delivers up to 30watts PoE output power. The switch is therefore highly suitable for directly operating ABUS IP cameras, which means that no additional power supply unit is required.
A total PoE output power of 120watts is available. For example, simultaneous operation is possible for up to:
Eight PoE network devices
Four PoE+ network devices
Four PoE and two PoE+ network devices.

Installation made easy.
The compact design and the mounting tabs provided make it quick and easy to install the switch in various locations.

Product advantages

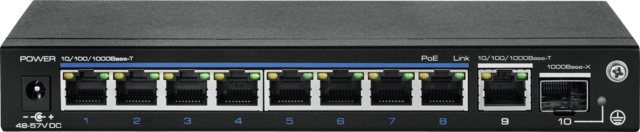

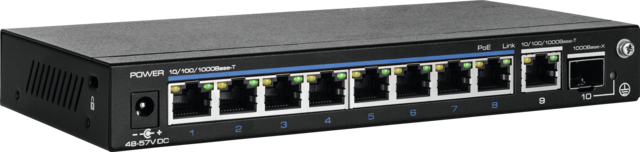

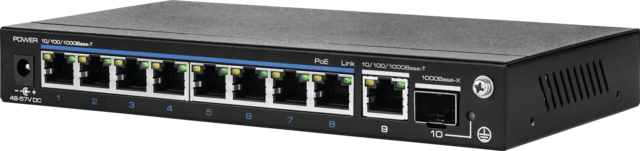

  • Connections: 8 x PoE gigabit (downstream), 1 x gigabit (uplink) RJ45, 1 x gigabit (uplink) SFP
  • Supports PoE and PoE+
  • Plug & Play, no configuration required
  • Robust design, easy to install anywhere

Downloads

General downloads:

Specifications
Application purpose: General surveillance
DC power supply: 48~57 V
Depth: 102 mm
Dimensions: (LxWxH) 200 x 102 x 27 mm
Height: 27 mm
Length: 102 mm
Max. Air humidity: 95 %
Max. Operating temperature: 45 °C
Max. PoE power per port: 30 Watt
Min. operating temperature: -10 °C
Net weight: 1.26 kg
Network connection: Downstream: 8x 10/100/1000Base-T (PoE), Uplink: 1x 10/100/1000Base-T Ethernet Ports & 1x 1000Base-X SFP
Network standards: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3Z, EEE802.3 X
PSTI conformity needed: No
Pin assignment Power supply: 1/2(+), 3/6(-)
PoE Standard: 802.3af/at (PSE)
Power consumption: 5 W
Product group: Accessories
Total PoE power: 120 Watt
WEEE group: 09
width: 200 mm
