SFP Module
SFP Module
SFP Module

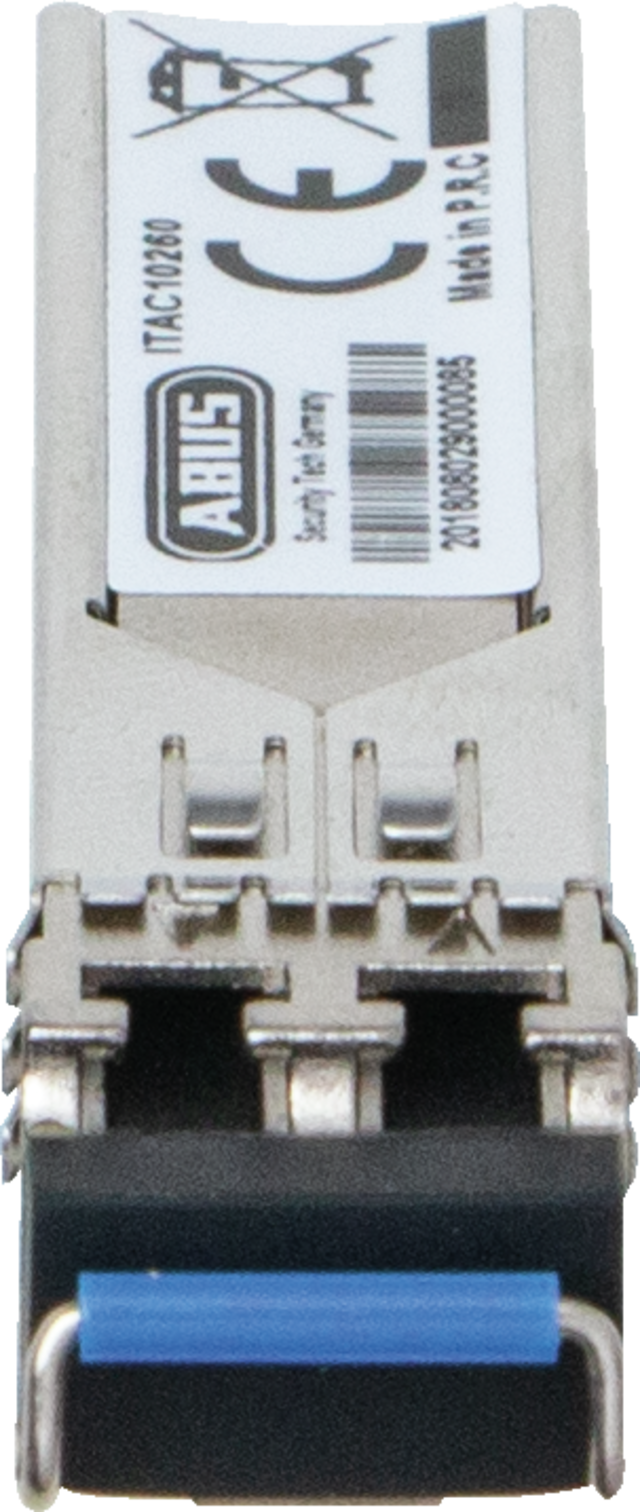

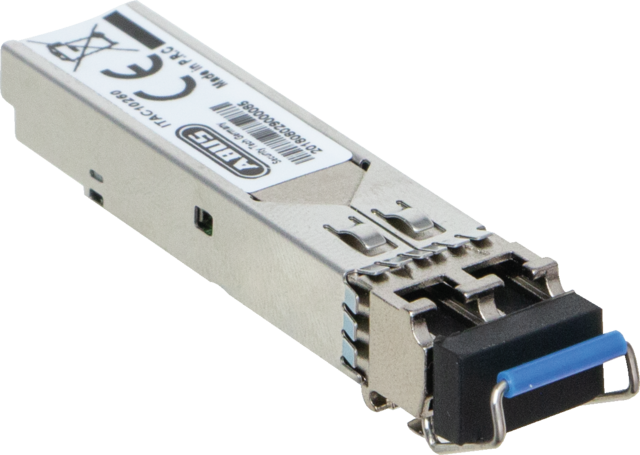

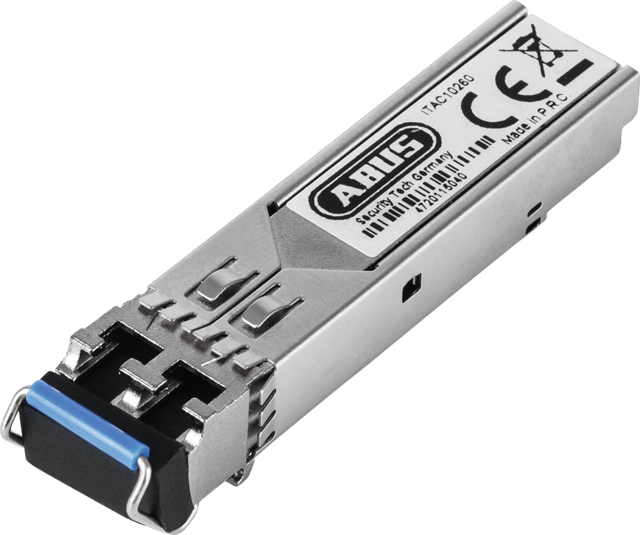

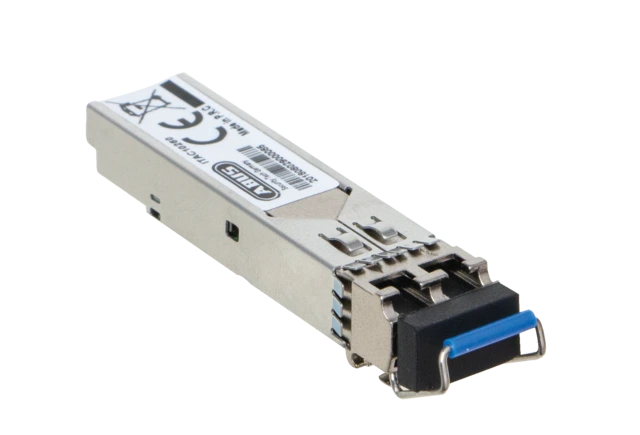

SFP Module Singlemode

Description

For promising networking of professional security surveillance systems.
The standardised SFP module is used to connect duplex single-mode optical fibres.

It is compatible with all standardised SFP slots and is required for use of the LWL port in our switches and the media converter.

Product advantages

  • SFP modules for LC plugs according to SFF-8472 standard
  • Supports hot-plug
  • Supports single-mode optical fibres
  • Transmission distance of up to 20 km
  • 1310 nm FP laser
  • Complies with the IEC-60825 laser safety standard

Downloads

General downloads:

Video Combination Cable 250 m
Video Combination Cable 250 m
Specifications
Application purpose: General surveillance
DC power supply: 3.15V～3.45V V
Dimensions: (LxWxH) 56 x 14 x 6 mm
Fiber optic cable type: Single mode 9/125um
Fiber optic connection: LC
Height: 6 mm
Length: 56 mm
Max. Air humidity: 95 %
Max. Operating temperature: 70 °C
Min. operating temperature: 0 °C
Net weight: 0.017 kg
Optical wavelength: 1,310
PSTI conformity needed: No
Power consumption: 1 W
Product group: Accessories
Transmission distance: 20,000 m
WEEE group: 09
width: 14 mm
