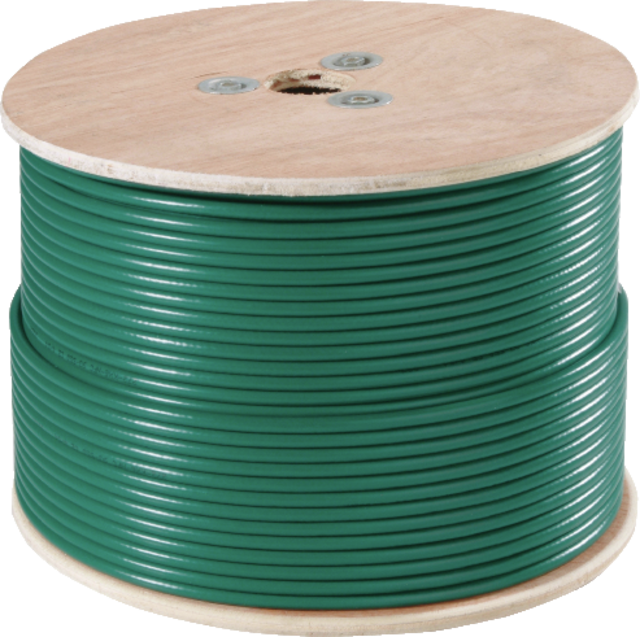

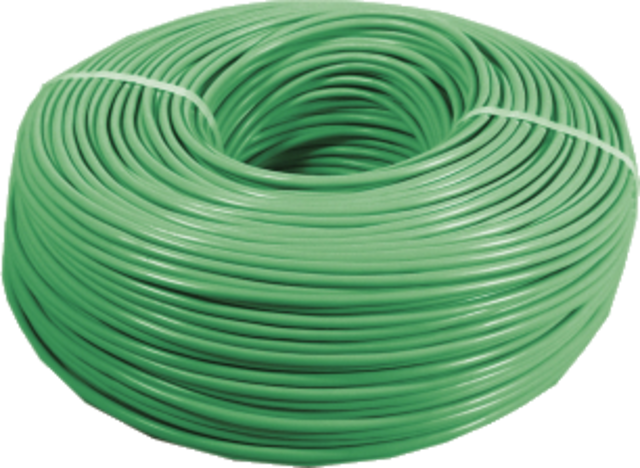

RG59 Video Cable 100 m

Name: RG59 Video Cable 100 m
Brand: ABUS August Bremicker Söhne KG

Description

TV8601

The RG59 video cable allows you to connect individual components and ensure good data transmission. The cable resistance is 75 ohms. The coaxial cable is available in lengths of 50 m (TV8602), 100 m (TV8601) and 250 m (TV8600).

For safe and proper operation, this equipment must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure continuous smooth operation with the latest security updates and new functions.

Product advantages

75 ohms, type 0.6 L/3.7 mm
Available in different lengths

Downloads

General downloads:

Data sheet

Additional information:

Declaration Of Performance

Specifications

Application purpose:	indoors
Attenuation:	2.59 dB
Cable length:	100 m
Cable style:	RG59
Colour:	green
Diameter:	6.1 mm
Fire behavior:	Eca
Housing material:	PVC
Impedance:	75 O

Insulation:	3,7
Max. Operating temperature:	75 °C
Min. operating temperature:	-30 °C
Net weight:	4.6 kg
Outside diameter:	61 mm
PSTI conformity needed:	No
Product group:	Accessories

Accessories required
