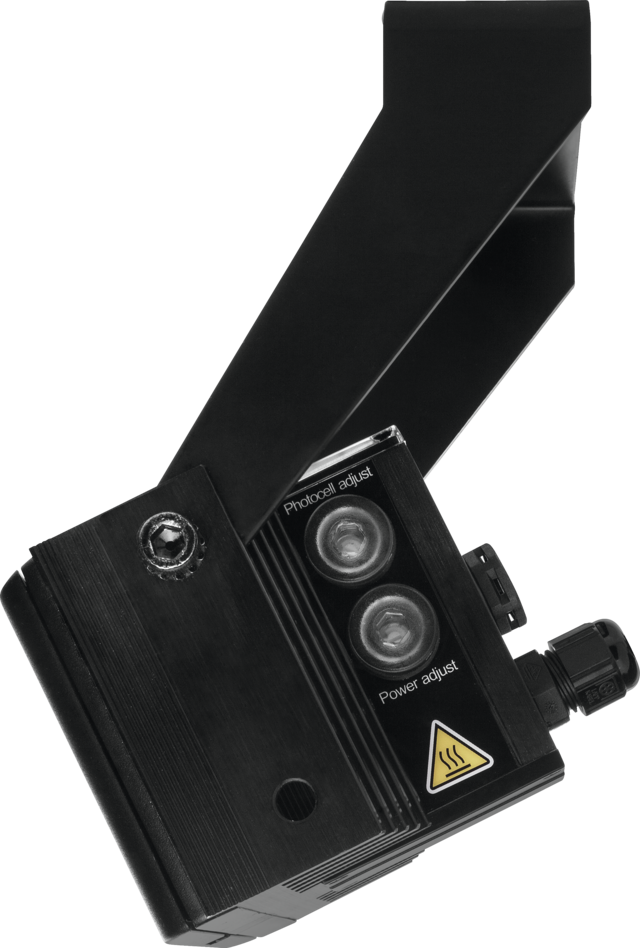

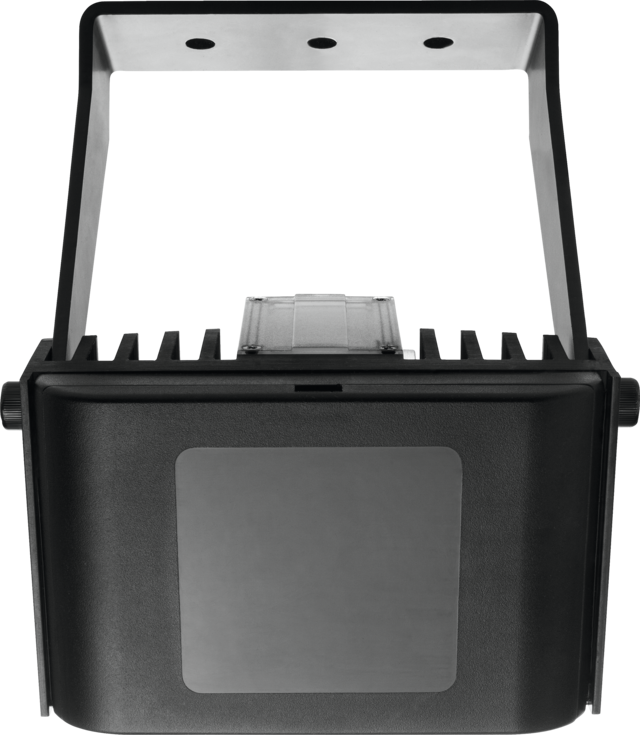

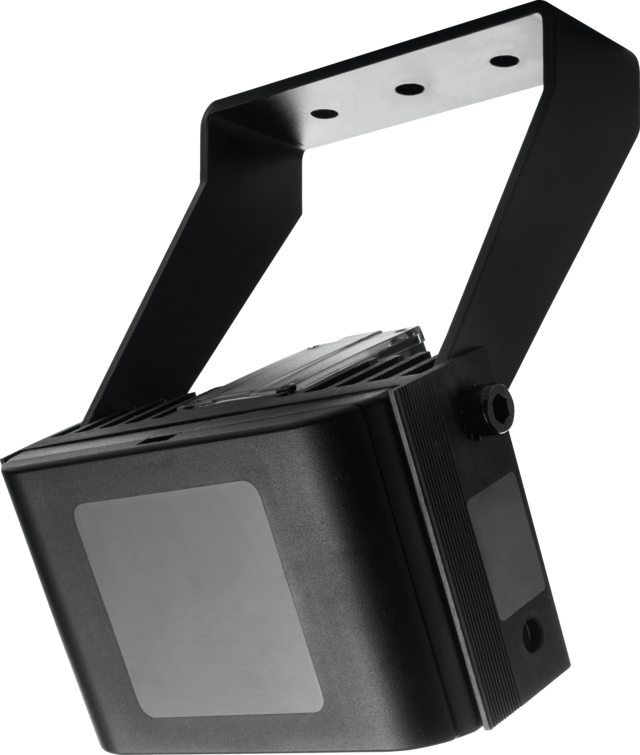

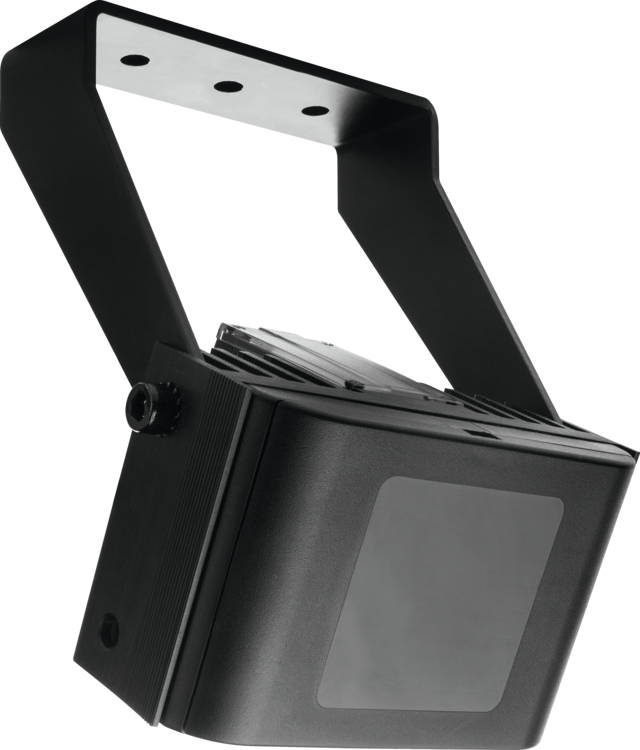

IR Illuminator, 15 W, 10°- 95° changeable lens

Name: IR Illuminator, 15 W, 10°- 95° changeable lens
Brand: ABUS August Bremicker Söhne KG

Description

TVAC71070 Improved illumination for surveillance cameras

With a replaceable diffuser lens and a range of up to 130 m, the range and angle of coverage are extremely flexible, ensuring universal suitability for many locations and projects. With its high-performance IR LEDs, the illuminator generates improved night vision and is therefore the ideal addition to ABUS surveillance cameras with day/night function. The weatherproof IP66 housing also ensures full functionality in outdoor areas.

Range and compatibility
The interchangeable diffuser lens enables an operating angle of 10°- 95°. You can also tilt the IR illuminator vertically using the bracket supplied. For continuous horizontal alignment, we recommend our TVAC31700 mounting bracket.

Installation
To avoid glare, there should be no light-reflecting surfaces in the immediate vicinity of the IR illuminator and the camera. This must also be observed in general when installing ABUS cameras with IR LEDs.

Note: ABUS surveillance cameras with black housings will also be available from summer 2019. Please contact us!

For safe and proper operation, this equipment must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure continuous smooth operation with the latest security updates and new functions.

Product advantages

Interchangeable diffuser lens 10°, 20°, 30°, 40°, 80° & 95°
Range up to 130 m
Weatherproof IP66 housing
Variable power supply input 12-32V DC / 24V AC +/-10%
Additional bracket for horizontal alignment available TVAC31700
Integrated light sensor for automatic switching on and off
Control input for remote switching
Self-cleaning lens coating technology

Downloads

General downloads:

Specifications

AC power supply:	24 +/- 10% V
Application purpose:	General surveillance
Cable length:	3 m
Connections:	1 x AC / DC connection, 1 x relay input, 1 x camera day/night switching
DC power supply:	12 - 32 V
Dimensions:	(W x H x D) 78 x 110 x 68 mm
Height:	110 mm
Length:	68 mm
Max. Operating temperature:	50 °C
Min. operating temperature:	-50 °C

Net weight:	0.75 kg
Number of LEDs:	4
Optical wavelength:	850
PSTI conformity needed:	No
Power consumption:	15 W
Product group:	Accessories
Protection class IP:	66
width:	78 mm
