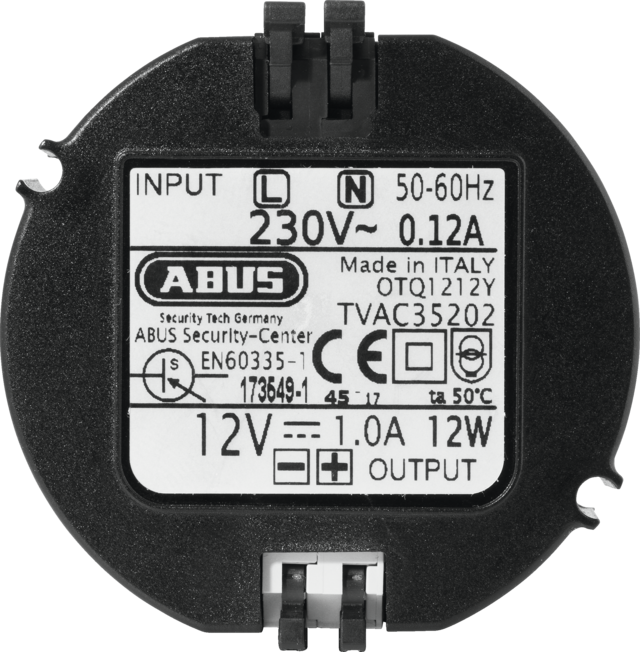

Mini clip built-in power supply unit 12V / 1A

Name: Mini clip built-in power supply unit 12V / 1A
Brand: ABUS August Bremicker Söhne KG

Description

TVAC35202

The stabilised mini clip built-in power supply unit (230 V AC) is used for the power supply of your video components. The enhanced version with a lever spring clamp means that quick installation is possible without the need for a tool or an additional clamp. Its compact dimensions mean that it is especially suitable for use as a flush mounted power supply for installation in a 55 mm flush socket and anywhere there is limited space available for the power supply. Different variants are available.

For safe and proper operation, this equipment must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure continuous smooth operation with the latest security updates and new functions.

Product advantages

Quick installation: lever spring clamp means tool is not required
Output voltage: different variants available

Downloads

General downloads:

Data sheet

Specifications

Dimensions:	55 x 51 x 26 mm
Height:	51 mm
Input voltage AC:	230 V
Length:	26 mm
Max. Operating temperature:	50 °C
Min. operating temperature:	-10 °C
Net weight:	0.045 kg

Output voltage DC:	12 V
PSTI conformity needed:	No
Product group:	Accessories
Rated current:	1,000 mA
WEEE group:	09
width:	55 mm
