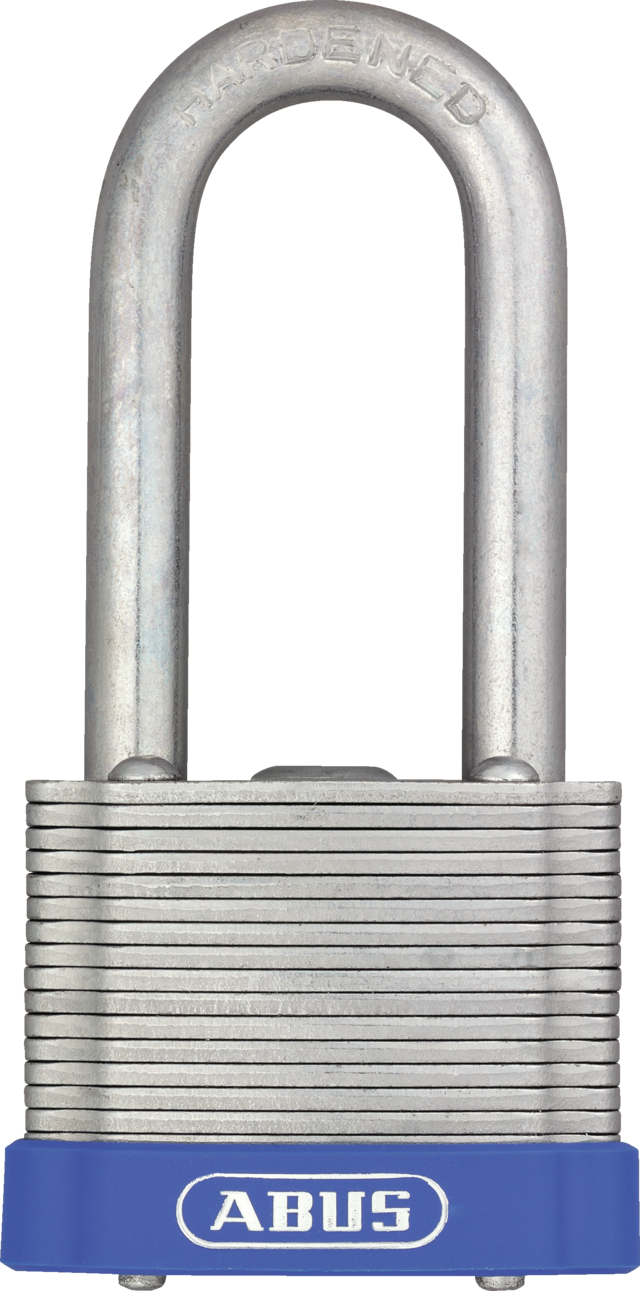

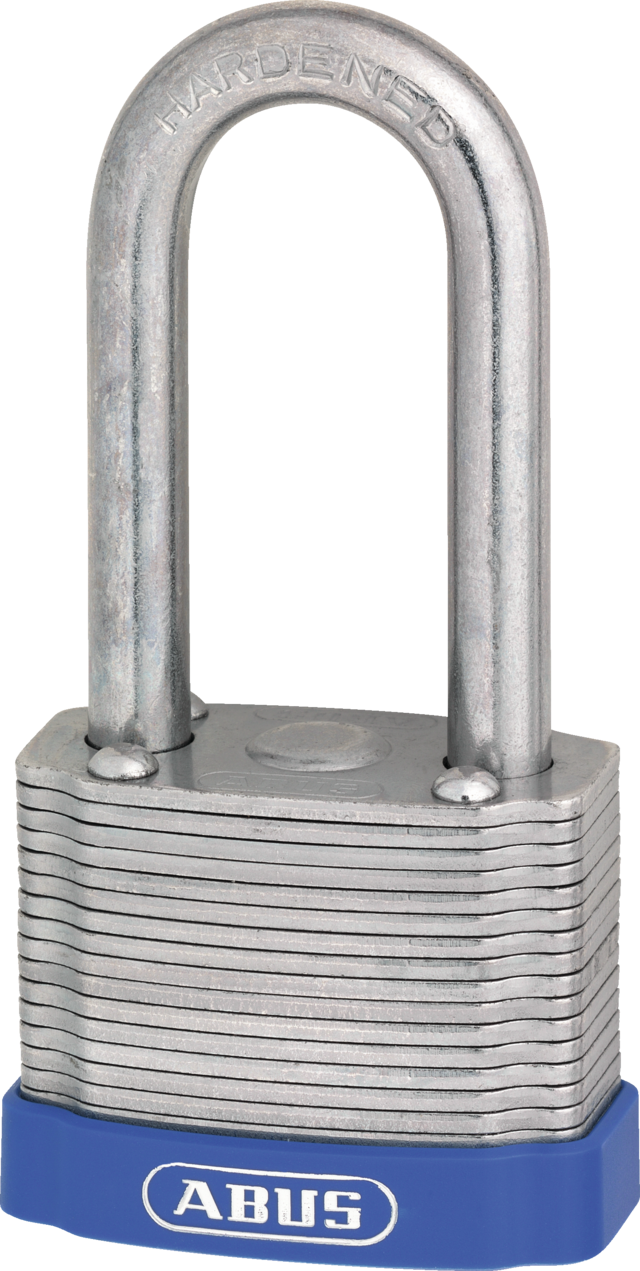

Laminated Steel 41/50HB50 Exploded view

41/50HB50 blue

  • WARNING:  Cancer and Reproductive Harm - www.P65Warnings.ca.gov
All variants for 41

Technologies

  • Laminated steel with ETERNA™ coating on each laminate for extreme corrosion resistance
  • Laminates individually treated for top corrosion protection
  • Rivets concentrated in the outer laminates to protect the rivet heads from being chipped off
  • Hardened shackle, double bolted, as of 1 37⁄64" made from special alloy
  • Precision pin tumbler cylinder
  • Self-locking: Locking without key by pushing down the shackle
  • Made in Germany

Use and application

  • To secure valuables/goods of medium value or at an average risk of theft

Variants

  • Sizes: 1 3⁄16", 1 37⁄64", 1 49⁄64", 1 31⁄32"
  • Shackles: HB 47, HB 48, HB 50

Downloads

General downloads:

Specifications
Locking type: key
Width a: 2 3/32 inch
Vertical clearance c: 1 31/32 inch
Depth e: 1 9/64 inch
Weight [lbs]: 0.84 lbs
Security Level Home Security: 7
color: blue
Horizontal clearance b: 29/32 inch
Shackle diameter d: 23/64 inch
Height f: 3 15/16 inch
Keyed alike: No
