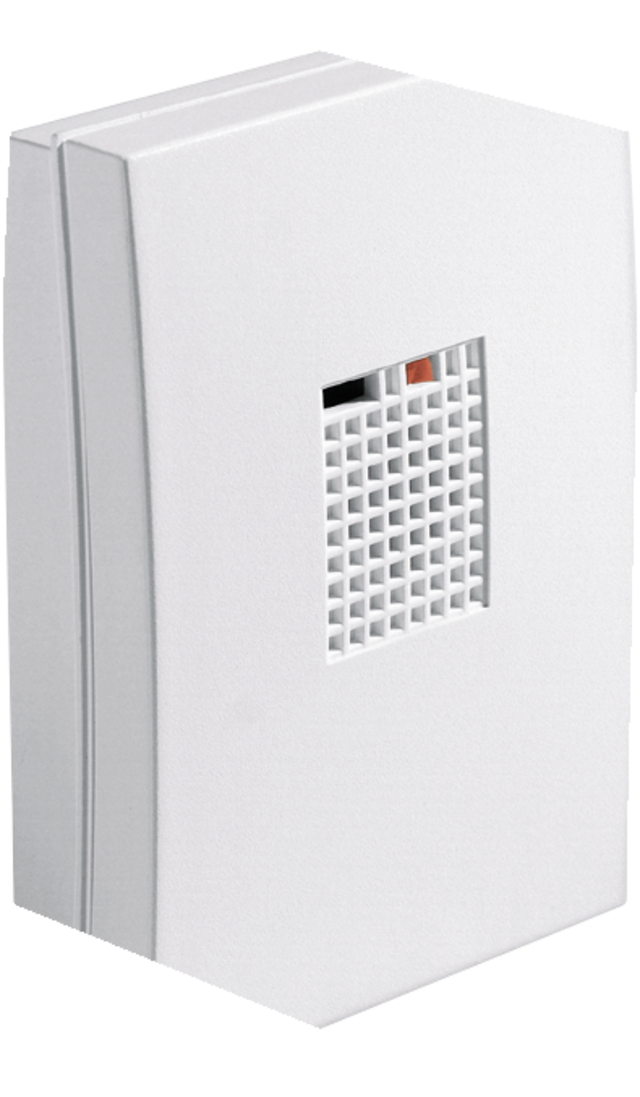

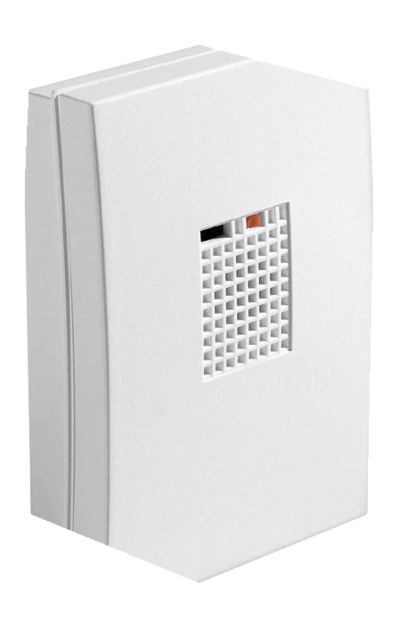

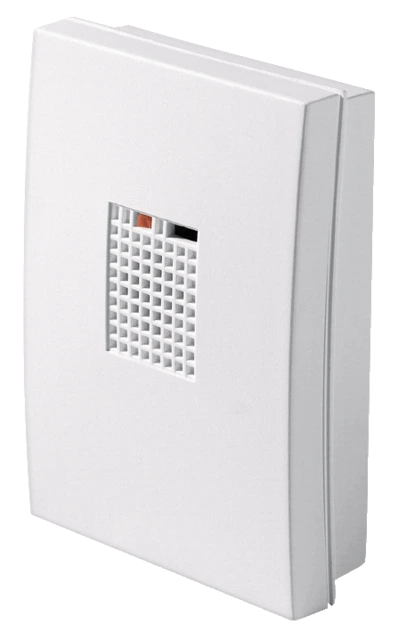

    Acoustic Glass Break Detector
    Acoustic Glass Break Detector

    Acoustic Glass Break Detector

    Product advantages

    • Reliable (acoustic) detection of breaking glass
    • One detector to secure window fronts and conservatories
    • Distinguishes shattering window panes from drinking glasses
    • Detection range up to 9 m depending on the type and thickness of glass

    Downloads

    General downloads:

    Glass Breakage Detector
    Glass Breakage Detector
    Specifications
    Colour: white
    Connections: NC
    Current consumption: 20 mA
    DC power supply: 9,3-16 V
    Detection area detector (m): 9 m
    Detection method: Audible
    Dimensions: (WxHxD) 50x70x25 mm
    Height: 70 mm
    Housing material: ABS
    Length: 25 mm
    Max. Operating temperature: 55 °C
    Mechanical protection: No
    Mounting location: Across from the glass surfaces to be monitored
    Net weight: 0.043 kg
    PSTI conformity needed: No
    Power consumption: 0.186 W
    Product group: Detectors
    Sensor type: Omnidirectional microphone
    Status display: Yes
    Tamper monitoring: Yes
    Type of protection: Intrusion protection
    VdS class: none
    WEEE group: 09
    width: 50 mm
