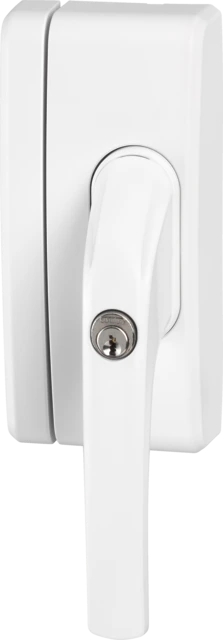

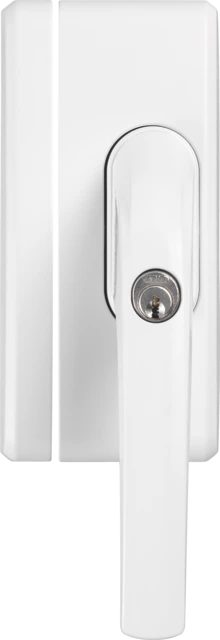

    ULTIVEST Wireless Window Handle
    ULTIVEST Wireless Window Handle

    Secvest Wireless Window Handle Lock FO 400 E – AL0125 (white)

    Individual component

    Secvest Wireless Retrofit Kit for FO 400
    Melder
    Secvest Wireless Retrofit Kit for FO 400
    go to product
    • Double your protection by combining mechanical security with electronic monitoring
    • Active intrusion protection, thanks to simple upgrading of the mechanical system with electronics
    • Even detects intrusion attempts
    • Connection points for passive glass break detectors
    • Upgrade for the purely mechanical version manufactured in autumn 2014 or later (FO 400 N)

    Product advantages

    Downloads

    General downloads:

    Additional information:

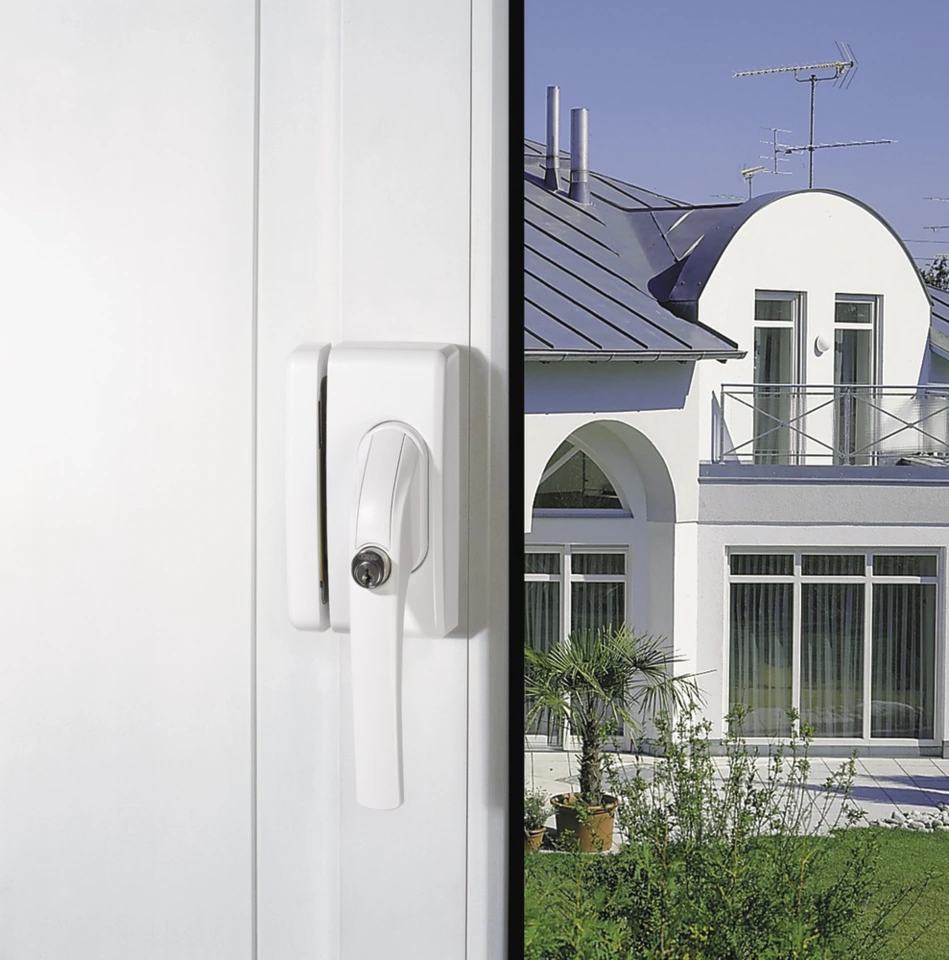

    ULTIVEST Wireless Window Protection System
    ULTIVEST Wireless Window Protection System
    Specifications
    Battery - max. battery life: 2 a
    Battery type: 2 x 1.5 V AA alkaline batteries, Varta Industrial / Industrial Pro, Duracell Industrial, Panasonic Powerline
    Certifications: VdS
    Colour: white
    Connections: Clamping terminal
    DC power supply: 3 V
    Detection method: Magnetic field measurement
    Dimensions: (WxHxD) 71x210x103 mm
    Environmental class: II
    Gross weight: 1.82 kg
    Height: 210 mm
    Housing material: ABS
    Length: 103 mm
    Max. Air humidity: 90 %
    Max. Operating temperature: 55 °C
    Max. Transmit range (free field): 100 m
    Max. Transmitting range (building): 30 m
    Mechanical protection: Yes
    Min. operating temperature: -10 °C
    Modulation: FM
    Mounting location: Windows
    Net weight: 1.682 kg
    PSTI conformity needed: No
    Product group: Detectors
    Radio frequency: 868.662 MHz
    Radio power: 10 mW
    Sensor type: Reed contact, magnetic field sensor system
    Tamper monitoring: Yes
    Technology: Mechatronics
    Type of protection: Intrusion protection
    VdS approval no.: M 100304
    VdS class: other
    Voltage monitoring: Yes
    width: 71 mm
