    Tube Camera Module with 2.8 mm Lens for IPCS10020

    Description

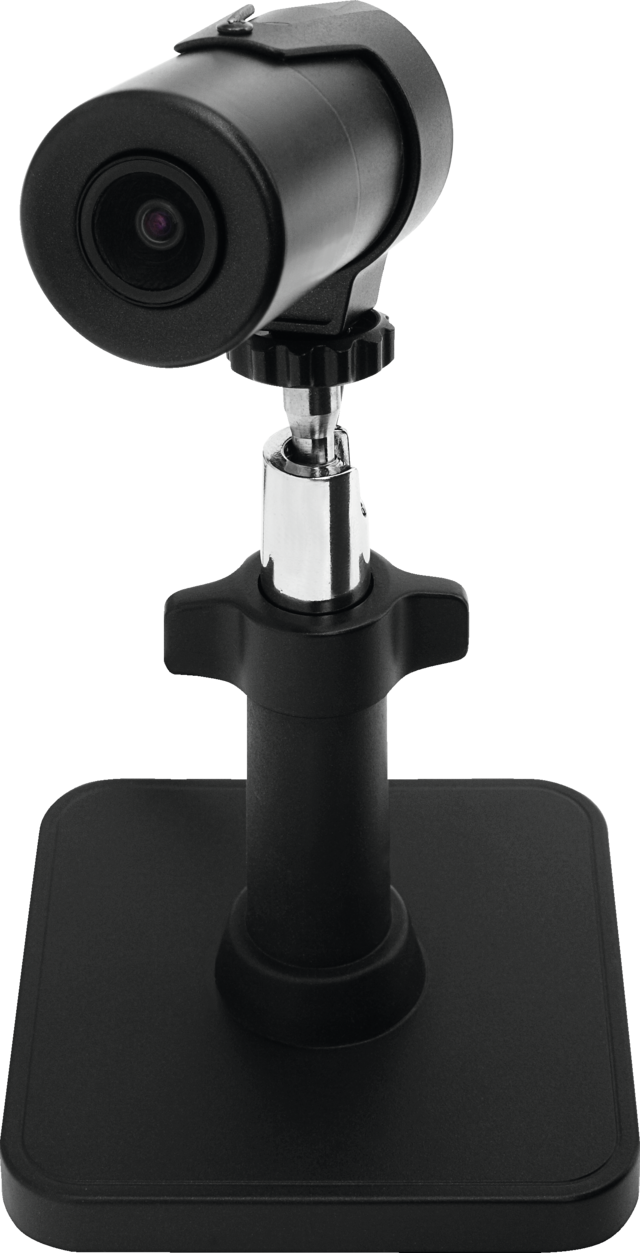

    Discreet surveillance using a mounted arm

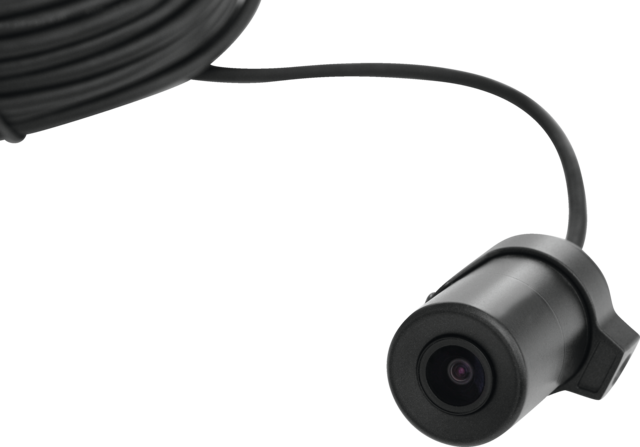

    The tiny camera module, which is not much bigger than a cigarette lighter, is ideal for inconspicuous surveillance. It is attached to the wall or ceiling using the enclosed mounting arm. This means that it can be mounted in a variety of positions, such as behind a counter or hanging from a ceiling profile.

    Disclaimer:
    The legal situation with regard to hidden surveillance may vary considerably from country to country or from region to region. Please check the applicable provisions in your installation location before installing the product.

    For safe and proper operation, this equipment must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure continuous smooth operation with the latest security updates and new functions.

    Product advantages

    • HD 720p resolution: 1280 x 720
    • 2.8 mm miniature lens
    • Angle of view: 92°

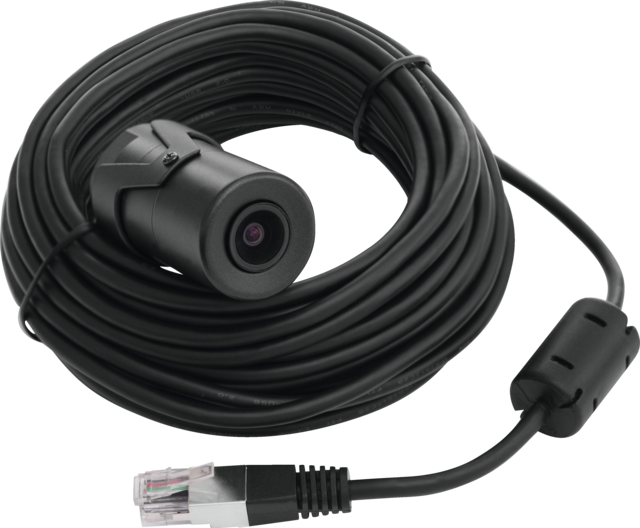

    • 8 m cable length
    • Ideal for discreet video surveillance
    • Includes a compatible bracket

    Downloads

    General downloads:

    Specifications
    Aperture at minimum illumination (color): F2.0
    Application purpose: General surveillance
    Colour: RAL9011
    Compatible with: IPCS10020
    Compatible with ABUS Link Station: No
    Compatible with Secvest: No
    Compatible with wAppLoxx: No
    Compatible with wAppLoxx Pro: No
    Construction type of device: Tube
    Day/night switching: colour/B/W
    Depth: 50 mm
    Diameter: 26 mm
    Dimensions: 26x50 mm
    Focal length: 2.8 mm
    Gross weight: 0.63 kg
    Height: 37 mm
    Horizontal viewing angle: 92 °
    Image sensor: 1/3" Progressive Scan CMOS Sensor
    Lens: Fix
    Max. Operating temperature: 50 °C
    Max. Resolution @ frame rate: 1280 x 720 @ 25 fps
    Min. operating temperature: -10 °C
    Minimum illumination (color): 0.028 lx
    Minimum lighting (B/W): 0.028 lx
    Net weight: 0.286 kg
    PSTI conformity needed: No
    Picture elements (total): 1280x960
    Pixels (effective): 1280x960
    Product group: Camera
    Protection class IP: 24
    Resolution modes: 720p
    width: 26 mm
