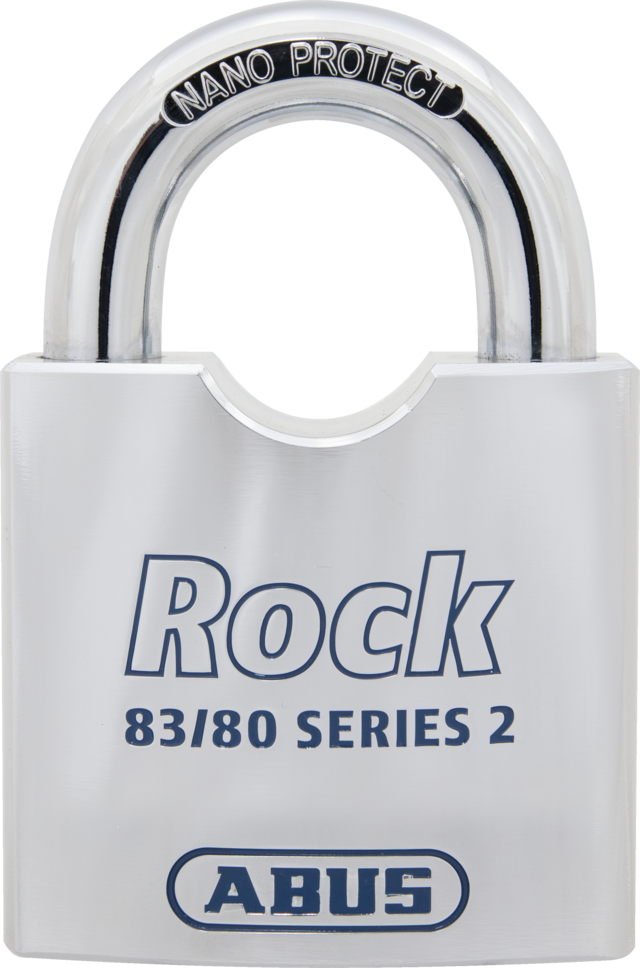

Padlock Steel 83/80 with APf cylinder

Rock 83/80 O

This enormously robust padlock with interchangeable cylinder offers high protection for goods in warehouses, on construction sites and in power stations. The Rock 83/80 O accepts Scandinavian oval cylinders.

  • Security Level 10/10 | ABUS GLOBAL PROTECTION STANDARD ® | A higher level means more security
  • WARNING:  Cancer and Reproductive Harm - www.P65Warnings.ca.gov
All variants for Rock 83/80 O
Description
The Rock 83/80 O with its 80 mm wide lock body is used where high-value assets have to be secured against access and theft.
The padlock secures warehouses, factory gates and industrial containers. It is also used in agriculture and in power stations. It owes its high resistance to attempts to break it open to the material used in its design: the solid lock body and shackle are made of hardened special steel.
The lock can also optimise key management: you can conveniently integrate it into an existing security system by having your specialist dealer adapt it to existing bittings. This is because the Rock 83/80 O for Scandinavian oval cylinders is designed in such a way that the cylinder can be replaced.
The Rock 83/80 O offers drill and pull resistance against attacks with tools to enhance security. It achieves safety class 5 of 6 according to the European padlock standard EN12320.
Do you want security for your goods? Then choose the rock among locks.

Technologies

  • Lock body and shackle made of hardened special steel
  • Hardened special steel shackle with NANO PROTECT™ coating for very high corrosion protection
  • Double bolted locking mechanism increases the security of the lock
  • Key retaining: locking only with key (when open, the key cannot be removed)
  • Rekeyable: the cylinder can be exchanged and thus also adapted to existing bittings
  • Cylinder protection cap against moisture and dust optionally available
  • HB100: completely removable shackle, especially suitable for use in the GRANIT™ 215 container lock
  • SSF014 Class 4 / EN12320 Class 5
  • Protected against drilling or pulling
  • Version “O”: lock body accepts commercially available oval cylinders

Use and application

  • Protection of items of high value and with a very high risk of theft
  • Suitable, among other things, for securing industrial or company gates, warehouses, trailers, containers and garages
  • Extremely flexible: can be adapted to different requirements in a short time – thanks to its interchangeable cylinder and the possibility to quickly change the shackle

Downloads

General downloads:

Specifications
Locking type: key
Security card: No
Width a: 3 5/32 inch
Vertical clearance c: 1 15/32 inch
Depth e: 1 19/64 inch
Weight [lbs]: 2.68 lbs
Security Level Home Security: 10
Structure: Technical drawing
Technical drawing
type of cylinder: without cylinder
color: silver
Horizontal clearance b: 1 37/64 inch
Shackle diameter d: 19/32 inch
Height f: 4 11/16 inch
Keyed alike: Yes
