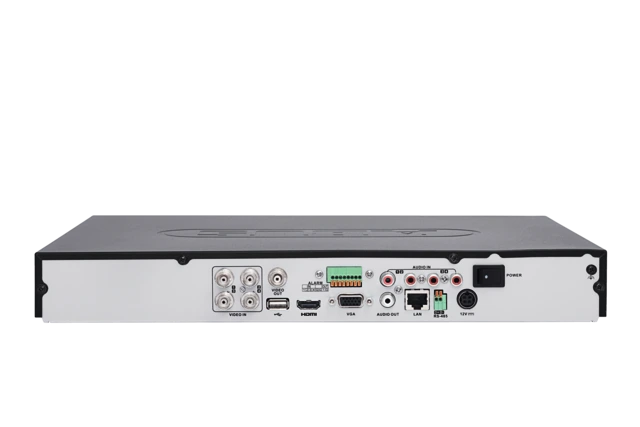

    4-channel analogue HD video recorder back

    4-channel analog HD video recorder

    Description

    Simple installation following the plug & play principle
    The ABUS designed 4-Channel Analogue HD Video Recorder ensures that every recording solution is ready to use straight away – whether it be a retrofitting or a new project set-up with analogue HD technology. Video images can be provided in real-time and for recording as soon as the connection between the camera and recorder is set up using a coaxial or 2-wire connection (accessory: 2-Wire Analogue HD Transmission Set).

    Storage space is doubled thanks to data compression
    The compression of the incoming image data using H.265 technology uses storage space twice as efficiently. Up to 10 TB hard disk drive capacity can be installed, ensuring sufficient storage capacity is made available for sustained recording and any application.

    Very easy and intuitive operation
    Various modes of operation are available with the analogue HD recorder. The video data can be evaluated using a local monitor, browser, the intuitive ABUS CMS software or via the iDVR Plus app for Android/iOS.

    Pentaplex support
    Supports TVI (max 5 MPx), CVI (max 1080p), AHD, CVBS (PAL / NTSC) signals on all BNC inputs
    Support of two additional IP channels up to max. 6 MPx
    Compatible with ABUS IP cameras. See compatibility list in the download area.

    For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

    Product advantages

    • Fanless and silent
    • Pentaplex support: recording and live display of all channels up to 6 MPx (selected ABUS IP cameras, TVI, CVI, AHD, CVBS)
    • Use storage space twice as efficiently: Data compression with H.265
    • Ideal for retrofitting of existing systems to a higher resolution
    • Long cable lengths up to a maximum of 500 m
    • Permanent recording: 1x HDD up to 10TB
    • Easy to operate: can be controlled via local monitor, Internet Explorer, app or ABUS CMS software
    • Support for max. 2 IP cameras

    Downloads

    General downloads:

    Additional information:

    Software:
    Auxiliary programs:

    Installation software:

    Firmware:

    Recycling

    We have summarised for you which disposal information is important in your country.

    Disposal & labelling of packaging

    Specifications
    AC voltage supply: 100 - 240 V
    Alarm inputs (NO/NC): 4
    Alarming: Acoustic warning, OSD signal, email
    Analogue video channels: 4
    Audio: Line In: 4 x RCA (2,0 V p-p, 1000 Ω), Audio Out: 1 x RCA (1000 Ω)
    Audio bitrate: 64 kbit/s
    Audio compression: G.711u
    Camera inputs: 4 x BNC (HD-TVI, HD-CVI, AHD, Analog CVBS)
    Camera outputs: 1 x BNC (Analog CVBS)
    Control: Mouse, PC software, integrated web server
    DDNS: Yes
    Dimensions: 380 x 320 x 48 mm
    HD-SDI video channels: 0
    HD-TVI video channels: 4
    HDMI Out: Yes
    Height: 48 mm
    IP video channels: 2
    Language of instructions: Deutsch, Englisch, Französisch, Niederländisch, Dänisch, Italienisch
    Length: 320 mm
    Loi Sarkozy compliant (only valid for FR): Yes
    Max. humidity: 90 %
    Max. operating temperature: 55 °C
    Min. operating temperature: -10 °C
    Mobile access: ABUS Link Station Lite / Pro (Apple iOS & Android)
    Monitor outputs: 1 x HDMI, 1 x VGA, 1 x Main BNC
    Net weight: 1,16 kg
    Network access: 1 x RJ45 10/100/1000 Mbps
    Network cameras: See compatibility list in the download area
    Network functions: DVR: NAS saving, IP-SAN saving/recorder software: Live view, playback, data export/web interface: Live view, playback, data export, log files, settings/apps: Live view, playback
    Network protocols: TCP/IP, PPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS
    Number of HDDs: 1
    OSD language: Deutsch, Englisch, Französisch, Niederländisch, Dänisch, Italienisch
    Operating mode: Triplex
    PSTI conformity required: No
    PTZ control: RS-485, HD-TVI
    Power consumption: 10 W
    Pre/post alarm memory: 0-2 / 5-900
    Recording bitrate: 32 Kbit/s up to 10 Mbit/s
    Recording modes: VCA (tripwire, intrusion detection), motion detection, alarm, motion detection and alarm, motion detection or alarm, time schedule, manual
    Recording resolution @ frame rate per camera: 2MPx @ 25 frames/s, 3MPx @ 18 frames/s
    Relay output: 1
    Resolution HDMI output: 1920 x 1080 / 60 Hz, 1280 x 1024 / 60 Hz, 1280 x 720 / 60 Hz, 1024 x 768 / 60 Hz
    Sabotage monitoring video: Yes
    Search modes: Smart search, VCA, event, date & time
    Simultaneous network access: 128 channels
    Software: ABUS CMS software
    Storage: 2 x USB 2.0
    Storage medium: 1 x SATA HDD (max. 10 TB)
    Technology: AHD, CVBS, HD-CVI, HD-TVI, IP
    Total frame rate (PAL): 100 fps
    Total network throughput (input/output): 96Mbit (0 Mbit/96 Mbit)
    Total video channels: 6
    User levels: 2
    Video compression: H.265
    Views: 1 / 4
    Watchdog hardware: Yes
    Web server: Yes
    Width: 380 mm
