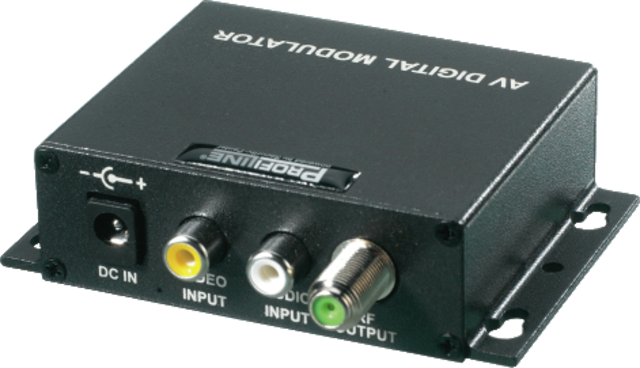

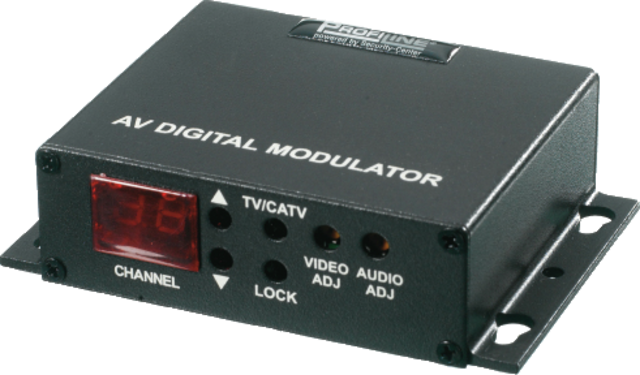

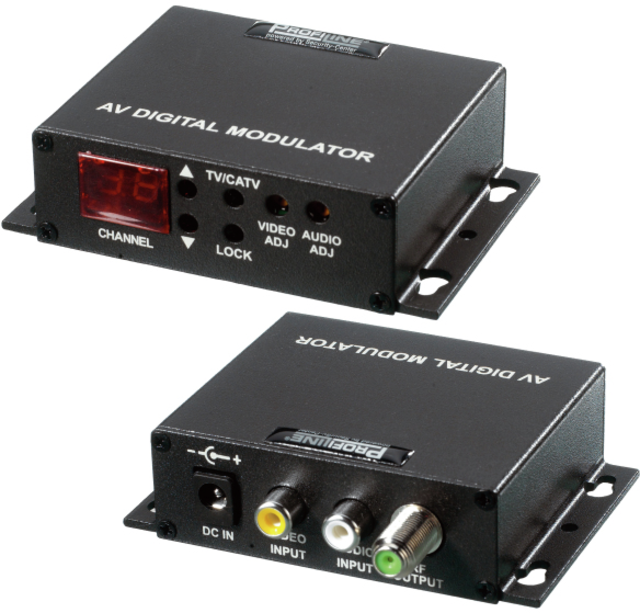

    UHF Modulator
    UHF Modulator
    UHF Modulator

    Digital UHF Modulator

    Product advantages

    • Converts video and audio signals to HF signals
    • Cinch video and audio input
    • HF output (F plug): 90 dBµV min
    • Transmission range: 470 - 883 MHz

    Downloads

    General downloads:

    Recycling

    We have summarised for you which disposal information is important in your country.

    Disposal & labelling of packaging

    Specifications
    Audio input: 0.5 Vp-p − 1.0 Vp-p
    Certifications: CE
    Current consumption: 300 mA
    DC power supply: 9 − 12 V
    Dimensions: (W x H x D) 75 x 25 x 64 mm
    Height: 25 mm
    Image/sound carrier ratio: (Preset) 15-+ 1 dB
    Length: 64 mm
    Max. Air humidity: 90 %
    Max. Operating temperature: 55 °C
    Min. operating temperature: -20 °C
    Net weight: 0.141 kg
    Product group: Accessories
    Signal-to-noise ratio: -55 (typisch) dB
    Video input: 0,7 − 1,2 Vss
    Video input impedance: 75 O
    WEEE group: 09
    width: 75 mm
