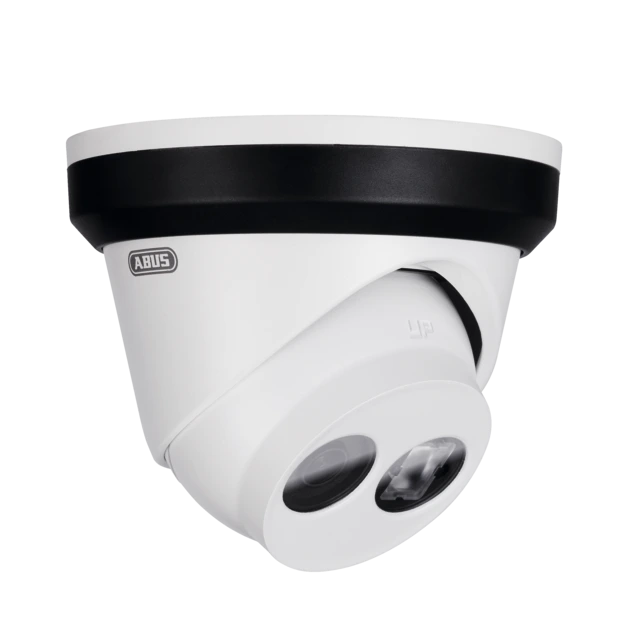

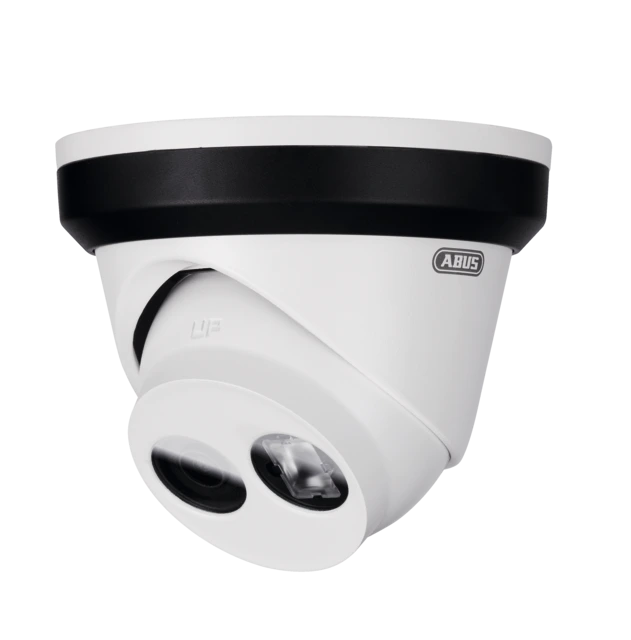

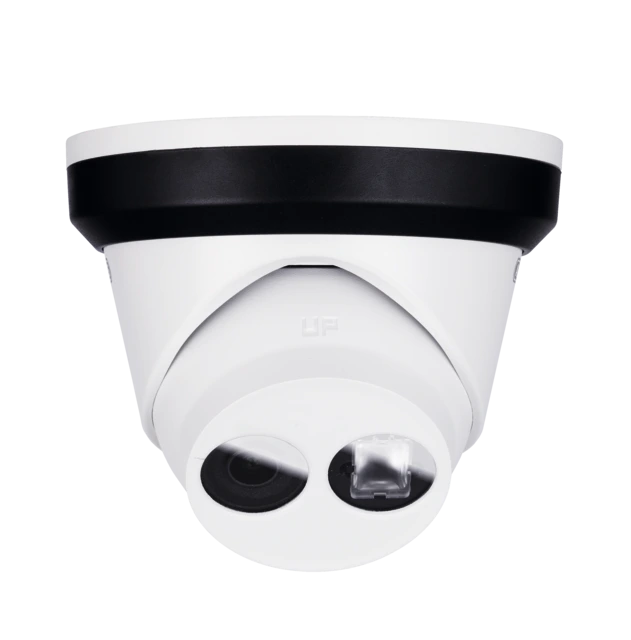

    IP Dome 4 MPx (4 mm)

    Description

    4 MPx 24/7 outdoor surveillance

    The IP Dome provides video streams in 4 MPx resolution with up to 25 fps. The weatherproof IP67 housing with shock resistance IK10 ensures optimum protection against sabotage and vandalism. This fact makes outdoor use possible and due to integrated IR LEDs, the camera can be used day and night. Access to the camera is possibly any time via app.

    Best overview

    The IP Dome IPCB74515B with a 4 mm fixed lens provides an overview of a range of 88°. The camera is therefore characterized by high flexibility. It can be used universally indoors and outdoors for any application requirement.

    Recording and compatibility

    The recording can be done either on an ABUS recorder, 3rd party video management software or locally on a microSD card. Furthermore, the camera is compatible with the ABUS Secvest alarm center and the ABUS access control system wAppLoxx.

    Comfortable installation

    The IP Dome is mounted on the ceiling or optionally with a bracket on the wall. We recommend our installation box (TVAC31300) and the wall bracket (TVAC31320). The free “ABUS IP Installer” software is available for simple setup in the network. The software finds the camera quickly and easily within the network and supports during the installation process.

    Note: The camera does not come with a power supply, as it can be powered via PoE.

    For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

    Product advantages

    • 4 MPx Resolution: 2.688 x 1.520 @ 30 fps
    • 4 mm fixed lens
    • Ultra low-light performance for excellent results in low-light environments
    • 120 dB WDR function to compensate for image contrasts
    • Weather protected housing (IP67)
    • IR LEDs (range up to 30m)
    • Supports H.264, H.265, MJPEG (incl. dynamic GOP)
    • microSD card slot for internal data storage
    • 12 V DC & PoE (802.3af)

    Downloads

    General downloads:

    Additional information:

    Software:
    Firmware:

    Installation software:

    Recycling

    We have summarised for you which disposal information is important in your country.

    Disposal & labelling of packaging

    Specifications
    Alarm generation: E-Mail, NAS, FTP
    Aperture at minimum illumination (color): F1.6
    Application purpose: General surveillance
    Article program: Professional
    Backlight compensation: WDR, BLC, HLC
    Camera type: Dome
    Colour: RAL9003
    Compatible with: NVR, Hybrid DVR, IPCam Plus
    Compatible with ABUS Link Station: Yes
    Compatible with Secvest: Yes
    Compatible with wAppLoxx: Yes
    Compatible with wAppLoxx Pro: Yes
    Connections: 1 x RJ45, 1 x DC
    Construction type of device: Dome
    Current consumption: 500 mA
    DC power supply: 12 (+/-10 %) V
    Day/night switching: ICR/Color/B/W
    Dimensions: (LxWxH) 143x143x100 mm
    Dynamic range (WDR): 120 dB
    Electronic shutter: 1/3 - 1/100000 s
    Encryption: HTTPS
    Focal length: 4 mm
    Frame rate: 1/16, 1/8, 1/4, 1/2, 1, 2, 4, 6, 8, 10, 12, 15, 16, 18, 20, 22, 25, 30 fps
    Height: 100 mm
    Horizontal viewing angle: 88 °
    ICR day/night function: Yes
    IR LEDs: Yes
    IR range (up to): 30 m
    Image optimization: WDR, BLC, HLC, 3D DNR, Vertical Display
    Image sensor: 1/2.5" Progressive Scan CMOS
    Language Manual: DE, UK, FR, NL, DK
    Language OSD: DE, UK, FR, NL, DK
    Length: 143 mm
    Lens: Fix
    Lens mount: M12
    Max. Air humidity: 95 %
    Max. Operating temperature: 60 °C
    Max. Resolution @ frame rate: 2688 x 1520 @ 30 fps
    Microphone: No
    Min. operating temperature: -30 °C
    Minimum illumination (IR): 0 lx
    Minimum illumination (color): 0.008 lx
    Motion detection: 8 zones
    Net weight: 0.69 kg
    Network bandwidth Video: 32 kBit/s - 16 MBit/s
    Network camera protocols: IPv4/v6, HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DynDNS, NTP, RTSP, TCP, UDP, DHCP, ONVIF Profile S, ONVIF Profile G, ABUS Server, Secvest Link
    Network connection: RJ45
    Network connection LAN: RJ45 10M/100M self-adaptive
    Noise suppression: 3D DNR
    Number of IR LEDs: 10
    Number of streams: 3
    Number of users: 32
    Other functions: Auto Backup Recording, Secvest Connectivity
    PSTI conformity needed: No
    Pixels (effective): 2688(H) x 1520(V)
    PoE Standard: IEEE 802.3af
    Power consumption: 9 W
    Privacy zones: 4
    Product group: Camera
    Protection class IP: 67
    Radio functions: Scene Change Detection
    Resolution: 4 MP
    Resolution modes: Stream 1: 2.688 x 1.520 @ 25 fps, Stream 2: 640 x 480 @ 25 fps, Stream 3: 1.280 x 720 @ 25 fps
    Simultaneous network access: 6
    Storage medium: microSD card, 256 GB (opt.)
    Supported browsers: IE10, IE11, Mozilla Firefox 30.0+, Chrome 31.0+
    Vertical angle of view: 46 °
    Video Content Analysis (VCA): Tripwire Detection, Intrusion Detection
    Video compression: Stream 1: H.264, H.265, Dynamic GOP, Stream 2: H.264, H.265, MJPEG, Stream 3: H.264, H.265, MJPEG
    Video system: IP
    WEEE group: 09
    White balance: AWB, Manual
    width: 143 mm
