    Secvest Hybrid module Set

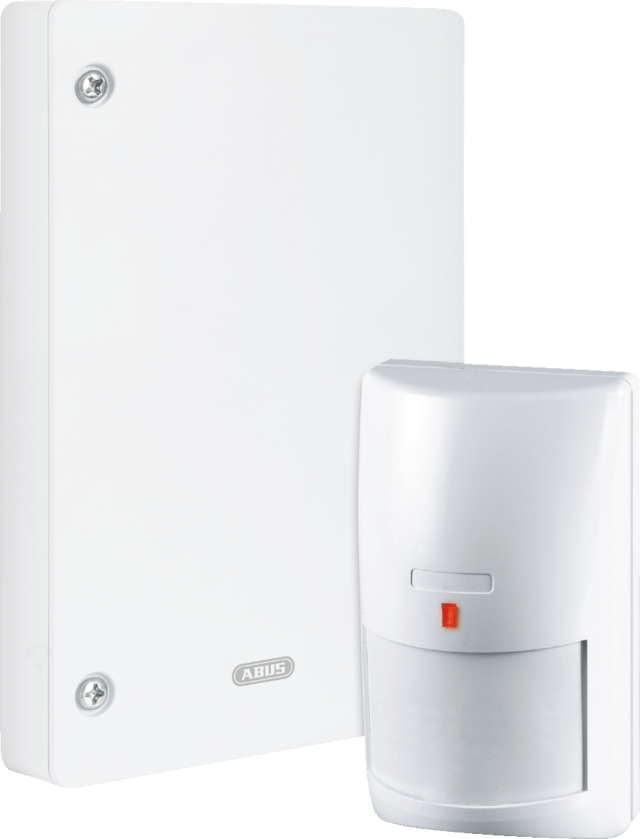

    Secvest Hybrid module Set Motion detector

    Description


    For efficient expansion of the Secvest wireless alarm system with wired alarm detectors via the Secvest hybrid module.

    Secvest plus hybrid module: more range and applications
    Once the hybrid module is learnt in, the Secvest can be extended by 10 wired zones and four relay outputs. A maximum of two modules can be integrated per control panel. This means that detectors (20xFSL or 10xCC) and components for extensions or new buildings can be integrated, larger distances can be reached and new object sizes can be realized. On the other side, wired alarm detectors can be integrated into the Secvest via the hybrid module.

    Networking and home automation
    The hybrid module allows the integration of the ABUS wAppLoxx independently from the installation location of the control panel. In addition, ABUS IP cameras can be integrated via the WLX Control or the Secvest control panel. The four additional relay outputs also enable numerous applications from the field of home control. For example, the operation of the garage door, house lighting or shutter control.

    For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

    Individual component

    Duplex Motion Detector
    Drahtmelder
    Duplex Motion Detector
    to the product
    • Passive infrared motion detector for indoor areas
    • Detects heat movements
    • Two logical AND-gated PIR sensors
    Secvest Hybrid Module
    Secvest 2WAY wireless alarm system
    Secvest Hybrid Module
    to the product
    • Secvest wireless alarm system with additional wired alarm components
    • Maximum of two hybrid modules per Secvest control panel integrated via wireless connection
    • A total of 20 wired detectors and 8 relay outputs can be added for full version
    • Monitoring of additional building sections and implementation in new buildings
    • Option of integrating the wAppLoxx access control system
    • Option of controlling lighting, rolling shutters or garage door
    • EN Grade 2-compatible in combination with the Secvest wireless alarm system and an external PSU
    International Switching-Mode Power Supply 13,8 V/1,75 A (Cord)
    Other
    International Switching-Mode Power Supply 13,8 V/1,75 A (Cord)
    to the product
    • 13.8 V power supply unit for optimum external power supply
    • Suitable for FUAA50000 and FUAA50500

    Product advantages

    Downloads

    General downloads:

    Recycling

    We have summarised for you which disposal information is important in your country.

    Disposal & labelling of packaging

    Secvest Hybrid module
    Secvest Hybrid module
    Specifications
    Cover monitoring: No
    Depth: 310 mm
    Dimensions: 310x220x160 mm
    EN: Level 2
    Gross weight: 1.323 kg
    Height: 160 mm
    Length: 310 mm
    Mechanical protection: No
    Net weight: 1.081 kg
    PSTI conformity needed: No
    Product group: Extension
    VdS class: ohne
    WEEE group: 19
    width: 220 mm
