    Terxon MX Alarm Control Panel

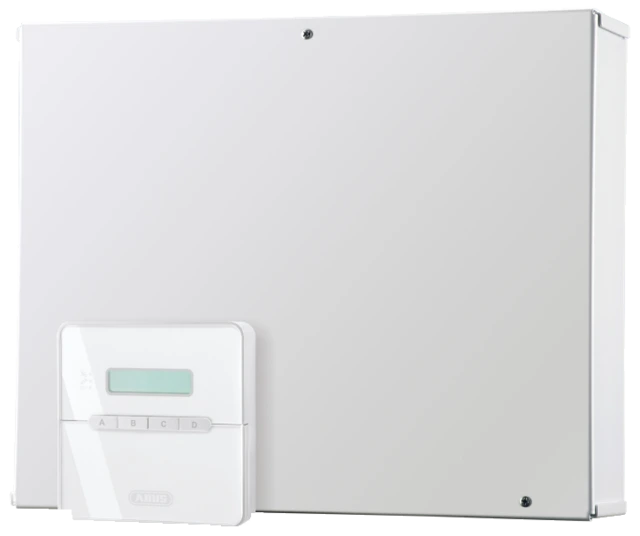

    Terxon MX Alarm Control Panel front view right
    AZ4100

    Terxon MX Alarm Control Panel

    Description

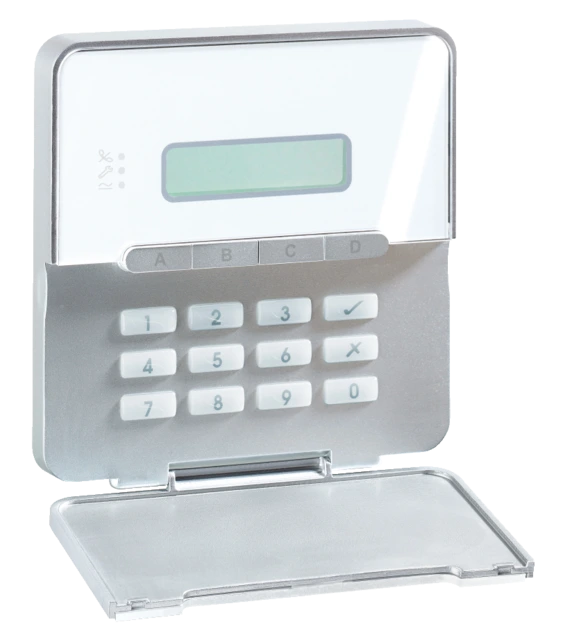

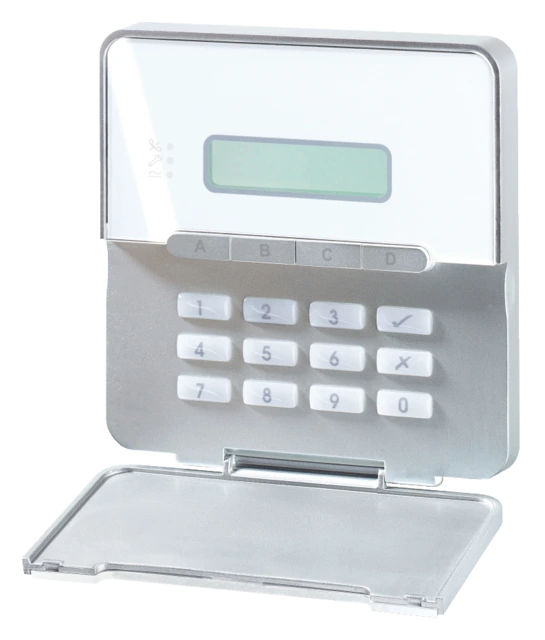

    The Terxon MX Alarm Control Panel is the burglary alarm system made by ABUS Security-Center. This alarm device allows you to integrate all wired detectors and all wireless components of the Secvest 2WAY, thus extending the system into a hybrid system. Up to 32 alarm zones guarantee complete all-over protection. From private homes to larger building complexes: The Terxon MX provides many options for securing your property. The motherboard offers 8 freely programmable zones for 8 wired detectors. Zone 9 is configured as tamper zone. Extension modules can be connected via 4-wire bus cables - for 8 wireless zones or 8 wired zones. The motherboard of the Terxon M provides 1 transistor output and 2 relay switching outputs, which are activated in the case of specific events (alarm, fire, or robbery). If desired, you can incorporate an additional relay board with 8 outputs in the Terxon MX. The scope of delivery already includes an LCD keypad, which allows the system to be conveniently programmed or activated and deactivated. Three additional control units can be connected. The system can also be programmed via PC. You can configure the Terxon MX as a single-user system or as a partitioned system. It has an integrated telephone dialling unit (AWUG).

    For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

    Product advantages

    • Expandable as a hybrid system up to 32 zones
    • 4 partitions enable independent security for multiple building sections
    • Programming with LCD key pad or software
    • Integrated analogue dialler for transmitting digital monitoring centre protocols
    • High security because of tampered panel, control panels and detectors

    Downloads

    General downloads:

    Certificates:

    Software:
    Installation software:

    Recycling

    We have summarised for you which disposal information is important in your country.

    Disposal & labelling of packaging

    Terxon MX Alarm Control Panel
    Terxon MX Alarm Control Panel
    AZ4100
    AZ4100
    AZ4100
    AZ4100
    Specifications
    AC voltage supply: 230 V
    Alarming: integrated analogue Dialer for transmission of digital ARC protocols
    Backup power supply: 1
    Battery - type: 12V DC, 7.0 Ah lead rechargeable battery
    Communication/alarm: Integrated analog dialer for transferring digital monitoring station protocols
    Connections: 230 V screw terminal, 13.8 V screw terminal, loudspeaker, zone-screw terminal, 11 x switching outputs, RS-232, PSTN
    Dimensions: (WxHxD) 390x310x90 mm
    Display: Two-line LCD alphanumerical display
    Environmental class: II
    Event memory: Yes
    Expandable (hybrid): Yes
    Fuse: 230 V / 250 mA; 12 V: 1 A fast; battery: 2 A fast
    Height: 310 mm
    Housing material: Alarm centre: Metal,keypad: ABS
    Integrated siren: No
    Length: 90 mm
    Max. backup power supply duration: 12 h
    Max. battery charging time: 24 h
    Max. humidity: 75 %
    Max. number of control units: 4
    Max. operating temperature: 40 °C
    Min. operating temperature: -10 °C
    Net weight: 5 kg
    Number of control units: 4
    Number of events: 250
    Number of sabotage zones: 1
    Number of users: 16
    Number of wired zones: 8
    OSD language: 11 selectable languages
    PSTI conformity required: No
    Power consumption: 200 mA
    Programming 1: Via control panel, per software, per modem
    Protocols: NSL: Fast Format, Contact ID, SIA
    Remote configuration: Yes
    Sabotage lines: 2
    Sabotage monitoring: 1
    Security level: 2
    Sub-areas/monitoring areas: 4
    Switching outputs: 1 x 500 mA transistors, 2 x 1000 mA relays, 8 x 50 mA transistors, freely programmable
    Voltage monitoring: Yes
    Width: 390 mm
    Zone closure: NC, DEOL
