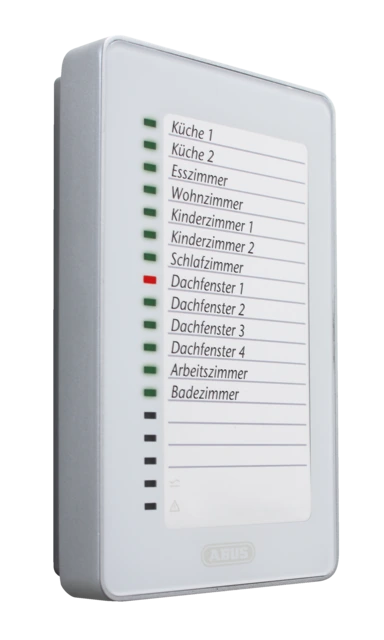

    Wireless Display Module front view right

    Wireless Display Module

    Description

    The wireless display module provides a quick overview of the status of the Secvest detectors in the house. You can see at a glance whether a detector or a window is open or closed. The module has a convenient status display for the FTS 96 E wireless window protection system and the Secvest wireless magnetic contact detectors - even in stand-alone mode without the alarm panel. However, if the window protection systems are operated in combination with a Secvest 2WAY, the display module is an important supplement: window protection system and wireless magnetic contact detectors can be taught-in to the display module and the alarm panel at the same time.

    For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

    Funk-Anzeigemodul

    Product advantages

    • 16 individually programmable display channels
    • Compatible with mechatronic and Secvest wireless opening detectors
    • 2 LED status indicators
    • Standalone solution for displaying the status of connected detectors

    Downloads

    General downloads:

    Recycling

    We have summarised for you which disposal information is important in your country.

    Disposal & labelling of packaging

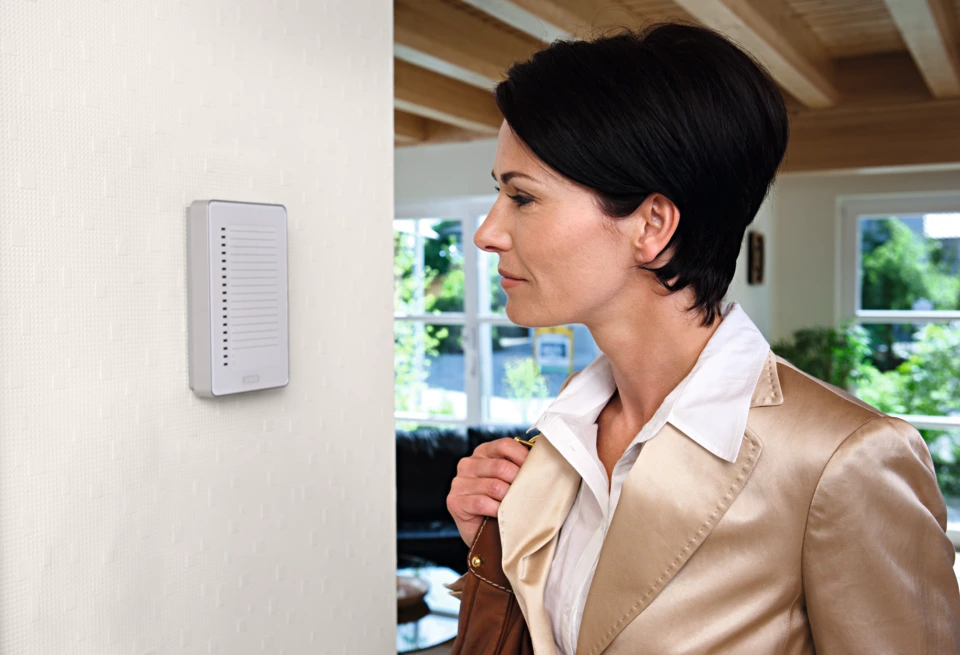

    Wireless Display Module Example of application
    Wireless Display Module Example of application
    Specifications
    Compatible with: Secvest, Terxon
    DC voltage supply: 12 V
    Dimensions: (WxHxD) 135x220x45 mm
    Display: 18 LED status displays
    Environmental class: I
    Height: 220 mm
    Housing material: ABS
    Length: 45 mm
    Max. operating temperature: 50 °C
    Max. receiving range (building): 30 m
    Max. receiving range (free field): 100 m
    Min. operating temperature: 0 °C
    Modulation: FM
    Net weight: 0,52 kg
    PSTI conformity required: No
    Power consumption: 150 mA
    Radio frequency: 868 MHz
    Width: 135 mm
