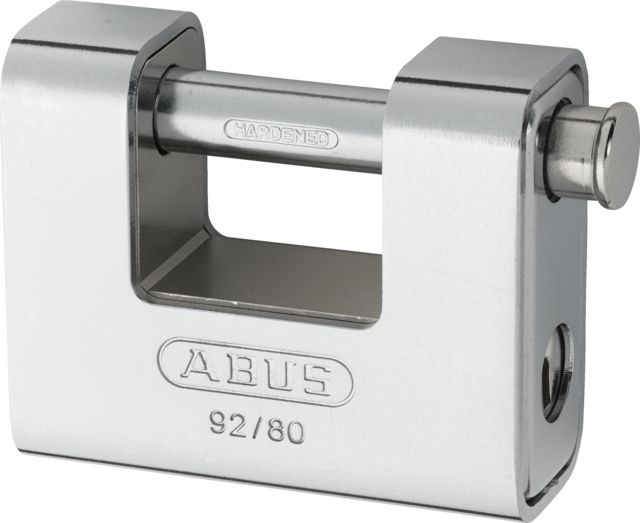

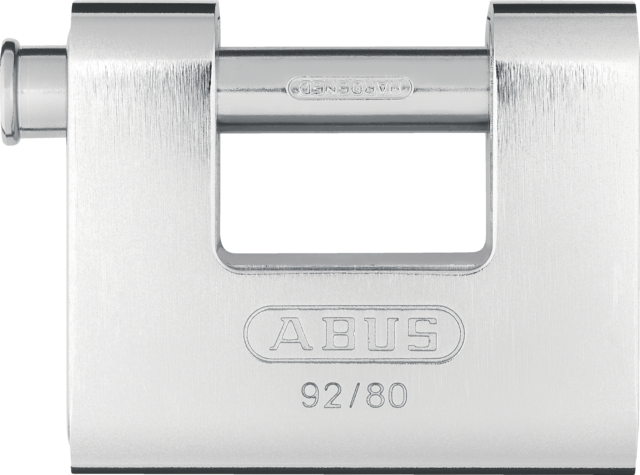

Padlock Steel 92/80

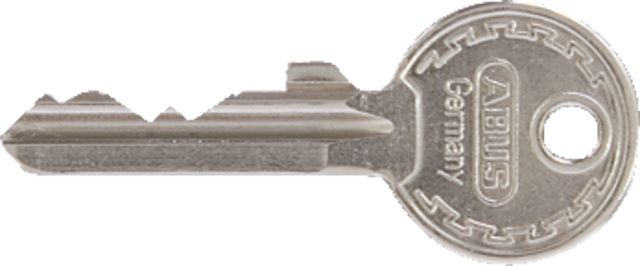

Key

92 Monobloc

The Monobloc 92 is the padlock for hard-to-reach and confined areas. Ideal for roller grilles, vending machines or also sea containers, among other things.

  • Security Level 8/10 | ABUS GLOBAL PROTECTION STANDARD ® | A higher level means more security
All variants for 92 Monobloc
Description
The solid Monobloc 92 padlock provides security where other locks are too bulky.
If you want to secure sea containers or vending machines with a padlock, for example, you often do not have enough space. Attaching padlocks with a round shackle does not always work in such locations.
The Monobloc 92 is the solution here: its straight locking bolt is pulled out on the cylinder side. This design of the solid brass padlock allows for easy handling even in tight spaces.
A steel casing around the lock body protects against cylinder drilling and pulling. The locking bolt made of hardened steel is also extremely resistant to break-open attempts.
To prevent the padlock from being locked accidentally, it can only be locked using a key.
The Monobloc 92 proves that a padlock does not have to take up a lot of space to be really secure.

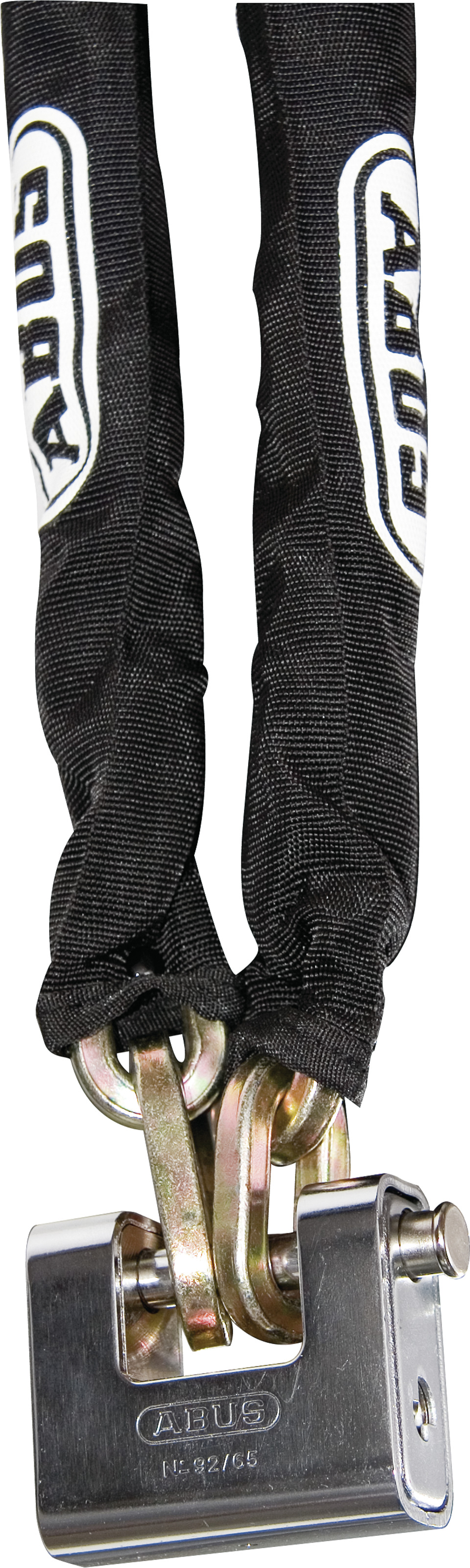

Application example - Monobloc 92

Technologies

  • Lock body made of solid brass with steel casing
  • Locking bolt made of hardened steel
  • Drill and pull resistance against attacks with drills and pliers
  • Precision pin cylinder
  • Includes two keys

Operation and use

  • For securing roller grilles, vending machines, containers, trucks and gates, for example
  • Particularly suitable where other padlocks are too bulky (e.g. sea containers) – locking bolt is pulled out on the cylinder side
  • Also ideal as a padlock for the ABUS chain 8KS

Variants

  • Sizes: 65 and 80 mm

Downloads

General downloads:

Specifications
Locking type: key
colour: silver
Horizontal clearance b: 37 mm
Shackle diameter d: 12 mm
Height f: 65 mm
Keyed alike: No

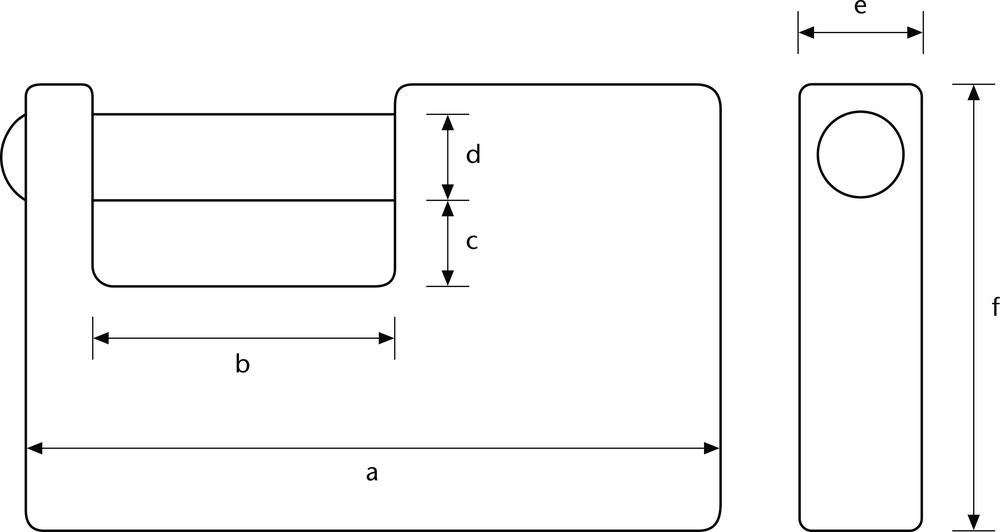

Design: Technical drawing
Technical drawing
Security card: No
Width a: 78 mm
Vertical clearance c: 17 mm
Depth e: 29,5 mm
Weight [g]: 812 g
Security Level Home Security: 8
