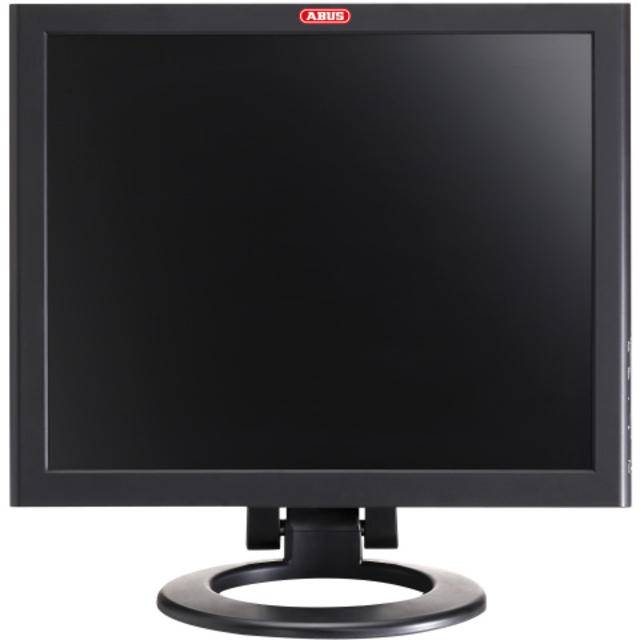

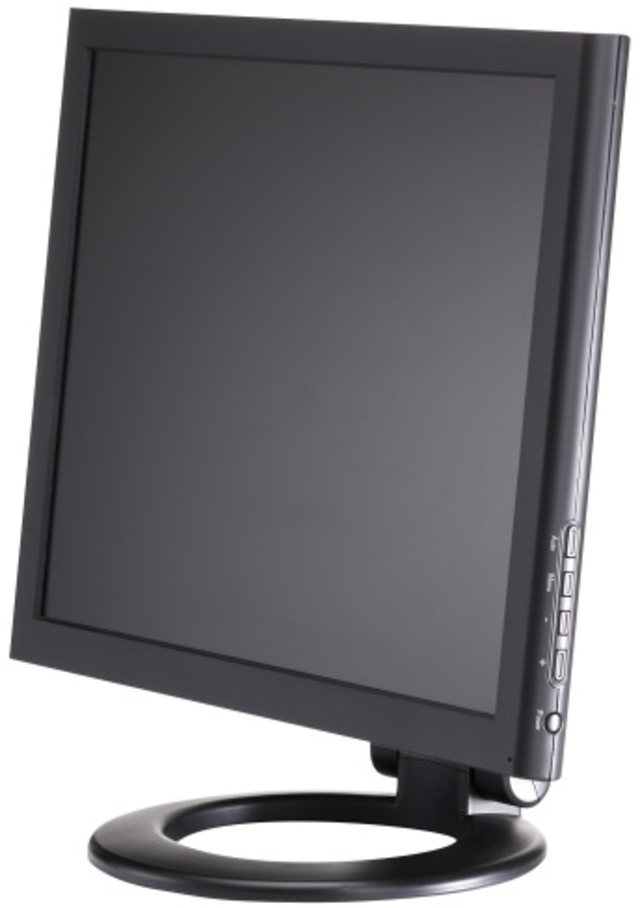

19" TFT Color Monitor front view 19" TFT Color Monitor left view

19" TFT Color Monitor

Description

The black 19" TFT monitor in new design offers excellent picture quality and rapid response time for optimal image fidelity. The integrated BNC connection and the wide range of interfaces equip the monitor to meet the challenges of professional video surveillance systems. All settings can be viewed effortlessly on the multilingual On-Screen Display (OSD). The configuration also includes an integrated loudspeaker and audio input/output, as well as automatic signal detection and a 2D comb filter for a softer and clearer image without the disruptive Dot Crawl Effect.

For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

Product advantages

  • Fast response time (5 ms)
  • High resolution: 1280 x 1024 pixels
  • Graphical on-screen display (OSD)
  • Integrated loudspeaker
  • Inputs: 1 x VGA, 1 x BNC, 1 x cinch (audio)
  • Outputs: 1 x BNC, 1 x cinch (audio)

Downloads

General downloads:

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging
Specifications
Brightness: 250 cd/m²
Colour levels: 16,2
Comb filter: 2D
Connections: VGA, 2 x BNC, Audio-Cinch In&Out
Contrast ratio: 800:1
DC voltage supply: 12 V
Dimensions: (WxHxD) 425x415x240 mm
Display surface: Matte
Height: 415 mm
Housing material: Plastic
Image format: 4:3
Length: 240 mm
Loudspeaker: Integrated 2x0.5 W
Max. humidity: 80 %
Max. operating temperature: 60 °C
Min. operating temperature: 0 °C
Monitor type: TFT standard
Net weight: 4,5 kg
OSD language: multilingual
Power consumption: 2.750 mA
Reaction time: 5 ms
Screen diagonal: 19 in
Signal detection: Automatic
Video system: PAL / NTSC
Viewing angle horizontal/vertical: 170/160
Width: 425 mm
