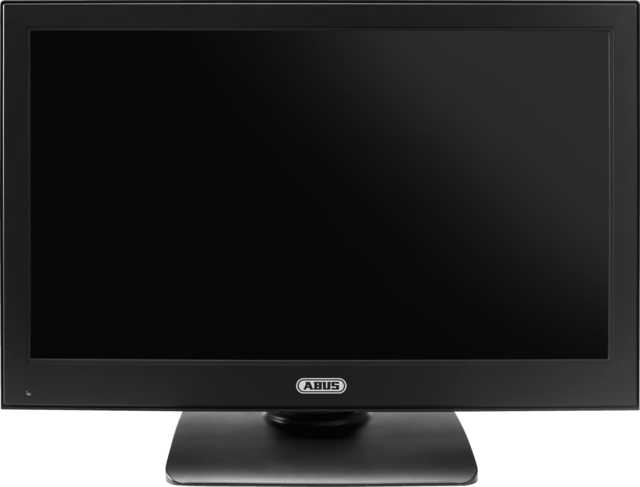

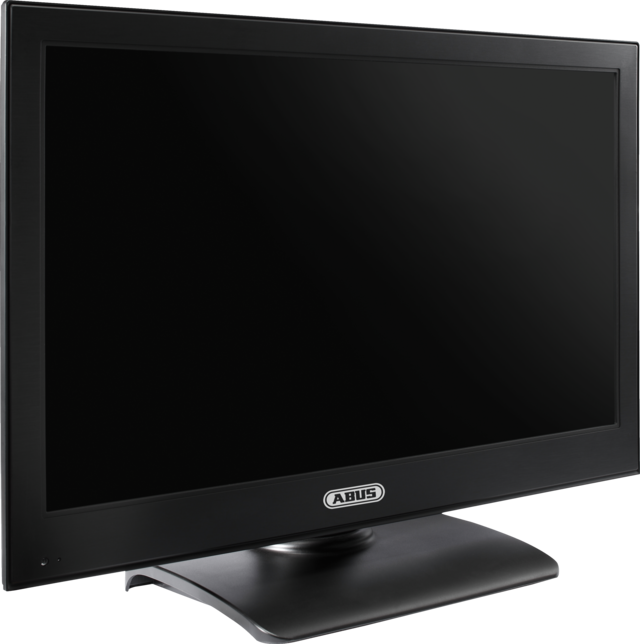

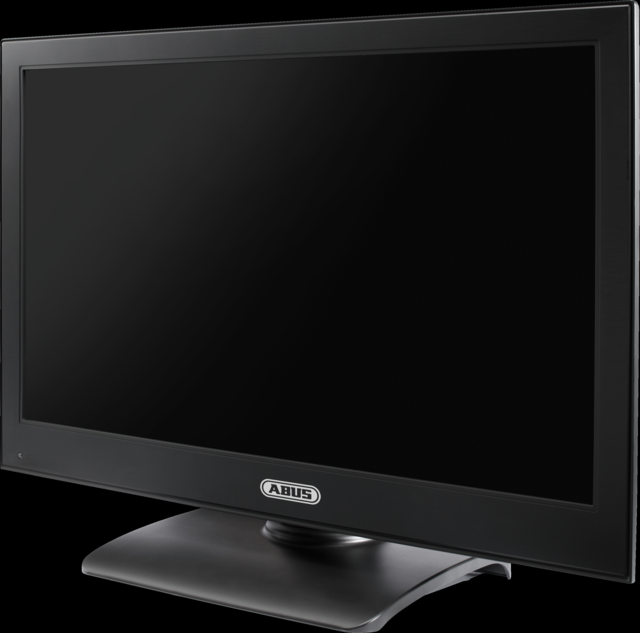

    23.6" LED Monitor

    Description



    Detailed surveillance pictures in Full HD
    With its high resolution in HD1080p, outstanding picture fidelity and fast reaction time, the monitor produces accurate surveillance pictures. The LED backlighting ensures optimum contrast and an extremely realistic color display. The monitor is also equipped with two audio inputs, as well as automatic signal detection and a 3D comb filter for a softer and clearer image without the annoying dot-crawl effect.

    Versatile connections

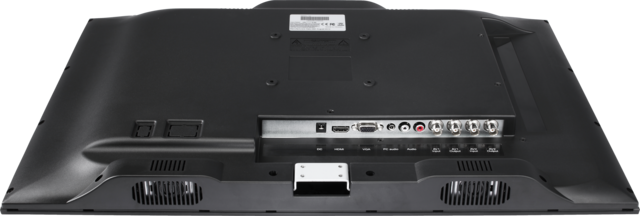

    Four connections ensure great flexibility when connecting the monitor to recorders, cameras, etc. The HDMI connection makes the monitor perfect for displaying Full HD pictures. Another VGA connection as well as two BNC inputs provide additional options - which makes the monitor a suitable component for versatile surveillance systems.

    Professional HD surveillance
    Thanks to Full HD resolution (1920 x 1080 pixel), the monitor produces high resolution images for professional surveillance. Furthermore, high-quality industry components ensure the monitor operates reliably for 24/7 use. The efficient LED display ensures very low power consumption.

    Easy installation
    VESA standard mounts can be used to fix it to a wall or ceiling. This makes installation fast and easy.

    For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

    Product advantages

    • Full HD resolution: 1920 × 1080 pixels
    • Fast response time (5 ms)
    • LED background illumination: Superior colour display and contrast
    • Graphical on-screen display (OSD)
    • Connections: HDMI, VGA, 2 × BNC, 2 × cinch (audio), PC audio
    • Integrated loudspeaker
    • Low power consumption
    • For wall and ceiling installation (with VESA mount)

    Downloads

    General downloads:

    Recycling

    We have summarised for you which disposal information is important in your country.

    Disposal & labelling of packaging

    Specifications
    Brightness: 300
    Color levels: 16.7
    Comb filter: 3D
    Connections: 1 x HDMI, 1x VGA, 2 x BNC, 1 x audio (3.5 mm jack), 2 x chinch audio, 2 x BNC-Out
    Contrast ratio: 10.000:1
    Current consumption: 3,000 mA
    DC power supply: 12 V
    Dimensions: 580 x 407 x 75 mm
    Display surface: matte
    Frequency range: 30 − 80KHz (H) / 50 − 75Hz (V) GHz
    Gross weight: 6.2 kg
    Height: 425 mm
    Housing material: Plastic
    Image format: 16:10
    Input: 1 x HDMI, 1 x VGA, 2 x BNC, 1 x audio (3.5mm jack), 2 x chinch audio
    Loudspeaker: 2 x 1,5 W
    Max. Air humidity: 85 %
    Max. Operating temperature: 40 °C
    Min. operating temperature: 0 °C
    Monitor type: LED
    Net weight: 6 kg
    Power consumption: 25 W
    Product group: Accessories
    Response time: 5 ms
    Screen diagonal: 23.6 in
    Signal detection: Automatic
    Video output: 2 x BNC
    Video system: PAL / NTSC
    Viewing angle horizontal/vertical: 160° x 160°
    WEEE group: 09
    width: 580 mm
