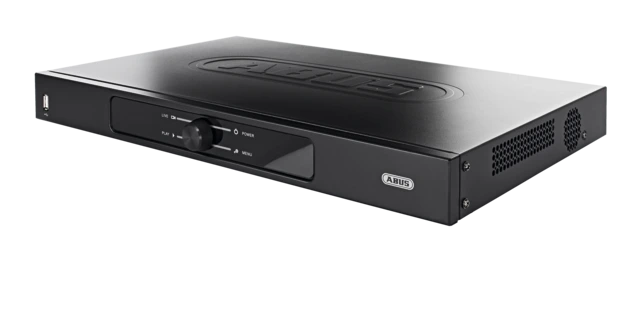

    Video Recorder

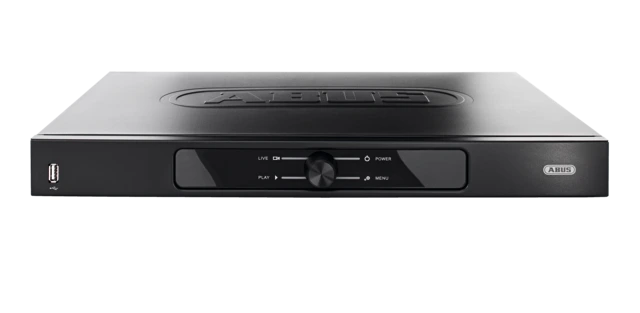

    Video Recorder

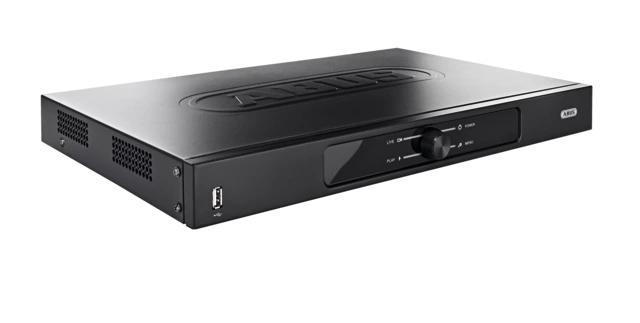

    Video Recorder
    Video Recorder

    4-channel HD-SDI Digital Recorder

    Product advantages

    Downloads

    General downloads:

    Additional information:

    Recycling

    We have summarised for you which disposal information is important in your country.

    Disposal & labelling of packaging

    Specifications
    Alarm generation: Acoustic warning signal, OSD signal, e-mail
    Alarm inputs (NO/NC): 4
    Analog compression levels: 6
    Audio: Audio In: 4 x Cinch (2,0 V p-p, 1000 Ω), Audio Out: 1 x Cinch (600 Ω)
    Camera inputs: 4 x BNC (HD-SDI)
    Certifications: CE
    Control unit: Mouse
    DC power supply: 12 V
    DDNS: Yes
    Data backup: 2 x USB 2.0
    Dimensions: 440 x 275 x 45 mm
    Height: 45 mm
    Hybrid capable: No
    Language OSD: German, English, French, Dutch, Danish, Polish, Swedish, Russian
    Length: 275 mm
    Max. Operating temperature: 55 °C
    Min. operating temperature: -10 °C
    Monitor outputs: 1 x VGA, 1 x HDMI
    NTP: Yes
    Net weight: 2.5243 kg
    Network connection: 1 x RJ45 10/100/1000 Mbps
    Network functions: Live view, playback, data export, settings
    Operation mode: Triplex
    PTZ control: RS-485
    PTZ protocols: PELCO-D, PELCO-P, Samsung, LG-MULTIX
    Power consumption: 55 W
    Pre/post-alarm memory: 0~30 sec. / 5 - 900 sec.
    Recording modes: Manual, schedule, motion detection, alarm, motion detection and alarm, motion detection or alarm
    Recording time at max. resolution & frame rate: 96
    Recording time at min. resolution & frame rate: 246
    Relay output: 4
    Resolution recording @ frame rate per camera (NTSC): 352x 288 @ 30fps, 704x 576 @ 30fps, 1280 x 720 @ 30fps, 1920 x 1080 @ 30fps
    Resolution recording @ frame rate per camera (PAL): 352x 288 @ 25fps, 704x 576 @ 25fps, 1280 x 720 @ 25fps, 1920 x 1080 @ 25fps
    Search modes: By event, date & time
    Simultaneous network access: 128
    Software: ABUS CMS software
    Storage medium: 2 x SATA HDD
    Total frame rate (PAL): 100
    Total network throughput (input/output): 128 MBit/s (0 MBit/s / 128 MBit/s)
    Total video channels: 4
    Video channels HD-SDI: 4
    Video channels IP: 0
    Video channels analog: 0
    Video compression: H.264
    Views: 1 / 4
    WEEE group: 09
    width: 440 mm
