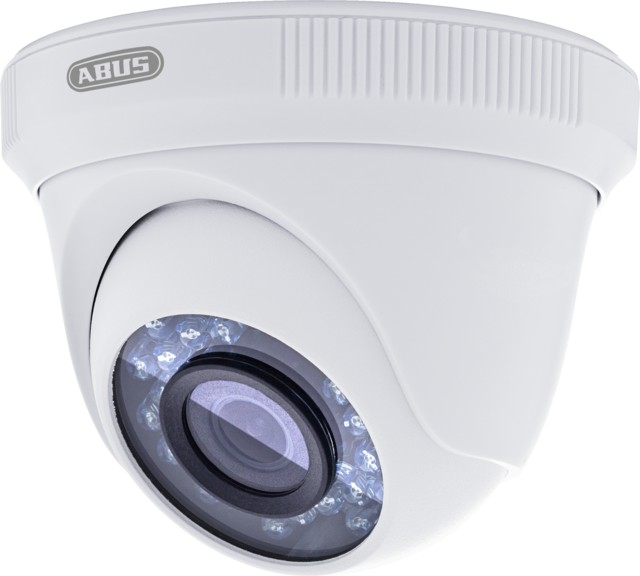

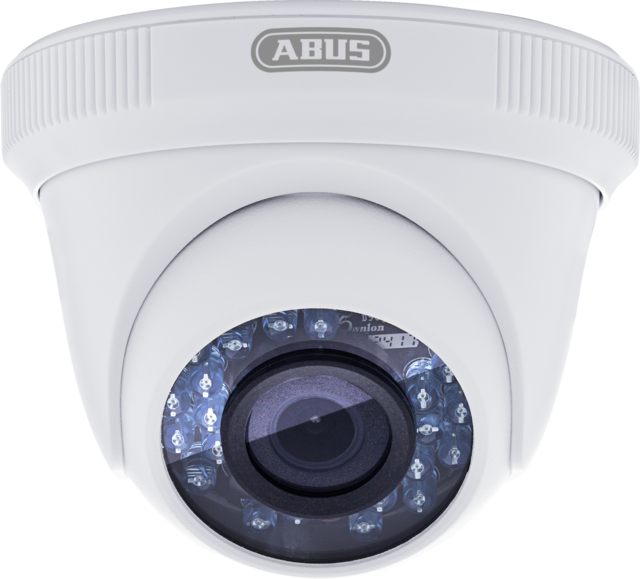

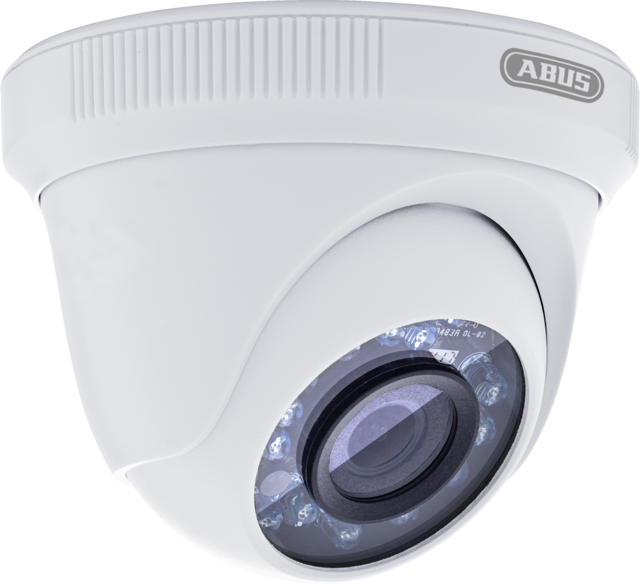

    ABUS Analogue HD Video Surveillance 2MPx mini dome camera
    ABUS Analogue HD Video Surveillance 2MPx mini dome camera
    ABUS Analogue HD Video Surveillance 2MPx mini dome camera

    ABUS Analogue HD Video Surveillance 2MPx mini dome camera

    Description



    Reliable data transmission at high resolution
    Analogue HD cameras offer the best of both worlds, providing secure, problem-free transmission – knowledge of IPs not required – via analogue combined video cable, and also HD resolution with 1920 x 1080 pixels at 25 frames per second, a performance otherwise matched by megapixel cameras from IP technology. And all of this at an attractive price-performance ratio.

    Weatherproof day/night surveillance
    The camera is installed in a robust housing with IP66 protection class and is therefore ideal for outdoor use in all kinds of weather. The integrated IR LEDs and automatic day/night switching provide reliable surveillance day and night. The integrated noise reduction also ensures that the camera produces sharp images even in low lighting conditions.

    Easy commissioning
    Thanks to the supplied combined cable and plug-and-play installation, the camera can be mounted on the ceiling or wall and started up immediately. Even existing BNC cabling can be used.

    The effective IR range depends on the installation location. If there are surfaces that absorb light or no objects that reflect IR light in the field of view, the IR range will be reduced and/or the video image will be too dark. Reflective objects in the immediate vicinity of the camera (e.g. roof gutter or wall) may also result in the reflection of IR light, which can disturb the image.

    Product advantages

    • 2MPx camera for indoors and outdoors
    • Detailed full HD (2MPx) resolution of 1920 x 1080 pixels at 25 frames/second
    • Integrated IR LEDs for optimal night vision
    • Sturdy weatherproof camera housing (IP66)
    • Noise reduction (DNR) for clear images even at low light levels
    • Automatic day/night switching
    • Can be mounted on ceilings and walls
    • Including 1 x 30 m combined video cable (video signal + power supply)
    • Plug&Play installation and connection using a BNC connector, including for existing analogue cables

    Downloads

    General downloads:

    Declarations of conformity:

    Recycling

    We have summarised for you which disposal information is important in your country.

    Disposal & labelling of packaging

    Specifications
    Aperture: F1.2
    Colour: White
    Compatible with: TVVR33xxxxx / HDCC9xxxx
    Compatible with Secvest: No
    Compatible with Smartvest: No
    Compatible with wAppLoxx: No
    DC voltage supply: 12 V
    Day/night switching: Auto
    Dimensions: (Ø x H) 89,5 x 69,8 mm
    Focal length: 2,8 mm
    Gross weight: 1,29 kg
    Horizontal viewing angle: 103 °
    Housing material: Metal / Plastic
    IP protection class: 66
    IR LEDs: Yes
    IR range (up to): 20 m
    IR swivel filter: Yes
    Image sensor: 1/2.8" CMOS
    Lens mount: M12
    Max. humidity: 90 %
    Max. operating temperature: 60 °C
    Max. resolution @ frame rate: 1920 x 1080 @ 25/30 fps
    Min. operating temperature: -40 °C
    Minimum illumination (IR): 0 lx
    Minimum illumination (colour): 0,01 lx
    Net weight: 0,87 kg
    Noise reduction: DNR
    Optical Wave Length: 850 nm
    PSTI conformity required: No
    Power consumption: 4 W
    Technology: Analogue HD
    Video output: 1x BNC (HD-TVI)
