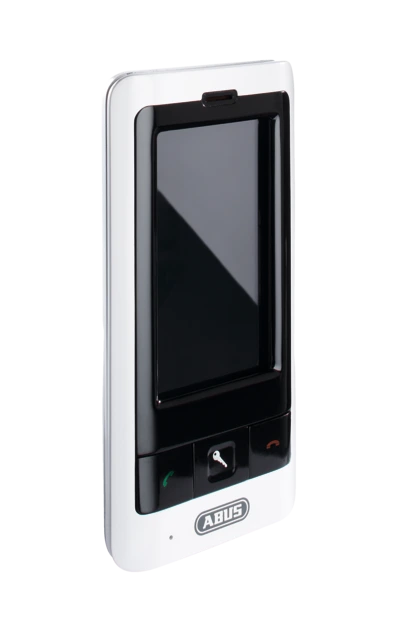

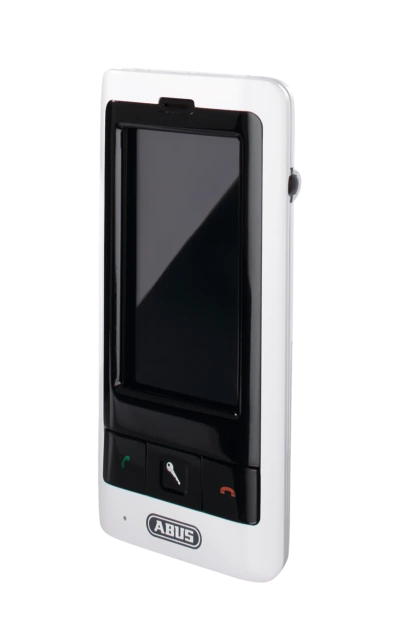

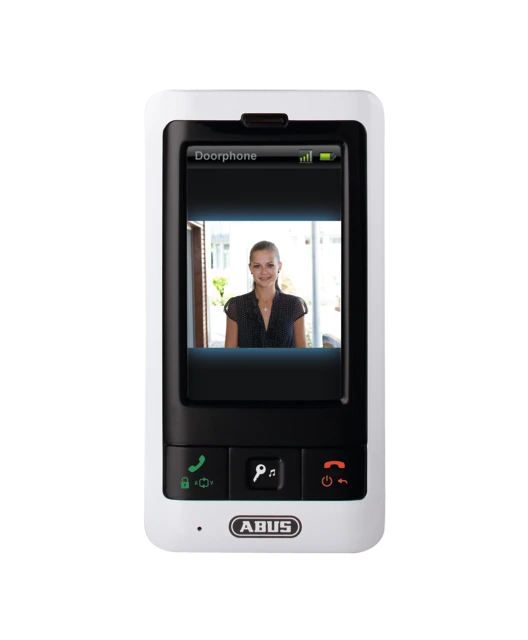

Eycasa handset front view right Eycasa handset front view Eycasa handset front view left

Eycasa Handset

Description


The Eycasa handset has many main unit functions: Use it to see people at the door on a 3.2" colour monitor. You can hear them, talk to them and, if necessary, open the door. Video and audio are transmitted wirelessly using DECT technology (1.9 GHz). When the handset accepts the conversation it switches automatically to a still image to ensure perfect audio transmission.
The range extends up to 30 metres from the main unit, depending on the structural environment, and at only 12.8 x 7.4 cm in size, you can carry the handset all round the house and garden, as easily as if it were a mobile phone.

Long standby times, flexible installation
Thanks to the integrated lithium-ion battery, the user also benefits from long standby times. The handset is simply placed in the charging cradle to charge it. This can be free-standing or mounted on the wall.

Note on the product
The Family Care camera cannot currently be viewed or operated using the handset. A handset can be integrated into an Eycasa system.

For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

Product advantages

  • Wireless handset with 3.2'' colour monitor for reception of video and audio data of the Eycasa components
  • Wireless range up to 30 m from the main unit, depending on the situation in the building
  • See, speak, listen and switch (door opener) wirelessly
  • Integrated lithium-battery
  • Choice between wall or table mounting using charging cradle
  • Image is automatically frozen when the call is answered
  • Video stream with up to 1 fps

Downloads

General downloads:

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging
Specifications
Audio data rate: 0,064
Audio frequency: 1,9 GHz
Audio modulation: TDMA
Audio sensitivity: -82
Audio transmission power: 20
DC voltage supply: 5 V
Fastening: Table mount, wall mount
Height: 128 mm
IP protection class: 30
Length: 19 mm
Loudspeaker: 8 Ohm, 1W
Max. operating temperature: 50 °C
Microphone: Yes
Min. operating temperature: 0 °C
Monitor: 3,2'' touchscreen LCD
Net weight: 0,23 kg
Number of channels: 5
Power consumption: 600 mA
Resolution: 320 x 240
Video data rate: 0,064
Video frequency: 1,9 GHz
Video modulation: TDMA
Video sensitivity: -82
Video transmission power: 20
Width: 74 mm
Wireless range: 30 (depending on site conditions) m
Required accessories
Eycasa Door Intercom
Other
Eycasa Door Intercom
(product no: CASA31000)
