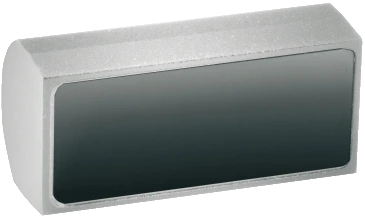

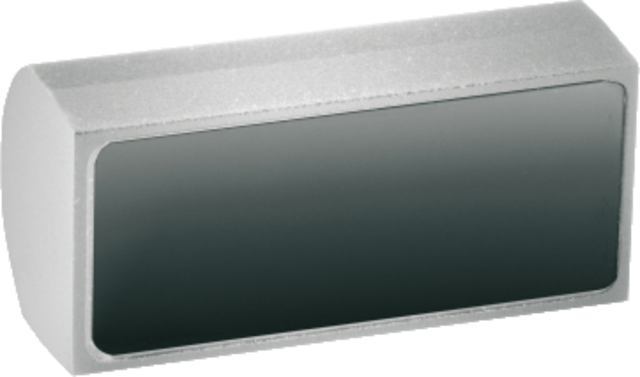

    IR Illuminator MEGA LED S 13 m 880 nm

    Product advantages

    Downloads

    General downloads:

    Recycling

    We have summarised for you which disposal information is important in your country.

    Disposal & labelling of packaging

    Specifications
    Battery activation: <2 lx
    Beam angle horizontal/vertical: 25 / 25 °
    Current consumption: 350 mA
    DC power supply: 12 V
    Dimensions: (W x H x D) 71 x 38 x 48 mm
    Height: 38 mm
    Housing material: Aluminium
    Length: 48 mm
    Max. Operating temperature: 40 °C
    Min. operating temperature: -30 °C
    Mounting: 1/4" tripod socket
    Net weight: 0.185 kg
    Number of LEDs: 21
    Optical wavelength: 880
    Power consumption: 4.2 W
    Product group: Accessories
    Protection class IP: 66
    Range at 0.01 lux: 25 m
    WEEE group: 09
    width: 71 mm
