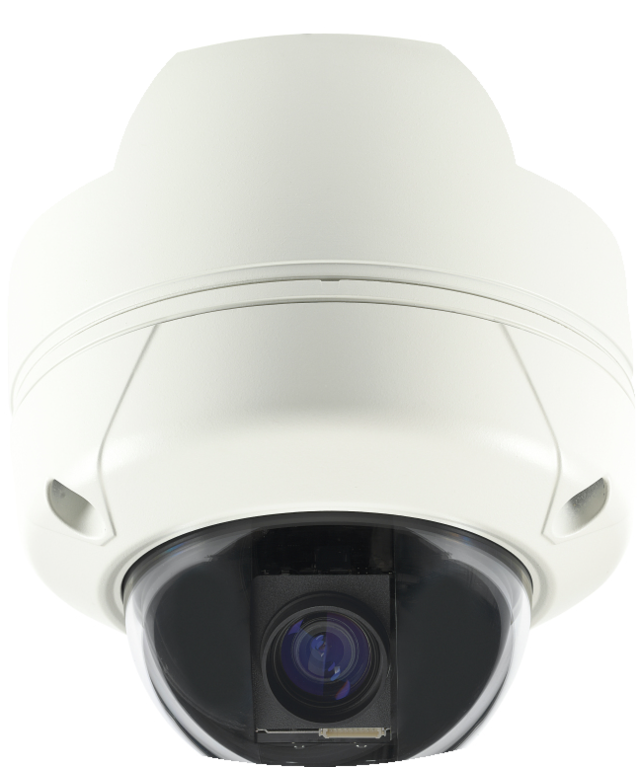

    Mini PTZ Dome Camera

    Mini PTZ Dome Camera

    Product advantages

    • 1/4 Sony Super HAD CCD
    • Focal length f = 3.8 - 38mm
    • Light sensitivity to 0.07 lux
    • Autoflip function
    • International protection class: IP66

    Downloads

    General downloads:

    Recycling

    We have summarised for you which disposal information is important in your country.

    Disposal & labelling of packaging

    Mini PTZ Dome Camera
    Mini PTZ Dome Camera
    Mini PTZ Dome Camera
    Mini PTZ Dome Camera
    Specifications
    Amplifier control: AGC
    Aperture at minimum illumination (color): 1.8, 5
    Aperture with minimum lighting (B/W): F1.8
    Camera outputs: 1 x (1 Vp-p / 75 Ohm)
    Camera type: PTZ camera
    Certifications: CE
    Connections: BNC, DC, control, alarm doorways
    Current consumption: 1,100 mA
    DC power supply: 12 V
    DSP: Samsung
    Day/night switching: IR cut can be swivelled electromagnetically
    Digital zoom: 10x
    Dimensions: (HxD) 157x167 mm
    Electronic shutter: Automatically
    Focal length: 3,8-38 mm
    Height: 157 mm
    Horizontal viewing angle: 51,2-5,58 °
    Image sensor: 1/4" SONY Super HAD CCD
    Lens: 3.8 - 88.4
    Max. Operating temperature: 50 °C
    Min. operating temperature: -10 °C
    Minimum illumination (IR): 0 lx
    Minimum illumination (color): 25 lx
    Minimum lighting (B/W): 0.07 lx
    Net weight: 2.166 kg
    Number of presets: 165
    Number of tours: 8
    Optical zoom: 10x
    Pan/tilt range: 360°/180°
    Privacy zones: 4
    Protection class IP: 66
    Protocols: Pelco-D
    Signal-to-noise ratio: 50 dB
    TVL: 500
    WEEE group: 09
    White balance: AWB
    width: 167 mm
