    PCI Video Surveillance Card
    PCI Video Surveillance Card
    PCI Video Surveillance Card

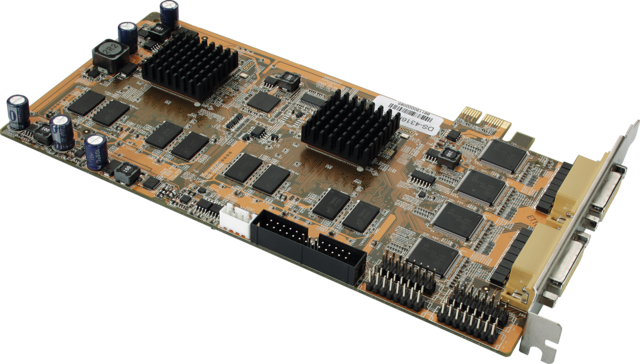

    PCIe Video Surveillance Card 16ch @ 400 fps

    Product advantages

    Downloads

    General downloads:

    Recycling

    We have summarised for you which disposal information is important in your country.

    Disposal & labelling of packaging

    Specifications
    Audio: Audio In: 16 x cinch (2.0 V s-s, 1000 Ω), additional PCI slot required
    Camera inputs: 16 x BNC
    Camera outputs: 1 x BNC
    Certifications: CE
    Compression levels: 5
    Connections: PCIe x1 2.0 or higher
    Dimensions: 213 x 102 mm
    Height: 102 mm
    Hybrid capable: Yes
    Mobile access: No
    Monitor outputs: 1 x BNC
    Net weight: 0.17 kg
    Operation mode: Triplex
    Power consumption: 13.6 W
    Prerequisites: Operating system: Windows Vista/7 32 bit/64 bit; Intel CoreTM i5 3.1 GHz; 2 GB RAM; 256 MB video memory
    Recording modes: Programmable, upon video failure, fault, alarm, movement, cover, manipulation, schedule, continuous
    Recording time at max. resolution & frame rate: 61
    Recording time at min. resolution & frame rate: 247
    Resolution recording @ frame rate per camera (PAL): 352 x 288 (CIF) @ 25fps, 704 x 288 (2CIF) @ 25 fps, 704 x 576 (4CIF) @ 25fps
    Search modes: By event, date & time, POS data
    Software: ABUS VMS Professional
    Total frame rate (PAL): 400
    Total video channels: 16
    Video channels HD-SDI: 0
    Video channels IP: 0
    Video channels analog: 16
    Video compression: H.264
    WEEE group: 09
    width: 213 mm
