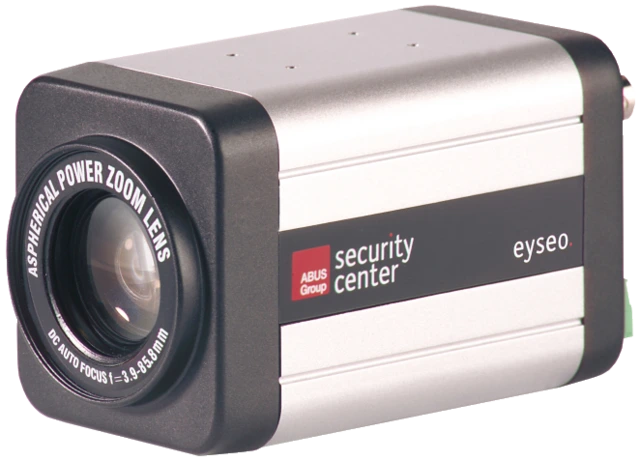

    Network Zoom Camera
    Zoom Camera
    Zoom Camera

    Zoom Camera

    Product advantages

    • 1/4 SONY Super HAD CCD
    • 22x motor + 16x digital zoom
    • Electronic switching from color to B/W
    • Automatic focusing for constant high-resolution pictures
    • Certified by POS in accordance with accident prevention regulations (DGUV)

    Downloads

    General downloads:

    Recycling

    We have summarised for you which disposal information is important in your country.

    Disposal & labelling of packaging

    Zoom Camera
    Zoom Camera
    Specifications
    Amplifier control: Automatic / manual (1dB ~ 26dB)
    Aperture at minimum illumination (color): 1.6, 50
    Backlight compensation: BLC
    Camera outputs: 1 x (1Vp-p / 75 Ohm)
    Camera type: Colour
    Certifications: CE, UVV (DGUV)

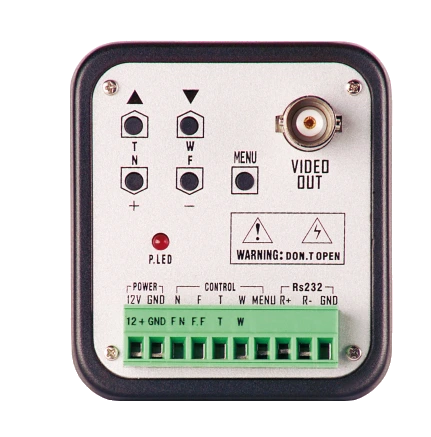

    Connections: BNC, DC, control
    Control unit: RS-485
    Current consumption: 340 mA
    DC power supply: 12 V
    DSP: Yes
    Digital zoom: 16x
    Dimensions: (WxHxD) 72x60x132 mm
    Electronic shutter: 1/50 - 1/30000
    Focal length: 3,9 - 85,8 mm
    Height: 60 mm
    Horizontal viewing angle: 47 - 3 °
    Image sensor: 1/4" Sony Super HAD CCD
    Length: 132 mm
    Lens: 3.9 ~ 85.8
    Max. Air humidity: 60 %
    Max. Operating temperature: 50 °C
    Min. operating temperature: -10 °C
    Minimum illumination (color): 0.7 lx
    Net weight: 0.389 kg
    Optical zoom: 22x
    Protection class IP: 34
    Protocols: AUTO / PELCO / NATIVE / LG
    Signal-to-noise ratio: 48 dB
    TVL: 470
    Video system: PAL
    WEEE group: 09
    White balance: AWB
    width: 72 mm
