    Eycasa Video Door Station

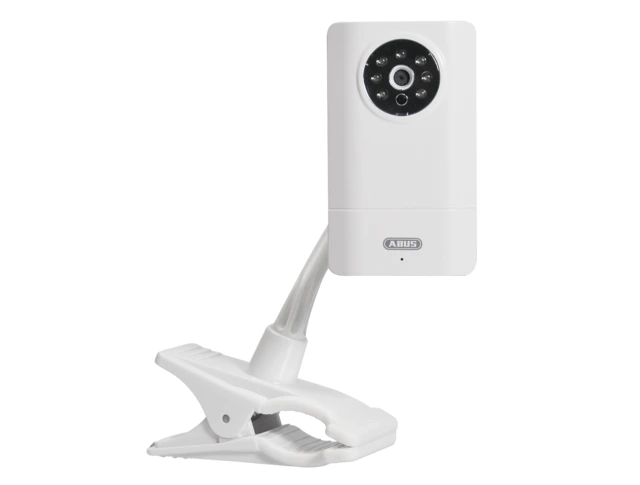

    Eycasa Family Care Camera

    Product advantages

    Downloads

    General downloads:

    Recycling

    We have summarised for you which disposal information is important in your country.

    Disposal & labelling of packaging

    Specifications
    Alarm generation: VOX trigger to Eycasa Main unit
    Audio modulation: TMDA
    Audio transmission power: 20
    Battery type: Lithium Polymer Akku 1200 mAh / 3.7 V
    Colour: white
    Connectable devices: Eycasa main unit
    Current consumption: 850 mA
    DC power supply: 5 V
    Data rate audio: 0.064
    Data rate video: 2
    Dimensions: 69 x 117 x 32 mm
    Focal length: 3,27 mm
    Frame rate: 20
    Frequency Audio: 1.9 GHz
    Frequency Video: 2.4 GHz
    Height: 135 mm
    Horizontal viewing angle: 54 °
    IR beam angle: 90 °
    IR range (up to): 3 m
    IR swivel filter: No
    Image sensor: 1/4'' CMOS
    Length: 32 mm
    Loudspeaker: 8 Ohm / 1 x 1Watt
    Max. Operating temperature: 50 °C
    Max. Resolution @ frame rate: 640 x 480 Pixel (VGA)
    Microphone: Yes
    Min. operating temperature: -10 °C
    Modulation Video: FHSS+GFSK
    Net weight: 0.1466 kg
    Number of IR LEDs: 7
    Operation mode: Permanent power connection of battery mode
    Protection class IP: 34
    Radio range: 30 (depending on the site conditions) m
    Sensitivity audio: -82
    Sensitivity video: -82
    Transmission power video: 13.5
    Video compression: MPEG-4
    WEEE group: 09
    width: 315 mm
