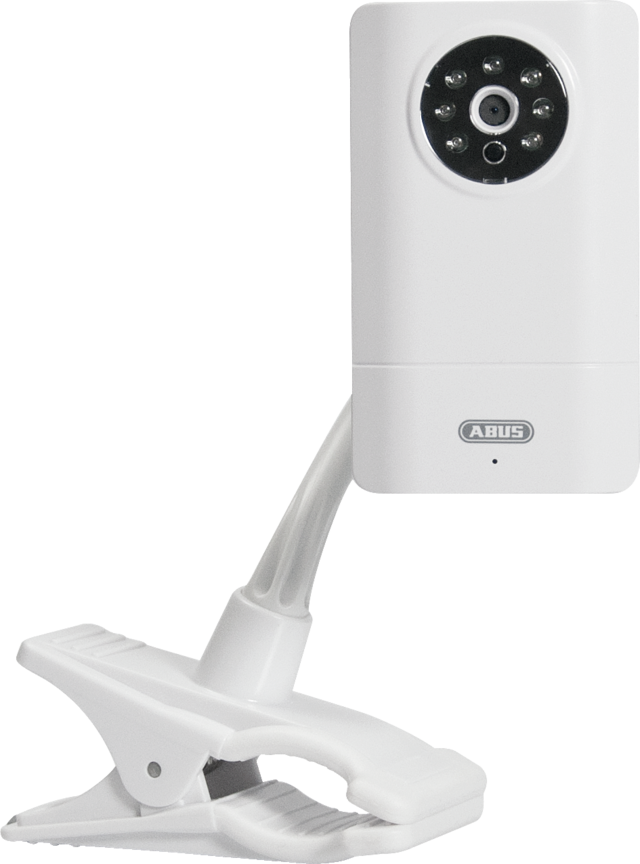

    Eycasa Family Care camera front view

    Eycasa Family Care Camera

    Description


    With its attractive white design, the Eycasa Family Care camera offers more than just video monitoring. Designed for indoor use, the colour camera communicates securely via wireless. The transmission range to the main unit is up to 30 metres, depending on the conditions in the building.

    Baby monitor and senior care
    The Family Care camera has an unobtrusive white design and is equipped with infrared night-view LEDs to identify persons at close range, as well as a noise detection function. If a noise is detected, the camera and the main unit are automatically activated. This means the Family Care camera can be used as a baby monitor or for people in need of care.

    Useful functions for families
    The camera can also be decorated with the jolly stickers supplied in the package, so that looks just right in the baby’s bedroom. In addition, the camera has a lullaby function. This enables it to play up to five different lullabies.

    For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

    Product advantages

    • Wireless colour camera for indoors
    • Wireless range up to 30 m from the main unit, depending on the situation in the building
    • Secure, digital wireless transmission
    • With night view function (IR LEDs)
    • For use as a baby monitor or for senior care
    • Automatic activation on noise detection (camera, main unit)
    • Intercom and integrated lullaby function
    • Flexible installation on gooseneck mount

    Downloads

    General downloads:

    Recycling

    We have summarised for you which disposal information is important in your country.

    Disposal & labelling of packaging

    Specifications
    Alarming: VOX trigger to Eycasa Main unit
    Audio data rate: 0,064
    Audio frequency: 1,9 GHz
    Audio modulation: TMDA
    Audio sensitivity: -82
    Audio transmission power: 20
    Connectible devices: Eycasa main unit
    DC voltage supply: 5 V
    Dimensions: 69 x 117 x 32 mm
    Focal length: 3,27 mm
    Frame rate: 20
    Height: 135 mm
    IP protection class: 34
    IR beam angle: 90 °
    IR range (up to): 3 m
    IR swivel filter: No
    Image sensor: 1/4'' CMOS
    Length: 32 mm
    Loudspeaker: 8 Ohm / 1 x 1Watt
    Max. operating temperature: 50 °C
    Max. resolution @ frame rate: 640 x 480 Pixel (VGA)
    Microphone: Yes
    Min. operating temperature: -10 °C
    Number of IR LEDs: 7
    Operating mode: Permanent power connection of battery mode
    Power consumption: 850 mA
    Rechargeable battery running time: 3 hours continuous operation / 18 hours stand-by h
    Video compression: MPEG-4
    Video data rate: 2
    Video frequency: 2,4 GHz
    Video modulation: FHSS+GFSK
    Video sensitivity: -82
    Video transmission power: 13,5
    Width: 315 mm
    Wireless range: 30 (depending on the site conditions) m
