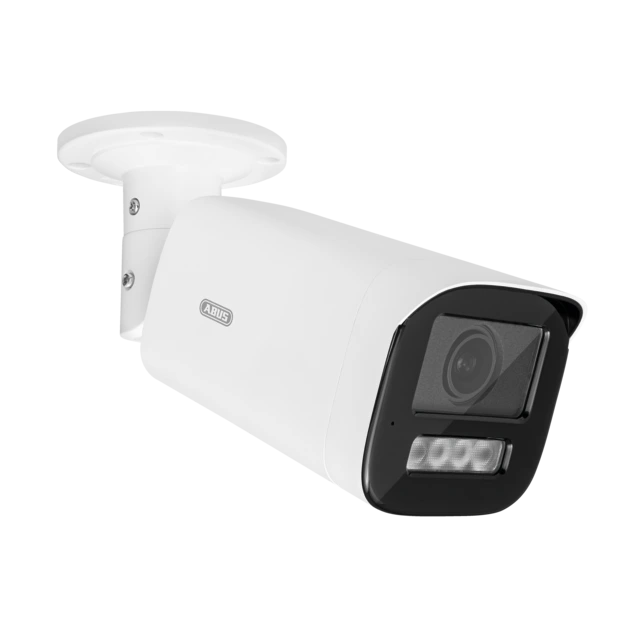

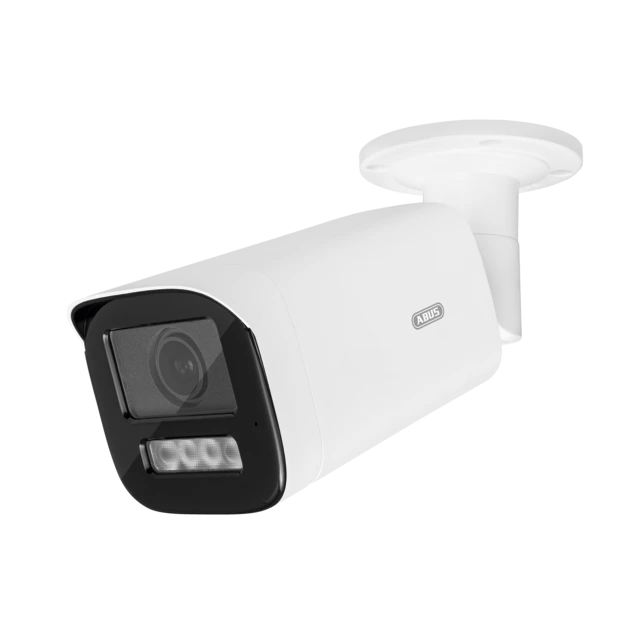

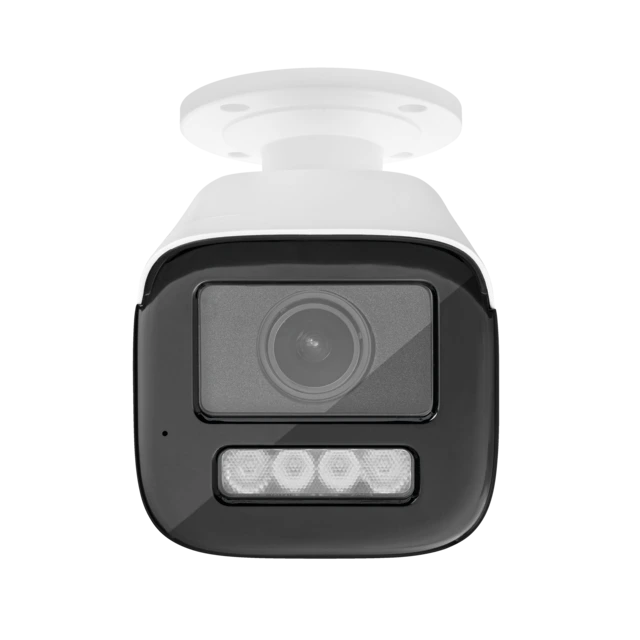

Analogue HD Tube 2 MPx (1080p, 2.8 - 12 mm)

Clear Full HD via analogue cable. Flexible 24/7 commercial property surveillance with True WDR and motorised zoom. Ideal for replacing analogue systems with colour night vision and object detection.

Description

Analogue HD Tube 2 MPx – detailed surveillance with existing technology

The Analogue HD Tube with 2 megapixels is suitable for indoor and outdoor use (IP67) and delivers clear images – even in difficult lighting conditions. The True WDR function ensures balanced brightness between the foreground and background, while Gecko + IR technology enables colour images even at night. Thanks to the motorised zoom, simple installation and precise focussing can be carried out by remote control. The camera is ideal for users who want to continue using existing coaxial cabling and at the same time benefit from modern image quality.

Targeted detection of people and vehicles
When used with an ABUS Analogue HDCC900X2 recorder, the camera enables AI-supported analysis. It distinguishes between people and vehicles, which improves the detection of relevant movements and reduces the number of irrelevant notifications.

Efficient retrofitting with existing infrastructure
Analogue HD technology makes it possible to modernise existing surveillance systems without replacing the existing coaxial or 2-wire cabling (via converters). Cameras and recorders can be easily replaced, which reduces time and installation effort. For reliable IR performance, the ambient conditions should be taken into account accordingly.

IR range depends on the environment

The performance of the lighting depends greatly on the location. Dark surfaces or a lack of reflections can have a negative effect on the image – as can close, reflective objects.

For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

Product advantages

  • 2 MPx resolution: 1920 x 1080 @ 25 fps
  • True WDR effectively equalises light/dark contrasts
  • Easy installation and focussing via remote access with the motorised zoom lens (2.8–12 mm)
  • Powerful IR LED technology for improved illumination up to 40 m at night
  • Weatherproof (IP67) for outdoor use
  • Integrated infrared LEDs with manual switching between IR and colour night vision
  • Fewer false alarms thanks to AI-supported detection of people/vehicles with HDCC900X3 recorder
  • Perfect for retrofitting: Transmission via conventional and existing CCTV infrastructure with coaxial cable
  • Cable lengths of up to 250 m
  • Wide variety of holders for straightforward, cost-efficient installation

Downloads

General downloads:

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging

Specifications
Aperture at minimum illumination (colour): F1.28
Audio: Integrated: Microphone
Backlight compensation: WDR, HLC, HLS
Camera outputs: 1 x BNC
Colour: white
Compatible with ABUS Link Station: No
Compatible with Comfion: No
Compatible with Secoris: No
Compatible with Secvest: No
Compatible with Smartvest: No
Compatible with wAppLoxx: No
Compatible with wAppLoxx Pro: No
Connections: 1 x BNC (video), 1 x DC (5.5/2.1 mm)
DC voltage supply: 12 (+/-25 %) V
Day/night switching: Electromechanical IR cut filter
Design: Tube
Dimensions: (LxWxH) 252x105x105 mm
Dynamic range (WDR): 130 dB
Electronic shutter: Auto (1/25 - 1/50000 s)
Focal length: 2,8 – 12 mm
Functions: Motion Detection, Tripwire Detection and Intrusion Detection via DVR
Gross weight: 1,14 kg
HD-TVI video channels: 1
Height: 105 mm
Horizontal viewing angle: 106 – 32 °
Housing material: metal
IP protection class: 67
IR LEDs: Yes
IR range (up to): 60 m
Image enhancement: WDR, BLC, HLC, HLS, ATW, 3D DNR
Image sensor: 1/2.8" Progressive Scan CMOS
Language of instructions: DE, UK, FR, NL, DK, IT
Language packing: DE, UK, FR, NL, DK, IT
Length: 252 mm
Lens: Motorised zoom, autofocus
Max. humidity: 90 %
Max. operating temperature: 60 °C
Max. resolution @ frame rate: 1920x1080 @ 25 frames/s
Microphone: Yes
Min. operating temperature: -30 °C
Minimum illumination (IR): 0 lx
Minimum illumination (colour): 0,0005 lx
Net weight: 0,92 kg
Noise reduction: 3D DNR
OSD language: UK
Other functions: White light up to 60 meters
PSTI conformity required: No
Pixels (effective): 1920 x 1080 pixel
Power consumption: 650 mA
Private zones: 4
Protocols: No
Resolution: 2 MP
Resolution modes: 1920 x 1080
Technology: Analogue HD
Vertical viewing angle: 56 – 18 °
Video system: HD-TVI
White balance: ATW, manual
Width: 105 mm
