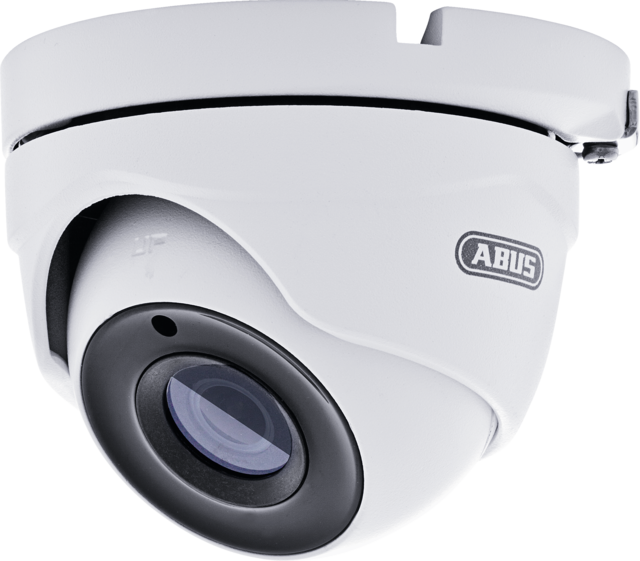

Analog HD Mini Dome 2 MPx (1080p, 2.8 mm) Analog HD Mini Dome 2 MPx (1080p, 2.8 mm) Analog HD Mini Dome 2 MPx (1080p, 2.8 mm)

Analog HD Mini Dome 2 MPx (1080p, 2.8 mm)

Description

ABUS Analogue HD: Analogue images have never been so clear
The Analogue HD Mini Dome 2 MPx has a high-quality image sensor for the surveillance of extensive indoor and outdoor areas. This ensures it provides a razor sharp and fluid image, for better detail recognition. The Analogue HD Mini Dome 2 MPx with True WDR. A high-performance True WDR function ensures evenly lit foregrounds and backgrounds in high-contrast light situations.

24/7 indoor and outdoor surveillance
The automatic day/night switching offered by the improved IR LED technology provides for better image lighting under varying light conditions. The Analogue HD Mini Dome is robust in the face of wind and weather thanks to its IP67 protection class.

Analogue HD technology: Ideal for inexpensive retrofitting
Using the infrastructure already installed offers flexible retrofitting possibilities. Simply exchange the cameras and recorders and get better performance from your existing video surveillance systems. You can continue to use your existing coaxial or 2-wire cable.

The effective IR range will depend on the installation location. If there are surfaces that absorb light or no objects that reflect IR light in the field of view, the IR range will be reduced and/or the video image will be too dark. Reflective objects in the immediate vicinity of the camera (e.g. roof gutter or wall) may also result in the reflection of IR light, which can disturb the image.

For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

Product advantages

  • 2 MPx Resolution: 1920 x 1080 @ 30 fps
  • True WDR effectively compensates for light/dark contrast
  • Fixed lens, 2.8 mm
  • Powerful IR LED technology for improved illumination of up to 20 m at night
  • Weatherproof (IP67) for outdoor use
  • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
  • Perfect for retrofitting: Transmission using conventional and existing CCTV infrastructure, such as coaxial or 2-wire cables
  • Cable length of up to 500 m possible without loss
  • Wide variety of holders for straightforward, cost-efficient installation

Downloads

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging
Specifications
AC voltage supply: 24 (+/-25 %) V
Amplifier control: AGC, 3 level
Aperture at minimum illumination (colour): F1.2
Backlight compensation: True WDR
Camera outputs: 1 x BNC
Compatible with Secvest: No
Compatible with wAppLoxx: No
Connections: 1 x BNC (Video), 1 x DC (5.5/2.1 mm)
DC voltage supply: 12 (+/-25 %) V
Day/night switching: Electromechanical IR cut filter
Design: Dome
Dimensions: (LxWxH) 90x83x80 mm
Dynamic range (WDR): 130 dB
Electronic shutter: Auto (1/25 - 1/50000 s)
Focal length: 2.8 mm
Functions: Motion Detection, Tripwire Detection and Intrusion Detection via DVR
HD-TVI video channels: 1
Height: 80 mm
Horizontal viewing angle: 105 °
Housing material: Metal
IP protection class: 67
IR LEDs: Yes
IR range (up to): 30 m
Image enhancement: WDR, BLC, HLC, ATW, 3D DNR, Slow Shutter
Image sensor: 1/2.7" Progressive Scan CMOS
Length: 90 mm
Lens: Fix
Max. humidity: 90 %
Max. operating temperature: 60 °C
Max. resolution @ frame rate: 1920x1080 @ 30 frames/s
Min. operating temperature: -25 °C
Minimum illumination (IR): 0 lx
Minimum illumination (colour): 0,003 lx
Net weight: 0,3 kg
Noise reduction: 3D DNR
PSTI conformity required: No
Power consumption: 290 mA
Private zones: 4
Protocols: Coax
Resolution: 2 MP
Resolution modes: 1920 x 1080
Technology: HD-TVI
Vertical viewing angle: 52 °
Video system: HD-TVI, CVI, AHD, FBAS
White balance: ATW, manual
Width: 83 mm
