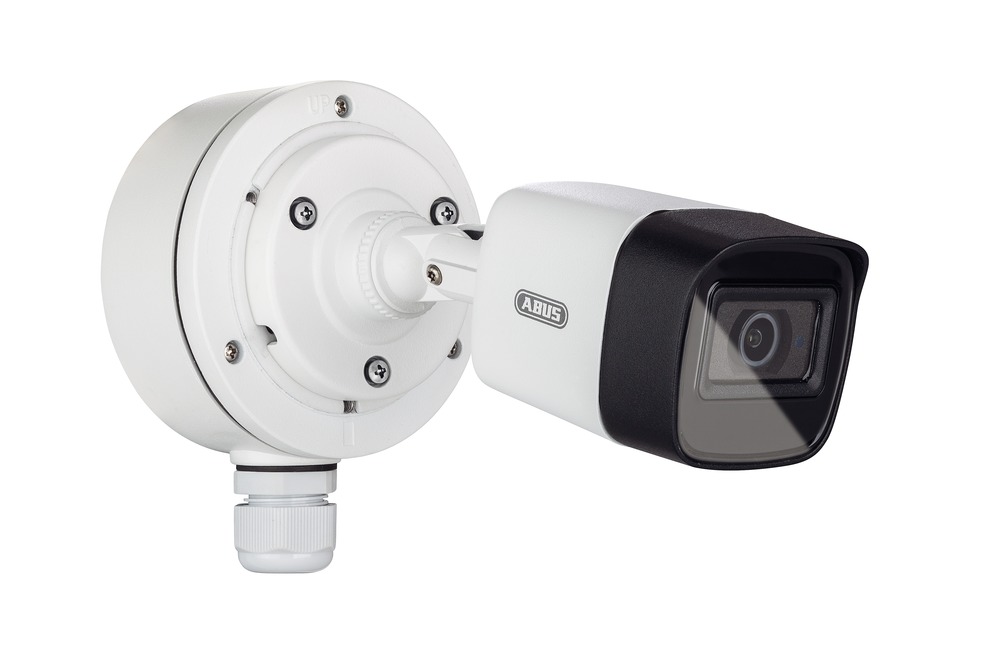

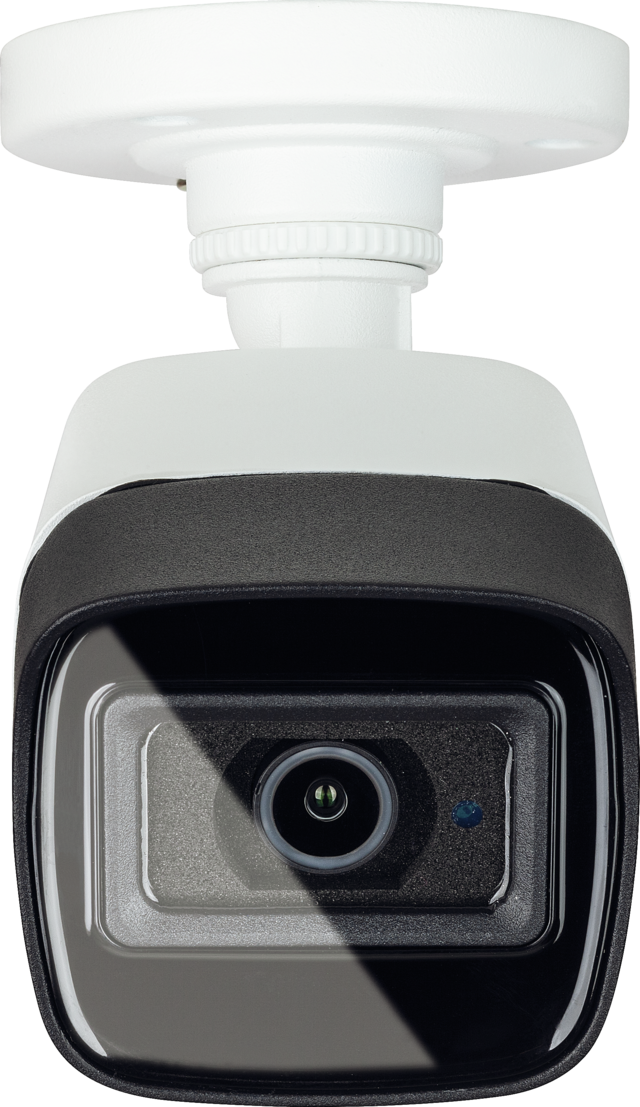

    Analog HD Mini Tube 5 MPx (2.8 mm)
    Analog HD Mini Tube 5 MPx (2.8 mm)
    Analog HD Mini Tube 5 MPx (2.8 mm)
    Analog HD Mini Tube 5 MPx (2.8 mm)

    Analog HD Mini Tube 5 MPx (2.8 mm)

    Description

    ABUS Analogue HD: Analogue images have never been so clear
    The Analogue HD Mini Tube 5 MPx has a high-quality image sensor for the surveillance of extensive indoor and outdoor areas. This ensures it provides a razor sharp and fluid image, for better detail recognition. The Analogue HD Mini Tube 5 MPx with True WDR A high-performance True WDR function ensures evenly lit foregrounds and backgrounds in high-contrast light situations.

    24/7 indoor and outdoor surveillance
    The automatic day/night switching offered by the improved IR LED technology provides for better image lighting under varying light conditions. The Analogue HD Mini Tube is robust in the face of wind and weather thanks to its IP67 protection class.

    Analogue HD technology: Ideal for inexpensive retrofitting
    Using the infrastructure already installed offers flexible retrofitting possibilities. Simply exchange the cameras and recorders and get better performance from your existing video surveillance systems. You can continue to use your existing coaxial or 2-wire cable.

    The effective IR range will depend on the installation location. If there are surfaces that absorb light or no objects that reflect IR light in the field of view, the IR range will be reduced and/or the video image will be too dark. Reflective objects in the immediate vicinity of the camera (e.g. roof gutter or wall) may also result in the reflection of IR light, which can disturb the image.

    For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

    Product advantages

    • 5 MPx Resolution: 2592 x 1944 @ 20 fps
    • True WDR effectively compensates for light/dark contrast
    • Fixed lens, 2.8 mm
    • Powerful IR LED technology for improved illumination of up to 20 m at night
    • Weatherproof (IP67) for outdoor use
    • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
    • Perfect for retrofitting: Transmission using conventional and existing CCTV infrastructure, such as coaxial or 2-wire cables
    • Cable length of up to 500 m possible without loss
    • Wide variety of holders for straightforward, cost-efficient installation

    Downloads

    General downloads:

    Additional information:

    Recycling

    We have summarised for you which disposal information is important in your country.

    Disposal & labelling of packaging

    Analog HD Mini Tube 5 MPx (2.8 mm)
    Analog HD Mini Tube 5 MPx (2.8 mm)
    Specifications
    Amplifier control: AGC, 3 level
    Aperture at minimum illumination (colour): F1.2
    Backlight compensation: True WDR
    Camera outputs: 1 x BNC
    Camera type: Mini Tube
    Compatible with Secvest: No
    Compatible with wAppLoxx: No
    Connections: 1 x BNC (HD-TVI), 1 x DC (5.5/2.1 mm)
    DC voltage supply: 12 V +/-15 % V
    Day/night switching: Electromechanical IR cut filter
    Design: Tube
    Dimensions: (LxWxH) 154x59x56 mm
    Dynamic range (WDR): 120 dB
    Electronic shutter: 1/50 – 1/50000 s
    Focal length: 2.8 mm
    Functions: Motion Detection, Tripwire Detection and Intrusion Detection via DVR
    HD-TVI video channels: 1
    Height: 56 mm
    Horizontal viewing angle: 98.0 °
    Housing material: Metal
    IP protection class: 67
    IR LEDs: Yes
    IR range (up to): 20 m
    Image enhancement: WDR, BLC, ATW, DNR
    Image sensor: 1/2.7" Progressive Scan CMOS
    Length: 154 mm
    Lens: Fix
    Lens mount: M12
    Max. humidity: 90 %
    Max. operating temperature: 60 °C
    Max. resolution @ frame rate: 2592x1944 @ 20 frames/s
    Microphone: No
    Min. operating temperature: -40 °C
    Minimum illumination (IR): 0 lx
    Minimum illumination (colour): 0,03 lx
    Net weight: 0,35 kg
    Noise reduction: DNR
    PSTI conformity required: No
    Power consumption: 480 mA
    Private zones: 4
    Protocols: Coax
    Resolution: 5 MP
    Resolution modes: 2592 x 1944
    Technology: Analogue HD
    Vertical viewing angle: 50 °
    Video system: HD-TVI, CVI, AHD, FBAS
    White balance: ATW, manual
    Width: 59 mm
