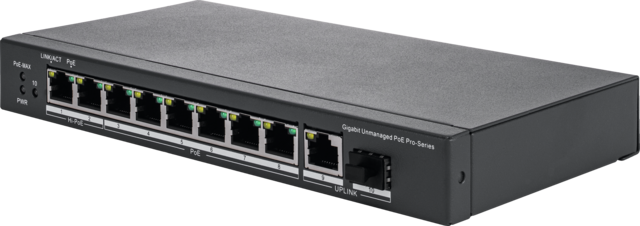

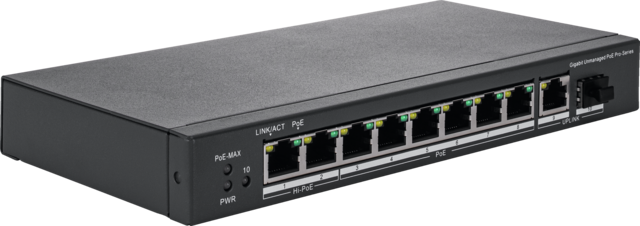

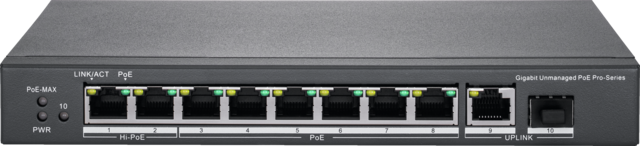

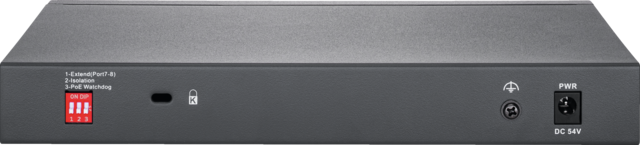

    8-Port PoE Gigabit Switch

    Product advantages

    Downloads

    General downloads:

    Recycling

    We have summarised for you which disposal information is important in your country.

    Disposal & labelling of packaging

    Specifications
    AC power supply: 100 - 240 V
    Application purpose: General surveillance
    Connections: 6 x Gigabit PoE Port, 2 x Gigabit Hi-PoE Port, 1 x Gigabit RJ45 Port, 1 x Gigabit SFP Port
    DC power supply: 54 V
    Depth: 109 mm
    Dimensions: 218 x 109 x 28 mm
    Gross weight: 1.295 kg
    Height: 27.8 mm
    Housing material: Metal
    Language Manual: DE, GB, FR, NL, DK, IT
    Language Packaging: DE, GB, FR, NL, DK, IT
    Length: 109 mm
    Max. Air humidity: 95 %
    Max. Operating temperature: 40 °C
    Max. PoE power per port: 7 x 15 watts or 3 x 30 watts or 1 x 90 watts (for max. power each port)
    Min. operating temperature: 0 °C
    Net weight: 0.576 kg
    Network connection: Downstream: 8x 10/100/1000Base-T (PoE), Uplink: 1x 10/100/1000Base-T, 1 x SFP
    Network standards: IEEE 802.3 af/at/bt, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
    Other functions: Port Isolation, PoE Watchdog, 6 KV Surge Protection, Fanless, Port 7 and 8 up to 300 m in extended mode
    PSTI conformity given: No
    PSTI conformity needed: No
    Pin assignment Power supply: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
    PoE Standard: IEEE 802.3 af/at/bt
    Power consumption: 120 W
    Product group: Accessories
    Total PoE power: 110 W
    WEEE group: 09
    width: 218 mm
