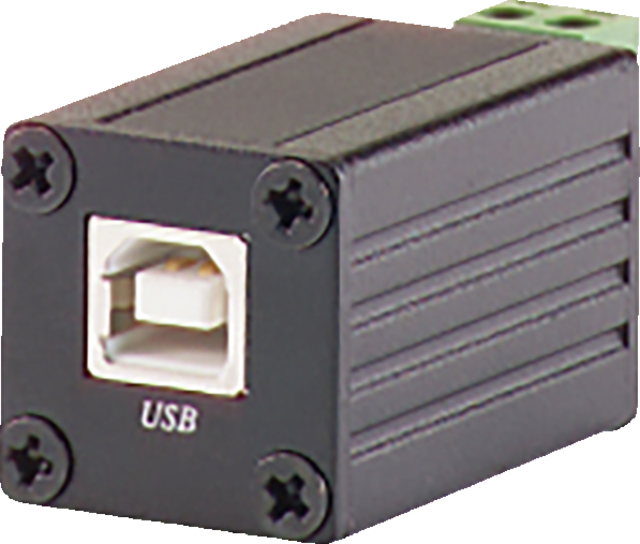

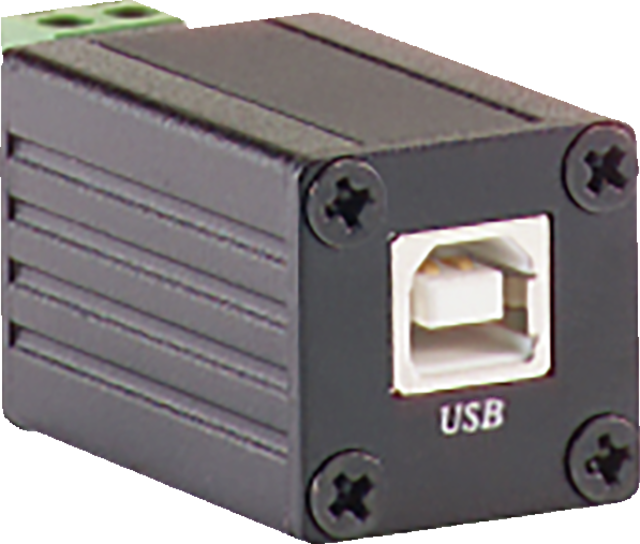

Interface Converter USB To RS485 Interface converter USB to RS485 front view

Interface Converter USB To RS485

Description

Use the interface converter to control a PTZ Dome Camera (TV7600 - TV7604) from your PC. The interface converter is connected to a USB 2.0 port at the PC and the dome camera is connected to the interface converter using a 2-core RS485 bus cable. You can operate up to 31 dome cameras with your PC. You connect one dome camera directly to the converter and connect the other 30 cameras to each other. The maximum transmission range from the interface converter to the last dome camera is 1200 meters.

For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

Product advantages

  • Converts USB to RS485, half-duplex
  • Fast connection
  • Driver CD included

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging
Specifications
Baud Rate: 115.200
Communication: half-duplex
Connectible devices: 31
Connections: USB/RS485
Dimensions: (W x H x D) 25 x 25 x 34 mm
Height: 25 mm
Length: 34 mm
Transmission distance: 1.200 m
Width: 25 mm
