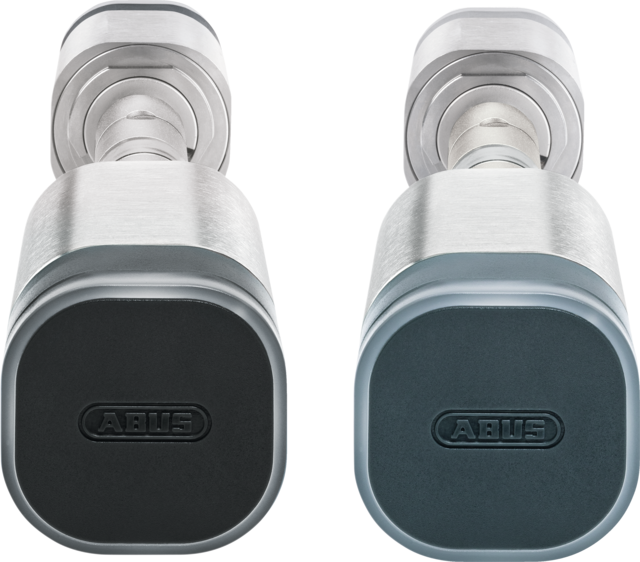

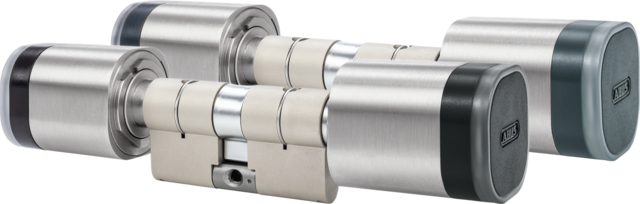

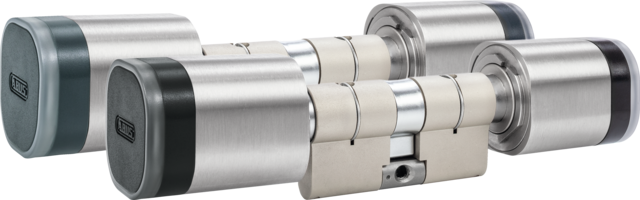

WLX Pro Double-knob cylinder, reader both sides
WLX Pro Double-knob cylinder, reader both sides
WLX Pro Double-knob cylinder, reader both sides

WLX Pro double knob cylinder, reader both sides

Description

wAppLoxx Pro digital locking cylinder
The digital locking cylinder from ABUS enables convenient access to your building. It is also compatible for online use and can be operated via app. The version with a reader on both sides is particularly well suited for use on access doors or doors for which access rights are also required on the inside. As well as the standard version, it is also available in the following variants: half cylinder, padlock, panic version and a special version for fittings with core extraction protection. The colour of the wAppLoxx Pro cylinder can be adjusted for any door and surface with its white, grey or black covers. Extension modules also enable individual length adjustment to up to 90mm on each side. High protection against manipulation with extra-reinforced drilling and pulling protection as well as a read-protected wireless connection highlight the security offered by the wAppLoxx Pro Cylinder. The weather-resistant finish with protection class IP67 makes it particularly robust.

WLX Pro Doppelknaufzylinder Leser Beidseitig

Product advantages

  • Electronic double knob cylinder with Mifare reader: Read protected wireless connection between transponder and cylinder (Mifare Desfire EV1 in secure mode)
  • Additional double-sided reader for individually adjustable access authorisations
  • Individual length adjustment of up to 90 mm each side with extension modules
  • Encrypted AES 128 bit data transfer between all components
  • Logging of cylinder operation
  • High manipulation resistance with extra-reinforced drilling and pulling protection
  • Weather-resistant as per IP 67
  • A range of design options thanks to wide selection of colours and knobs
  • The status of the cylinder battery can be checked at any time via web or app
  • Activation/deactivation of connected alarm systems

Downloads

General downloads:

Declarations of conformity:

Additional information:

Software:
Auxiliary programs:

Firmware:

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging

Specifications
Additional functions: Opening time can be set between 6 and 12 sec, remote access
Area of application: Passage doors with authorization checks on both sides
Backset: ≥ 30 mm (round knob)/≥ 35 mm (square knob) mm
Battery - type: VARTA Lithium battery 3V CR2/CR15H270/6206
Certifications: EN 15684:2020 1-6-B-4-x-D-4-A/D, optional SKG*** (with Security drilling protection)
Colour: knob: brushed stainless steel black or grey / Cylinder body: brushed stainless steel
Design: Double knob cylinder
Dimensions: knob: L = 48 mm, Ø = 38 mm
Drill protection: Standard / Security (SKG***/EN 15684 clause 8 class D)
Electronics: Access, Intrusion
Environmental conditions: Min./max. temperature: -25/+65, max. air humidity: 80%
Item abbreviation: WLX-PRO-LB
Language of instructions: DE, ES, FR, NL, EN
Language packing: DE, ES, FR, NL, EN
Length adjustment: Modular in 5 mm increments
Locking media: MIFARE® DESFire® EV1, EV2, EV3
Logging and time function: Yes
Material: Cap: stainless steel, plastic / Cylinder body: brass
Max. number of locking media: 10 fallback transponders
Max. operating temperature: 65 °C
Min. operating temperature: -25 °C
Number of cycles/battery: At 20 °C (room temperature): up to 45,000 cycles or 3.5 years if not actuated
OSD language: DE, ES, FR, NL, EN
Opening time can be set: Yes (6/12 Sec)
PSTI conformity required: No
Programming: Programming/system management via WLX Pro Control Plus
Protection class IP Outdoor: 67
Radio frequency: 868,3 MHz
Reader type: Outdoor Mifare reader
Reading distance: < 1 cm
Signalling: Visual
