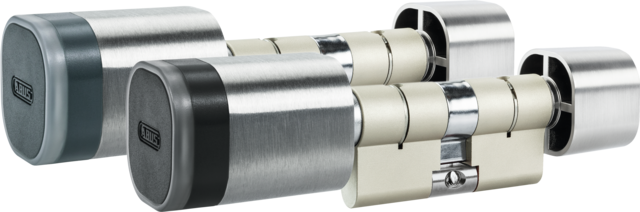

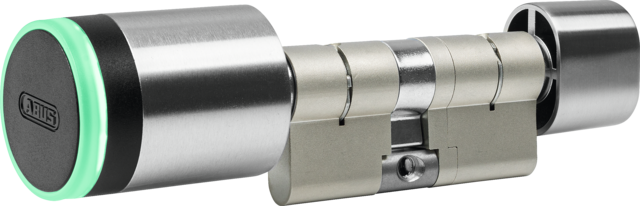

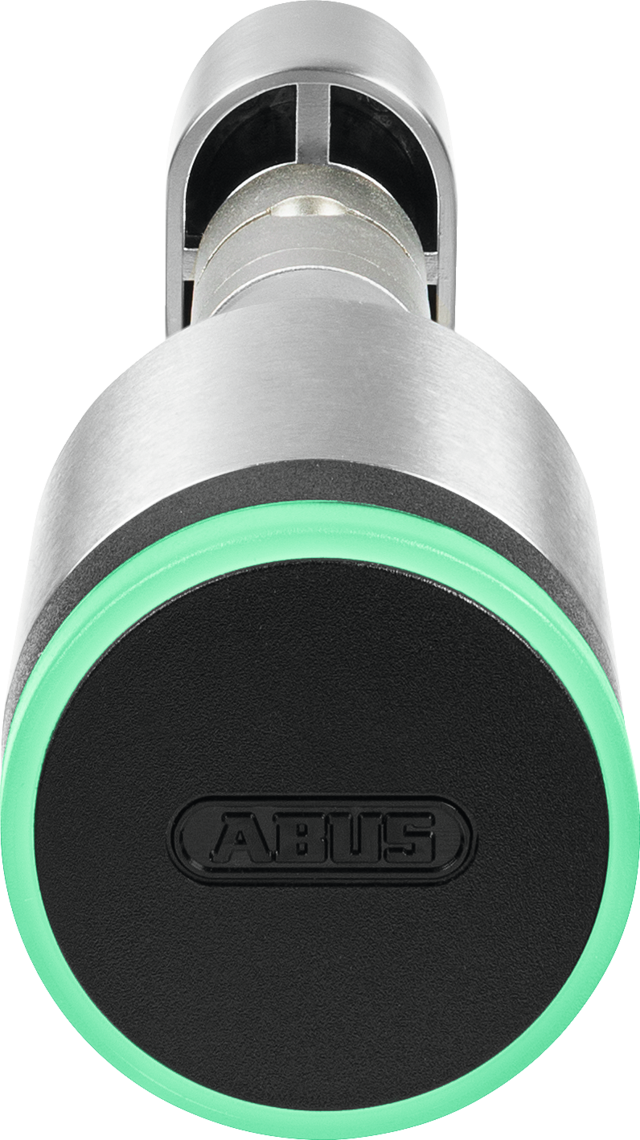

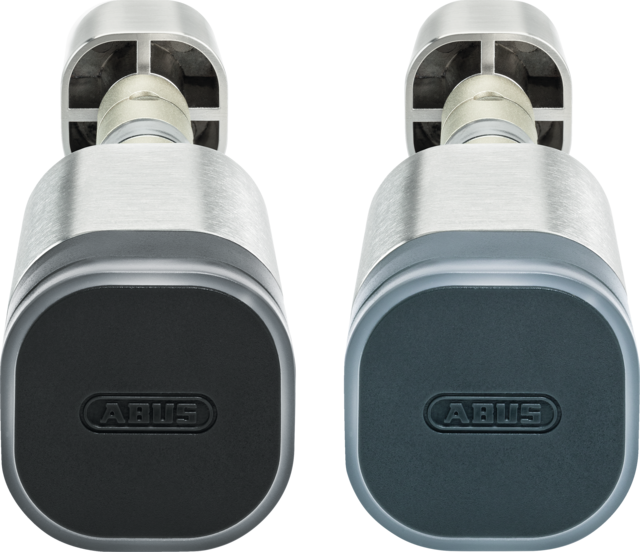

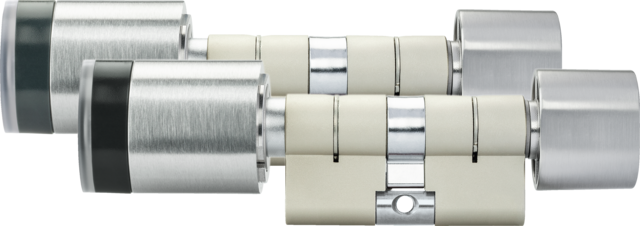

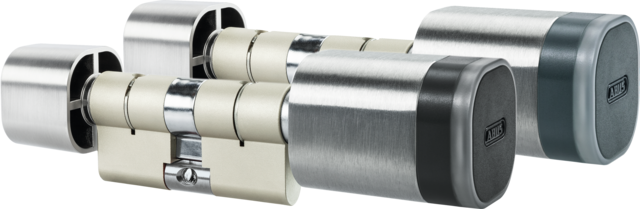

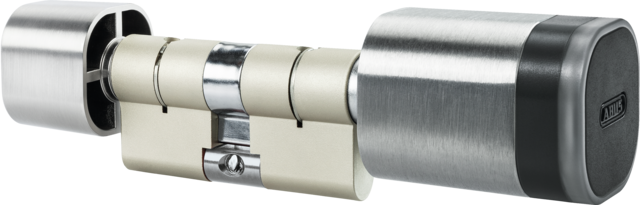

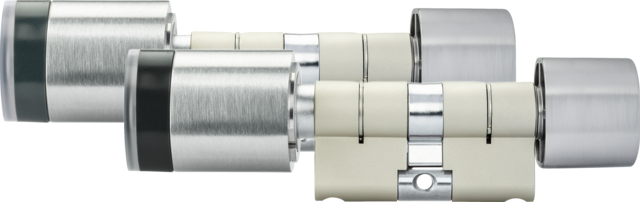

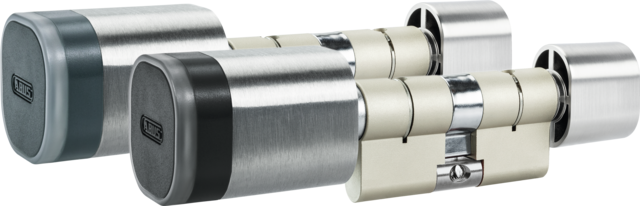

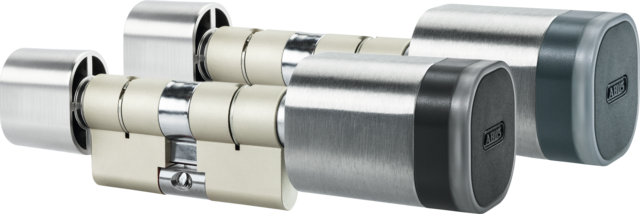

WLX Pro double knob cylinder, reader outside

Description

wAppLoxx Pro digital locking cylinder The digital locking cylinder from ABUS enables convenient access to your building. It is also compatible for online use and can be operated via app. As well as the standard version, it is also available in the following variants: cylinder with reader on both sides, half cylinder, padlock, panic version and a special version for fittings with core extraction protection. The colour of the wAppLoxx Pro cylinder can be adjusted for any door and surface with its white, grey or black covers. Extension modules also enable individual length adjustment to up to 90 mm on each side. High protection against manipulation with extra-reinforced drilling and pulling protection as well as a read-protected wireless connection highlight the security offered by the wAppLoxx Pro Cylinder. The weather-resistant finish with protection class IP67 makes it particularly robust.

WLX Pro Doppelknaufzylinder Leser außen
Awards & Partners
https://c1.abus.com/var/ImagesPIM/d110001/derivates/11/267/037/Abus_Bester_SmartHomeAnbieter_CD165074_logos.jpg
https://c1.abus.com/var/ImagesPIM/d110001/derivates/11/267/037/Abus_Bester_SmartHomeAnbieter_CD165074_logos.jpg
Awards & Partners

Product advantages

  • Electronic double knob cylinder with Mifare reader: Read protected wireless connection between transponder and cylinder (Mifare Desfire EV1 in secure mode)
  • Individual length adjustment of up to 90 mm each side with extension modules
  • Encrypted AES 128 bit data transfer between all components
  • Logging of cylinder operation
  • High manipulation resistance with extra-reinforced drilling and pulling protection
  • Weather-resistant as per IP 67
  • A range of design options thanks to wide selection of colours and knobs
  • The status of the cylinder battery can be checked at any time via web or app
  • Activation/deactivation of connected alarm systems

Downloads

General downloads:

Declarations of conformity:

Additional information:

Software:
Auxiliary programs:

Firmware:

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging
Specifications
Additional functions: Opening time can be set between 6 and 12 sec, remote access
Area of application: Doors with a PZ mortise lock, multiple locking
Backset: 35 mm
Battery - type: VARTA CR2 / CR17355 3V lithium battery
Colour: Colour options for reader: black, grey
Dimensions: External knob: L = 48 mm, Ø = 38 mm, internal knob: L = 27 mm, Ø = 33 mm
Drill protection: Standard, Security
Electronics: Access, Intrusion
Environmental conditions: Min./max. temperature: -25/+65, max. air humidity: 80%
Item abbreviation: WLX-PRO-LA
Language of instructions: DE, ES, FR, NL, EN
Language packing: DE, ES, FR, NL, EN
Length adjustment: Modular in 5 mm increments
Locking media: ABUS Mifare Desfire EV1
Logging and time function: Yes
Material: Knob: stainless steel, Reader: plastic
Max. number of locking media: 500 authorisations, 10 fallback transponders
Number of cycles/battery: 45.000
OSD language: DE, ES, FR, NL, EN
Opening time can be set: Yes
PSTI conformity required: No
Panic door: No
Programming: Configuration and system administration via wAppLoxx Pro Control
Protection class IP Outdoor: 67
Radio frequency: 868,3 MHz
Reader type: Outdoor Mifare reader
Reading distance: < 1 cm
Signalling: Optical
