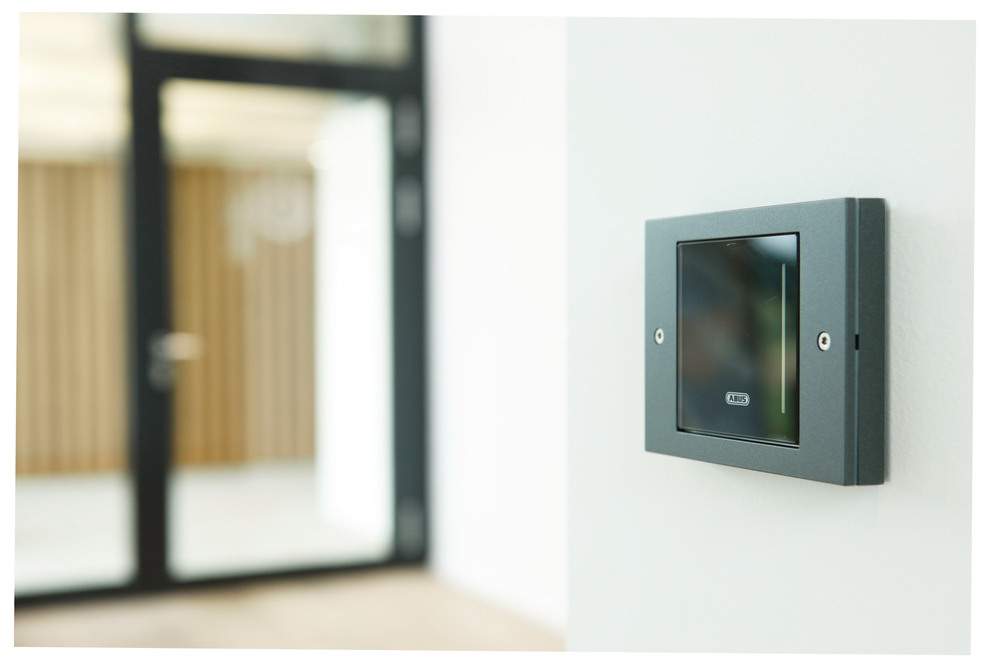

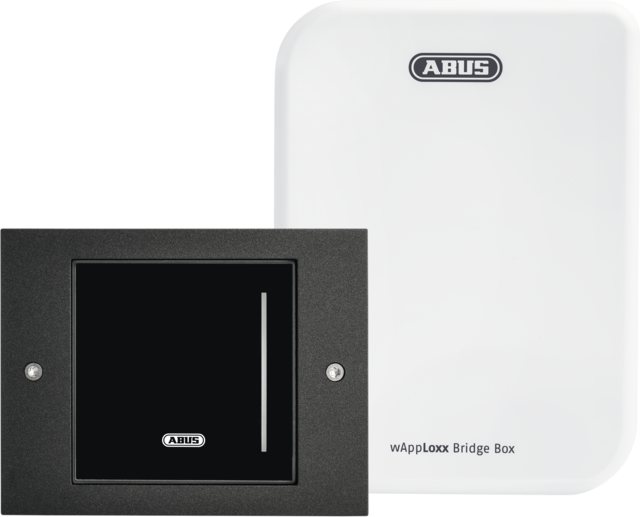

WLX Pro Wall Reader-Set Access black WLX Pro Bridge Box Access WLX Pro Wall Reader IP44 black

WLX Pro Wall Reader-Set IP44 Access black


The wAppLoxx Pro wall reader ideally expands the areas of application of the digital access system to include locking and control technology. Electronic door openers, motor locks, electronic barriers or gates: the wall reader reliably controls all important access points. The special added value: As part of the wAppLoxx Pro system, the wall reader can be accessed via app - this means that, for example: electronic garage doors or motorised locks already in place can be controlled smartly and at any time via app - even when on the move*. The high-quality and scratch-resistant glass front is used to identify access authorisations by reading the locking medium and gives the user feedback with visual and acoustic signalling.

Individual component

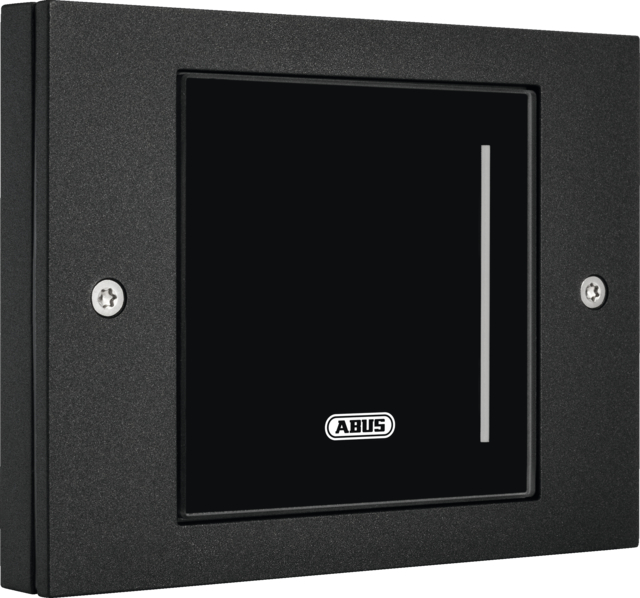

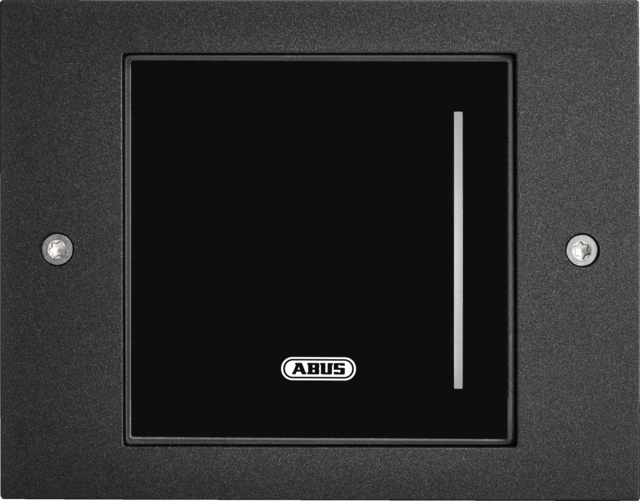

WLX Pro Wall Reader IP44 black
Panel & Sets
WLX Pro Wall Reader IP44 black
  • Ideal complement to the wAppLoxx Pro system
  • High quality and scratch resistant glass front
  • Identification of access authorizations by reading the locking medium
  • Visual and audible signaling or function display
  • GIRA TX44 frame (included) suitable in the colors black or white

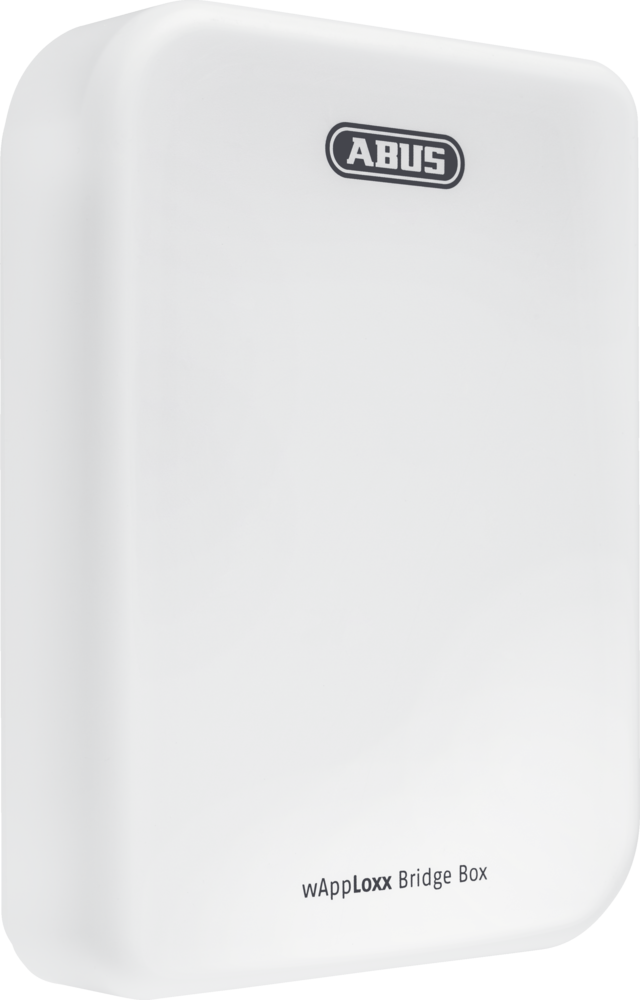

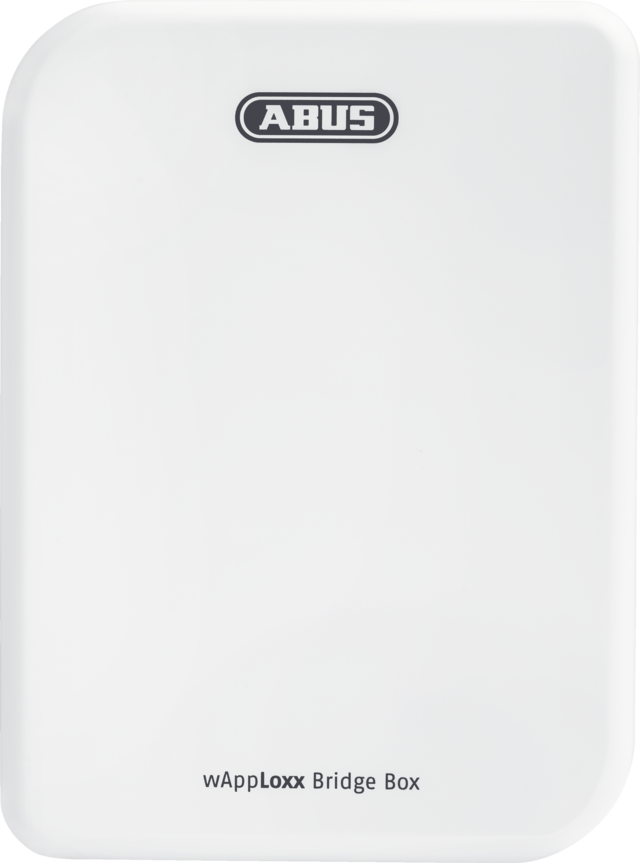

WLX Pro Bridge Box Access
Panel & Sets
WLX Pro Bridge Box Access
  • Ideal for controlling electronic door and gate operators, door buzzers, elevators, barriers, rolling grilles, turnstiles
  • Control unit for the wAppLoxx Pro Wall Reader
  • High level of protection against tampering due to separate mounting from the reader unit in the secured interior area
  • Arming and disarming of intrusion detection systems (intrusion variant)
  • Encrypted AES 128-bit data transmission to the wAppLoxx Pro Wall Reader via BUS
  • Encrypted AES 128-bit wireless data connection to the wAppLoxx Pro Control
  • External input enables switching of a relay e.g. for switches, pushbuttons, ...
  • Further jumper settings e.g. control of the 2nd relay in case of sabotage, mute circuit Wall Reader, pulse, delay, …
  • Industrial variant (standard ELS TK PC housing) for commercial use with IP66 protection class

Product advantages

  • Ideal for controlling electronic door and gate drives, door openers, lifts, barriers, rolling grilles, turnstiles
  • Wall Reader RFID reading unit with encrypted BUS connection to control unit (wAppLoxx Pro Bridge Box)
  • High manipulation resistance thanks to separation of reading and control unit
  • Encrypted AES 128 bit data transfer between wAppLoxx Pro Wall Reader, Bridge Box and Control
  • Wall Reader: Elegant design in black with high-quality scratch-resistant glass
  • External input on the Bridge Box allows a relay to be switched, e.g. for switches, buttons, etc.
  • Other jumper settings, e.g. control of the 2nd relay in case of tampering, Wall Reader mute switching, pulse, delay, etc.
  • BUS cable (5-core) already included in the scope of delivery with the reader (6m)
  • Optical and optional alarms


We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging
Item abbreviation: WLX-PRO-Set-WR-A-S
Locking media: Mifare DESfire EV1, Mifare DESfire EV2, Mifare Classic
PSTI conformity given: Yes
PSTI conformity required: Yes
Programming: Configuration and system administration via wAppLoxx Pro Control
