4x analog HD signal distributor

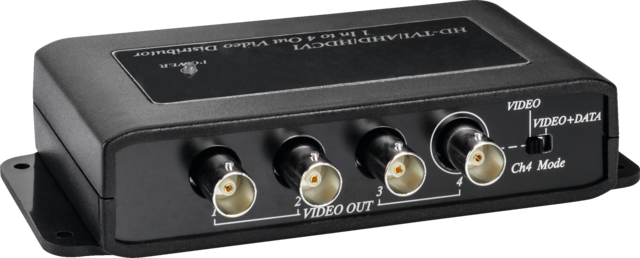

Use the 4x analog HD signal distributor to transmit the video input signal without loss to four monitors. Connect your camera to the signal distributor's video input and connect the monitors to the video outputs. Four BNC video outputs are provided.

For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

Product advantages

  • Supports high resolutions up to 8MPx (4K) without video loss
  • Transmission of a video signal to up to four monitors or recorders
  • Suitable for HD-TVI, AHD, HDCVI, 960H, NTSC, PAL
  • Channel 4 supports HD video + data control signal (UTC - Up The Coax)



We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging
DC voltage supply: 12 V
Dimensions: (W x H x D) 138 x 30 x 86 mm
Height: 30 mm
Language of instructions: DE, GB
Language packing: DE, GB, FR, NL, DK, IT
Length: 86 mm
Max. humidity: 95 %
Max. operating temperature: 55 °C
Min. operating temperature: 0 °C
Net weight: 0,14 kg
Power consumption: 110 mA

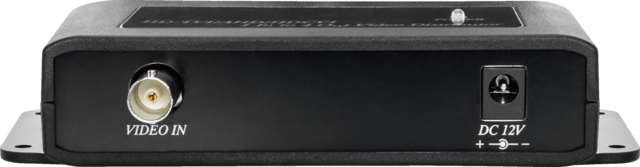

Video input: 1 BNC
Video input impedance: 75 Ω
Video input level: 1 Vpp dB

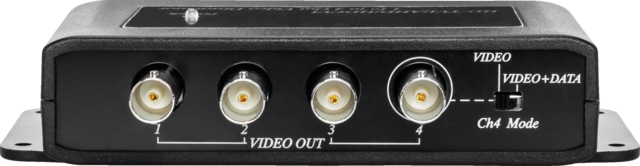

Video output: 4 BNC
Video output level: 1 Vpp
Video system: HD-TVI, HD-CVI, AHD, 960H, NTSC, PAL
Width: 138 mm
