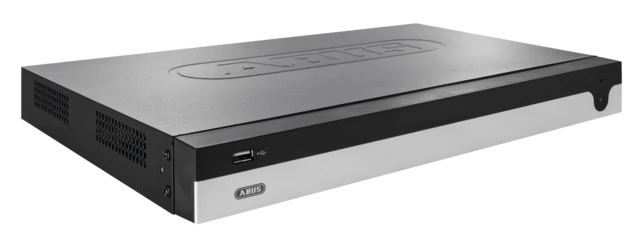

8-channel analog HD video recorder

Professional surveillance centre for 8 analogue HD cameras. Simple connection to the BNC inputs via coaxial cables. Without network or software. If required: integration of 2 IP cameras via Ethernet.

Description

Simple installation following the plug & play principle
The ABUS-designed 8-Channel Analogue HD Video Recorder ensures that every recording solution is ready to use straight away – whether it be a retrofitting or a new project set-up with analogue HD technology. Video images can be provided in real-time and for recording as soon as the connection between the camera and recorder is set up using a coaxial or 2-wire connection (accessory: 2-Wire Analogue HD Transmission Set).

Storage space is doubled thanks to data compression
The compression of the incoming image data using H.265 technology uses storage space twice as efficiently. Up to two 10 TB hard disk drive capacity can be installed, ensuring sufficient storage capacity is made available for sustained recording and any application.

Ultra HD HDMI and USB 3.0
The Ultra HD HDMI connection makes monitoring with no loss of data possible for connected cameras. This ensures the full, high resolution of the analogue HD cameras is used. Quicker data export is also ensured with the USB 3.0 connection.

Very easy and intuitive operation
Various modes of operation are available with the analogue HD recorder. The video data can be evaluated using a local monitor, browser, the intuitive ABUS CMS software or via the ABUS Link Station App for Android/iOS.

Automatic object detection
The recorder reliably distinguishes relevant movements (people, vehicles) from disruptive influences (twigs, light, etc.) - and minimizes the number of unnecessary movement alarms.

Pentaplex support
Supports TVI (max 8 MPx), CVI (max 1080p), AHD, CVBS (PAL / NTSC) signals on all BNC inputs
Support of two additional IP channels up to max. 8 MPx
Compatible with ABUS IP cameras. See compatibility list in the download area.

For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

Awards & Partners
This product is compatible with the ABUS Link Station App.
This product is compatible with the ABUS Link Station App.
Awards & Partners

Product advantages

  • Pentaplex support: recording and live display of all channels up to 8 MPx (selected ABUS IP cameras, TVI, CVI, AHD, CVBS)
  • Use storage space twice as efficiently: Data compression with H.265
  • Ultra HD HDMI connection for loss-free viewing of connected cameras on a 4K monitor
  • Ideal for retrofitting of existing systems to a higher resolution
  • Long cable lengths up to a maximum of 500 m
  • USB 3.0 interface for fast data export
  • Permanent recording: 2x HDD up to 10TB
  • Easy to operate: can be controlled via local monitor, Browser, app or ABUS CMS software
  • Support for max. 2 IP cameras

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging
Specifications
AC voltage supply: 100 - 240 V
Alarm inputs (NO/NC): 8
Alarming: Acoustic warning, OSD signal, email
Analogue video channels: 8
Audio: Line In: 4 x RCA (2,0 V p-p, 1000 Ω), Audio Out: 1 x RCA (1000 Ω)
Audio bitrate: 64 kbit/s
Audio compression: G.711u
Battery - GRS type: CR1220 / AAA
Battery - type: CR1220 / AAA
Camera inputs: 8 x BNC (HD-TVI, HD-CVI, AHD, Analog CVBS)
Camera outputs: 1 x BNC (Analog CVBS)
Compatible with ABUS Link Station: Yes
Control: Mouse, PC software, integrated web server
DDNS: Yes
Dimensions: 380 x 320 x 48 mm
HD-SDI video channels: 0
HD-TVI video channels: 8
HDMI Out: Yes
Height: 48 mm
IP video channels: 2
Length: 320 mm
Loi Sarkozy compliant (only valid for FR): Yes
Max. humidity: 90 %
Max. operating temperature: 55 °C
Min. operating temperature: -10 °C
Mobile access: ABUS Link Station Lite / Pro (Apple iOS & Android)
Monitor outputs: 1 x HDMI, 1 x VGA, 1 x Main BNC
NTP: Yes
Net weight: 1,16 kg
Network access: 1 x RJ45 10/100/1000 Mbps
Network cameras: See compatibility list in the download area
Network protocols: TCP/IP, PPoE, DHCP, DNS, DDNS, NTP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS
Number of HDDs: 2
OSD language: Deutsch, Englisch, Französisch, Niederländisch, Dänisch, Italienisch
Operating mode: Triplex
PSTI conformity given: Yes
PSTI conformity required: Yes
PTZ control: Coax
Power consumption: 20 W
Pre/post alarm memory: 0-2 / 5-900
Recording bitrate: 32 Kbit/s up to 10 Mbit/s
Recording modes: VCA (tripwire, intrusion detection), motion detection, alarm, motion detection and alarm, motion detection or alarm, time schedule, manual
Recording resolution @ frame rate per camera: 2MPx @ 25 frames/s, 3MPx @ 18 frames/s, 8MPx @ 8 frames/s
Relay output: 4
Resolution HDMI output: 4k (3840 x 2160) / 30 Hz, 2K (2560 x 1440) / 60 Hz, 1920 x 1080 / 60 Hz, 1280 x 1024 / 60 Hz, 1280 x 720 / 60 Hz, 1024 x 768 / 60 Hz
Resolution live view: VGA: 1920 x 1080 / 60 Hz, 1280 x 1024 / 60 Hz, 1280 x 720 / 60 Hz, 1024 x 768 / 60 Hz HDMI: 4k (3840 x 2160) / 30 Hz, 2K (25960 x 1440) / 60 Hz, 1920 x 1080 / 60 Hz, 1280 x 1024 / 60 Hz, 1280 x 720 / 60 Hz, 1024 x 768 / 60 Hz
Sabotage monitoring video: Yes
Search modes: Smart search, VCA, event, date & time
Simultaneous network access: 64 channels
Software: ABUS CMS software
Storage: 1 x USB 2.0, 1 x USB 3.0
Storage medium: 2 x SATA HDD (max. 10 TB)
Technology: AHD, CVBS, HD-CVI, HD-TVI, IP
Total frame rate (PAL): 200 fps
Total network throughput (input/output): 128Mbit (0 Mbit / 128Mbit)
Total video channels: 10
User levels: 2
Video compression: H.265
Views: 1 / 4 / 6 / 8 / 9
Watchdog hardware: Yes
Web server: Yes
Width: 380 mm
