8-channel analog HD video recorder

Professional surveillance centre for 8 analogue HD cameras. Simply connected via coax cable to the BNC inputs. Without network or software. If required: integrate 2 IP cameras via Ethernet.

Description

HDCC90012

Easy installation and immediate start-up
The ABUS 8-channel analogue HD video recorder enables uncomplicated setup according to the plug & play principle. Ideal for retrofitting or for new security projects with analogue HD technology. The connection is realised via coaxial cable or via an optional 2-wire analogue HD transmission set – the live image and recording are available in real time.

Efficient storage solution with H.265 compression
With modern H.265 video compression, storage space is used efficiently – twice the recording time with the same quality. The recorder supports up to two hard drives with up to 12 TB each, i.e. a total of up to 24 TB storage capacity for seamless video surveillance

Highest image quality via Ultra HD HDMI
The integrated Ultra HD HDMI connection guarantees loss-free image output in full resolution. Up to 8 channels can be played back synchronously. With the USB 3.0 connection, data can be exported quickly – ideal for preserving evidence.

Intuitive operation – local and mobile
The video data is analysed directly on the monitor, via a web browser, via the user-friendly ABUS CMS software or with the ABUS Link Station app for Android and iOS when out and about. Everything in view at all times – even on the move.

Intelligent motion detection with object recognition
By automatically differentiating between people, vehicles and disturbing influences such as light reflections or moving branches, the recorder significantly reduces unnecessary false alarms.

Maximum compatibility with Pentaplex support
TVI (up to 8 MPx), CVI (up to 8 MPx), AHD (up to 5 MPx) and FBAS/CVBS (PAL/NTSC) are supported at all BNC inputs. In addition, two IP channels up to 8 MPx can be integrated – ideal for hybrid or modernised surveillance solutions.

For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

Product advantages

Pentaplex support: Recording and live display of all channels up to 8 MPx (selected ABUS IP cameras, TVI, CVI, AHD, CVBS)
Use storage space twice as efficiently: Data compression with H.265
4K Ultra HD HDMI connection for lossless viewing of connected cameras on a 4K monitor
Perfect for upgrading existing systems to higher resolution
Supports cable lengths of up to 500 m (RG6 cable, 720p resolution)
USB 3.0 interface for fast data export
Permanent recording: 2x HDD up to 12TB
Easy to operate: control via local monitor, browser, app or ABUS CMS software
2-way audio and alarm flashing light function possible in combination with HDCC52512 / HDCC32512
Support for a maximum of 2 IP cameras

Downloads

General downloads:

Additional information:

Software:
Firmware:

Firmware (V4.28.000_240131)

Auxiliary programs:

Installation software:

Recycling

We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging

Specifications

AC power supply:	100 - 240 V
Alarm generation:	Acoustic warning, OSD signal, email
Alarm inputs (NO/NC):	8
Audio:	Line In: 4 x RCA (2,0 V p-p, 1000 Ω), Audio Out: 1 x RCA (1000 Ω)
Audio bit rate:	64 kbit/s
Audio compression:	G.711u
Battery - GRS type:	CR1220 / AAA
Battery type:	CR1220 / AAA

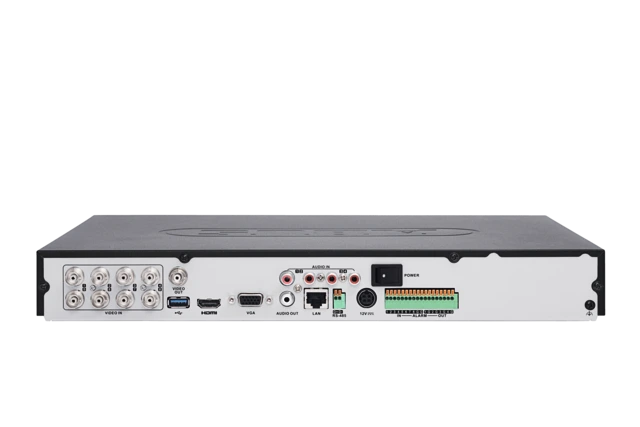

Camera inputs:	8 x BNC (HD-TVI, HD-CVI, AHD, Analog CVBS)
Camera outputs:	1 x BNC (Analog CVBS)
Compatible with ABUS Link Station:	Yes
Compatible with wAppLoxx Pro:	No
Construction type of device:	Other
Control unit:	Mouse, PC software, integrated web server
DDNS:	Yes
Data backup:	1 x USB 2.0, 1 x USB 3.0
Depth:	320 mm
Dimensions:	380 x 320 x 48 mm
HDMI Out:	Yes
Hardware Watchdog:	Yes
Height:	48 mm
Language OSD:	Deutsch, Englisch, Französisch, Niederländisch, Dänisch, Italienisch
Length:	320 mm
Loi Sarkozy compliant (only valid for FR):	Yes
Max. Air humidity:	90 %
Max. Operating temperature:	55 °C
Max. number of control feeds:	8
Max. number of video feeds:	8
Min. operating temperature:	-10 °C
Mobile access:	Yes
Monitor outputs:	1 x HDMI, 1 x VGA, 1 x Main BNC
NTP:	Yes
Net weight:	2.43 kg
Network cameras:	See compatibility list in the download area
Network connection:	1 x RJ45 10/100/1000 Mbps

Network protocols:	TCP/IP, PPoE, DHCP, DNS, DDNS, NTP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS
Number of HDDs:	2
Operation mode:	Triplex
PSTI conformity given:	Yes
PSTI conformity needed:	Yes
PTZ control:	Coax
Power consumption:	20 W
Pre/post-alarm memory:	0-2 / 5-900
Product group:	Recording solution
Recording bit rate:	32 Kbit/s up to 10 Mbit/s
Recording modes:	VCA (tripwire, intrusion detection), motion detection, alarm, motion detection and alarm, motion detection or alarm, time schedule, manual
Relay output:	4
Resolution HDMI output:	4k (3840 x 2160) / 30 Hz, 2K (2560 x 1440) / 60 Hz, 1920 x 1080 / 60 Hz, 1280 x 1024 / 60 Hz, 1280 x 720 / 60 Hz, 1024 x 768 / 60 Hz
Resolution live view:	VGA: 1920 x 1080 / 60 Hz, 1280 x 1024 / 60 Hz, 1280 x 720 / 60 Hz, 1024 x 768 / 60 Hz HDMI: 4k (3840 x 2160) / 30 Hz, 2K (25960 x 1440) / 60 Hz, 1920 x 1080 / 60 Hz, 1280 x 1024 / 60 Hz, 1280 x 720 / 60 Hz, 1024 x 768 / 60 Hz
Resolution recording @ frame rate per camera:	2MPx @ 25 frames/s, 3MPx @ 18 frames/s, 8MPx @ 8 frames/s
Search modes:	Smart search, VCA, event, date & time
Simultaneous network access:	64 channels
Software:	ABUS CMS software
Storage medium:	2 x SATA HDD (max. 10 TB)
Tamper monitoring video:	Yes
Total frame rate (PAL):	200
Total network throughput (input/output):	128Mbit (0 Mbit / 128Mbit)
Total video channels:	10
User levels:	2
Video channels HD-SDI:	0
Video channels HD-TVI:	8
Video channels IP:	2
Video channels analog:	8
Video compression:	H.265
Video motion detector included:	Yes
Views:	1 / 4 / 6 / 8 / 9
WEEE group:	09
Web server:	Yes
width:	380 mm
