CCTV Performance Power Supply 3 A

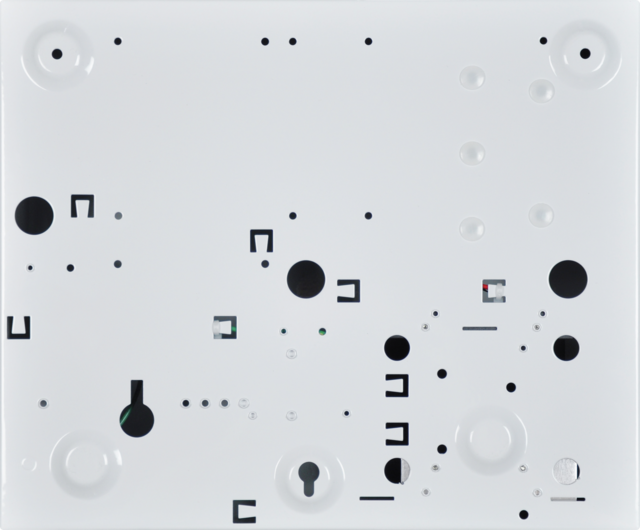

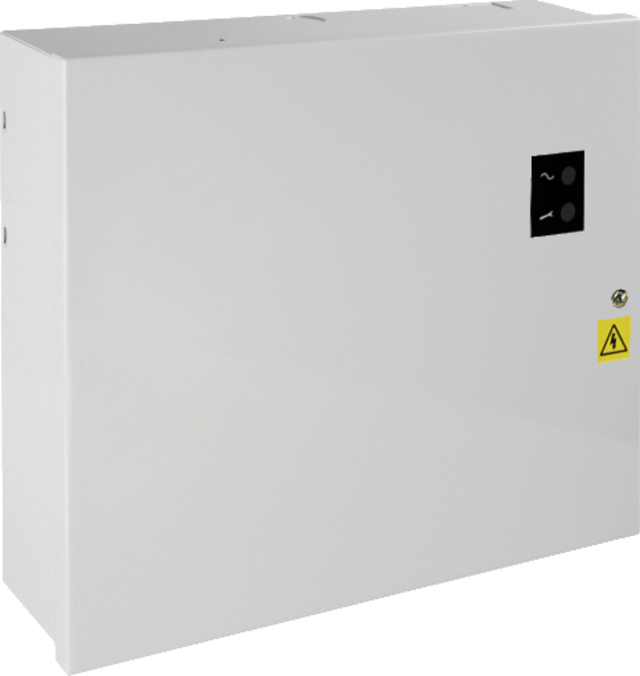

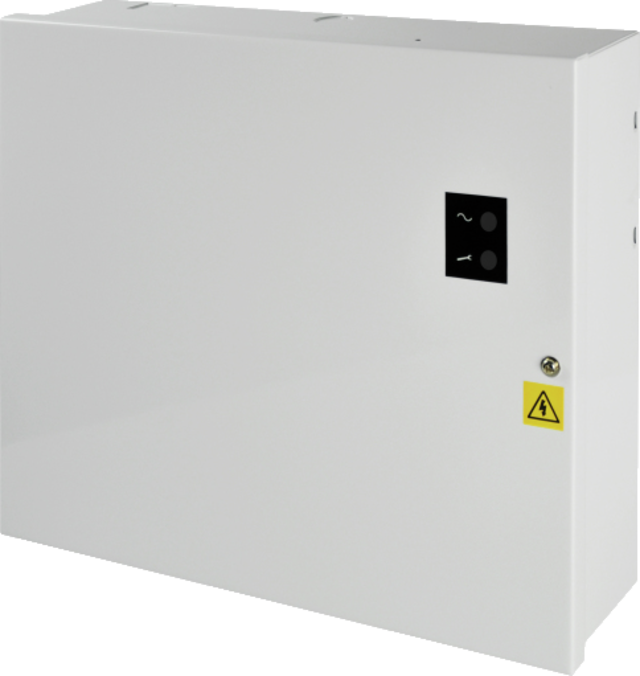

The CCTV performance power supply transforms 230 VAC into 13.8 VDC. It is therefore ideal to serve as central power supply station for video surveillance systems. The device provides 8 separate connections. The CCTV performance power supply works with both 230 V AC mains power and a 12V/7Ah standby battery (BT2070). The charging electronics for the battery is integrated in the robust metal housing of the CCTV power supply unit. The output current (nominal current) is 3 A. This switching power supply is low in power consumption and high in efficiency. The performance power supply unit is designed for indoor use. A lid contact allows monitoring the device and protecting it from potential tampering activities. Pre-cut perforations on the side of the housing enable customized openings for tidy wiring. The LED control indicator informs you constantly about the state of the power supply unit. The 8 outputs are individually fused and protected from overload and short-circuit.

For safe and proper operation, this device must be installed and regularly maintained by a professional trained by us. Arrange regular maintenance appointments with your installer to ensure trouble-free operation in the long term with the latest security updates and new functions.

Product advantages

  • Regulated 13.8 V DC output signal
  • Electronic overload protection
  • Additional 1.0 charging current for backup battery (with holding charge)
  • LED control indicators for mains and fuse
  • Rugged metal housing



We have summarised for you which disposal information is important in your country.

Disposal & labelling of packaging
AC voltage supply: 230 V
Charging electronics: 12 / 7 V/Ah
Dimensions: (W x H x D) 338 x 281 x 86 mm
Emergency battery: BT2070 (optional)
Height: 281 mm
Housing material: metal
Length: 86 mm
Material type: Metal housing
Net weight: 3,26 kg
Operating current: 3.000 mA
Output: 3
Output voltage DC: 13,4 – 14,2 on main supply / 10,0 – 12,3 battery supply V
Sabotage monitoring: Cover switch
Width: 338 mm
